JBL Professional AM7315/64 15" High Power 3-Way Loudspeaker, Black

SKU: AM731564 MPN: AM7315/64 JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

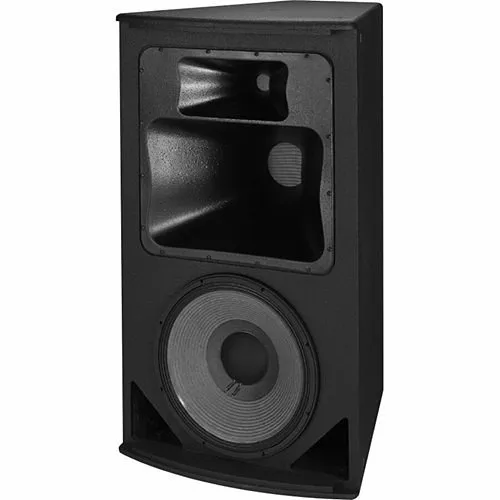

Image of JF-AM731564B
Product images for JBL Professional AM7315/64 15" High Power 3-Way Loudspeaker, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • High-impact 800W RMS power for sustained, room-filling output that keeps music and announcements crisp at high SPLs
  • 3-way design with a 15" Differential Drive low-frequency driver and 108dB sensitivity for tight bass and clear vocal projection
  • Rotatable PT Progressive Transition waveguide with controlled 60° x 40° coverage for flexible horizontal or vertical mounting and predictable directivity
  • Rugged birch-plywood enclosure, perforated steel grille and M10 suspension points for reliable installed-system rigging and long service life
  • Low-distortion CMCD mid driver and high-slope crossover enhance speech intelligibility and long-throw performance—ideal for live sound, monitoring and security audio systems

Quick Specifications

Product Model
AM7315/64
Brand Name
JBL Professional
Product Name
AE AM7315/64 Speaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Deliver powerful, intelligible sound for large rooms and fixed installations with the JBL Professional AM7315/64 15" High Power 3-Way Loudspeaker. Built for pro audio applications, this JBL Professional speaker combines a 15" Differential Drive low-frequency driver, CMCD mid compression driver and high-frequency compression driver to produce a wide, accurate frequency response (45 Hz–18 kHz) and 800W RMS handling. With a high 108 dB sensitivity and a rotatable PT waveguide offering controlled 60° x 40° coverage, the AM7315/64 provides predictable directivity for auditoriums, performing arts centers, clubs and stadiums. The high-slope crossover and low midrange distortion improve clarity at long throw, making this cabinet an excellent choice for FOH reinforcement, monitoring and installed sound in venues where security, surveillance and public-address intelligibility matter. Housed in a durable birch plywood enclosure with M10 suspension points and available array hardware, it installs cleanly and performs reliably. For integrators and AV professionals seeking robust, high-output loudspeakers that also integrate into monitoring and security audio systems, the AM7315/64 is a versatile solution — contact sales to configure for your venue.

Features

  • High-impact 800W RMS power for sustained, room-filling output that keeps music and announcements crisp at high SPLs
  • 3-way design with a 15" Differential Drive low-frequency driver and 108dB sensitivity for tight bass and clear vocal projection
  • Rotatable PT Progressive Transition waveguide with controlled 60° x 40° coverage for flexible horizontal or vertical mounting and predictable directivity
  • Rugged birch-plywood enclosure, perforated steel grille and M10 suspension points for reliable installed-system rigging and long service life
  • Low-distortion CMCD mid driver and high-slope crossover enhance speech intelligibility and long-throw performance—ideal for live sound, monitoring and security audio systems
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name AE AM7315/64 Speaker
Product Type Speaker
Product Model AM7315/64
Product Series AE
Manufacturer Part Number AM7315/64
Technical Information
Material Birch Plywood, Foam, Perforated-steel
Impedance 8 ohms
Sensitivity 108dB
Speaker Size 15"
Crossover Type 3-way
Application/Usage Auditoriums, Dance Clubs, Live Clubs, Performing Arts Facilities, Sports Facilities, Theatrical Sound Design, Themed Entertainment Venues, Worship Facilities
Audio
RMS Output Power 800W
Maximum Frequency Response 18 kHz
Minimum Frequency Response 45Hz
Physical Characteristics
Size 15"
Color Black
Depth 25.9"
Width 22.1"
Height 38.1"
Weight 101lb
Warranty
Limited Warranty 5-Year
Miscellaneous
Country of Origin MX
