RDL AMS-TS1 Illuminated Touch-Activated Push Button
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 5
Key Features
- Provides intuitive, contactless control with capacitive touch for reliable operation in security and AV control panels
- Bicolor illumination offers clear active/inactive status at a glance, reducing operator errors in monitoring and surveillance environments
- Flexible Toggle, Momentary, or 125ms Pulse modes adapt to door control, alarm reset, or cueing functions without extra programming
- Built-in controller with dual open-collector outputs eliminates need for an external processor, simplifying system integration
- Standard D-style mounting and 24 Vdc operation make it easy to retrofit into existing racks, panels, and RDL AMS frames
Quick Specifications
- Product Model
- AMS-TS1
- Brand Name
- Radio Design Labs
- Product Name
- AMS-TS1 Illuminated Touch-Activated Pushbutton
- Product Type
- Pushbutton
Product Information Tabs
Overview

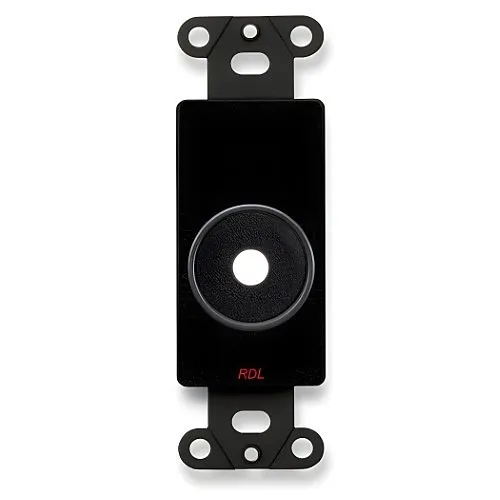

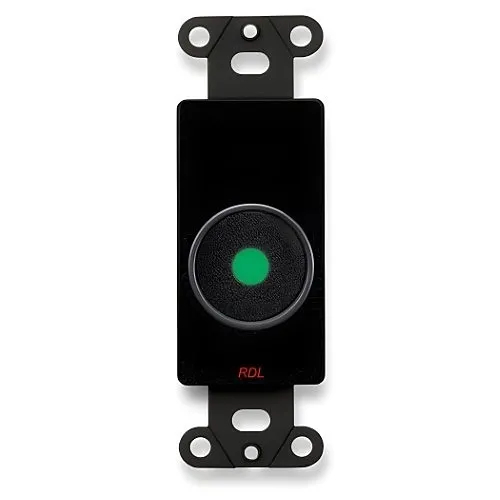

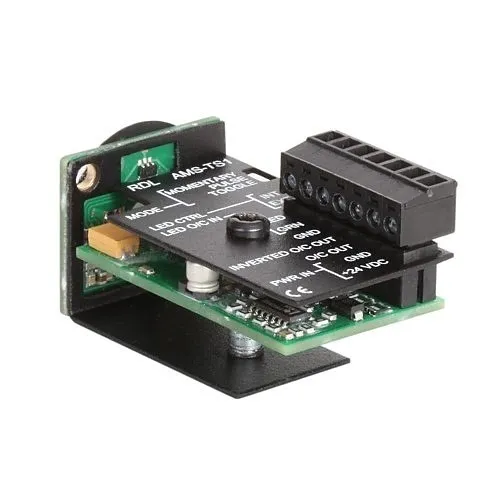

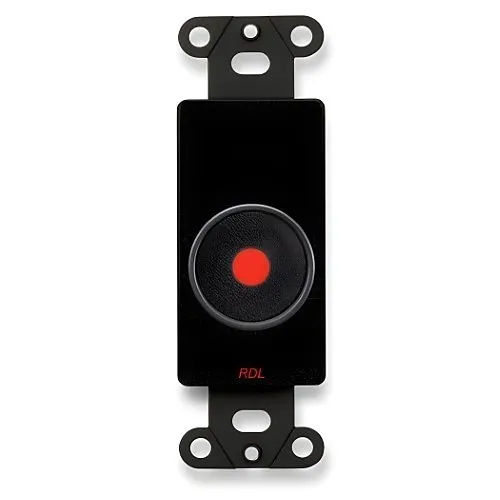

Optimize panel control and user feedback with the Radio Design Labs AMS-TS1 illuminated touch-activated pushbutton. Designed for security, surveillance, monitoring and AV applications, this capacitive touch switch delivers contactless, professional-grade control and clear bicolor status indication so operators can see active or inactive states at a glance. The AMS-TS1 operates from ground-referenced 24 Vdc and includes an integral controller with dual open-collector outputs, so it can drive local equipment or be interfaced to external logic without an added processor. Choose between Toggle, Momentary or a 125 ms Pulse mode to support door-release, alarm reset, call-for-service, or cueing workflows. The front-center LED defaults to green for active and red for inactive, and indicator sources can be set to internal or external control for flexible system design. Compact D-style mounting fits standard cutouts and RDL AMS frames for fast retrofit or OEM installation. Add reliable, low-profile touch control to your next security or AV panel—order the AMS-TS1 for streamlined integration and clear operator feedback.
Features
- Provides intuitive, contactless control with capacitive touch for reliable operation in security and AV control panels
- Bicolor illumination offers clear active/inactive status at a glance, reducing operator errors in monitoring and surveillance environments
- Flexible Toggle, Momentary, or 125ms Pulse modes adapt to door control, alarm reset, or cueing functions without extra programming
- Built-in controller with dual open-collector outputs eliminates need for an external processor, simplifying system integration
- Standard D-style mounting and 24 Vdc operation make it easy to retrofit into existing racks, panels, and RDL AMS frames
| General Information | |
|---|---|
| Brand Name | Radio Design Labs |
| Manufacturer | Radio Design Labs, Inc |
| Product Name | AMS-TS1 Illuminated Touch-Activated Pushbutton |
| Product Type | Pushbutton |
| Product Model | AMS-TS1 |
| Manufacturer Part Number | AMS-TS1 |
| Environmental Conditions | |
| Operating Temperature (T-T) | 0-122°F |
| Physical Characteristics | |
| Color | Green, Red |
| Depth | 2.3" |
| Width | 1.24" |
| Height | 1.23" |
| Package Type | Box |
| Miscellaneous | |
| Features | Activated by Finger Contact of a User, Bicolor Illuminated Capacitive Touch Switch, Functions Without an External Controller, Green Indicator Illuminates when Output is Active, Indicator Color Controlled by Internal Circuitry or Remote Equipment, Integral Controller with Open Collector Outputs, Mounts in all RDL AMS Mounting Frames, Mounts in D-Style Standard Cutouts, Red Indicator Illuminates when Output is Inactive, Toggle, Momentary or Pulse Mode Operation |
