IV&C AMZ-3041-2-12 Hazardous Area Compact Analog Camera, 12VDC, Fixed
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- ATEX-certified rugged design for safe, continuous surveillance in hazardous locations, reducing downtime and compliance risk
- Ready for simple installation with 12 VDC power and coax video—integrates with existing analog infrastructure or an external encoder for IP monitoring
- Day/night CMOS sensor with wide dynamic range delivers clear 720p HD images in low light and high-contrast scenes for reliable incident review
- IP66 weatherproof housing and -40° to 60°C operation protect critical assets outdoors and indoors in extreme environments
- Wall-mount ready compact form factor saves space while providing robust, tamper-resistant monitoring for industrial security
Quick Specifications
- Product Model
- AMZ-3041-2-12
- Brand Name
- Industrial Video & Control
- Product Name
- Rugged Fixed Analog Camera
- Product Type
- Surveillance Camera
Explore the details
Product information
AMZ-3041-2-12
Overview

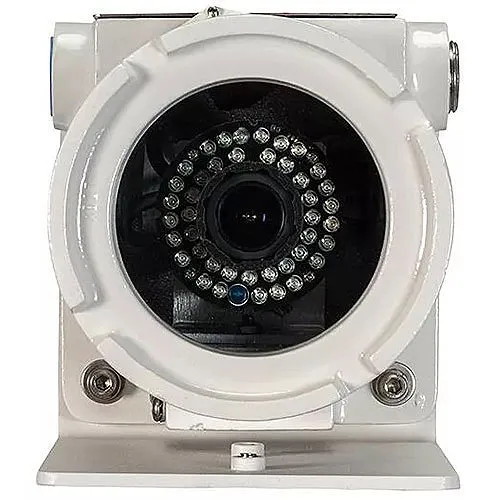

Built for dependable security and continuous monitoring in extreme and classified environments, the Industrial Video & Control AMZ-3041-2-12 hazardous area box camera delivers rugged analog surveillance where safety and reliability matter most. This fixed, day/night surveillance camera combines a CMOS sensor and wide dynamic range to produce clear 1280x720 HD imagery, even in low-light conditions down to 0.3 lux. Certified to ATEX, CSA and UL hazardous-area standards and rated IP66, the cast-aluminum enclosure keeps the camera operational from -40° to 60°C, protecting critical operations against weather, dust and explosive atmospheres.
Powered by 12 VDC and using a standard coax video connection, the AMZ-3041-2-12 simplifies integration with existing analog systems; add a video encoder to enable IP-based monitoring and remote management. The compact, wall-mount-ready design minimizes installation footprint while offering tamper-resistant security for oil & gas, chemical plants, utilities and other industrial sites. For secure, certified surveillance in hazardous areas, request a quote or contact our sales team to discuss deployment and integration options.
Features
- ATEX-certified rugged design for safe, continuous surveillance in hazardous locations, reducing downtime and compliance risk
- Ready for simple installation with 12 VDC power and coax video—integrates with existing analog infrastructure or an external encoder for IP monitoring
- Day/night CMOS sensor with wide dynamic range delivers clear 720p HD images in low light and high-contrast scenes for reliable incident review
- IP66 weatherproof housing and -40° to 60°C operation protect critical assets outdoors and indoors in extreme environments
- Wall-mount ready compact form factor saves space while providing robust, tamper-resistant monitoring for industrial security
| General Information | |
|---|---|
| Brand Name | Industrial Video & Control |
| Manufacturer | Industrial Video & Control Co. |
| Product Name | Rugged Fixed Analog Camera |
| Product Type | Surveillance Camera |
| Product Model | AMZ-3041-2-12 |
| Country of Origin | US |
| Manufacturer Part Number | AMZ-3041-2-12 |
| Technical Information | |
| Image Sensor | CMOS |
| Power Consumption | 8.4000W |
| Video Signal Format | NTSC, PAL |
| Connectivity Technology | Wired |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| Certifications | ATEX 2014/34/EU, CAN/CSA C22.2 No. 25, CSA STD CSA22.2 NO.30, EN 60079-0:2012+A11:203, EN 60079-1:2007, EN 60079-31:2014, UL STD 61010-1, UL1203 |
| Ingress Protection Rating | IP66 |
| Environmental Conditions | |
| Storage Temperature (T-T) | -49-149°F |
| Operating Temperature (T-T) | -40-140°F |
| Exposure | |
| Minimum Illumination | 0.3000lux |
| Physical Characteristics | |
| Color | White |
| Depth | 41.66cm |
| Width | 5.50" |
| Height | 5.50" |
| Dimensions | 5.50" H x 5.50" W x 8" D |
| Durability | Rugged |
| Product Information | |
| Mount Type | Wall Mount |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | Automatic White Balance, Day/Night, Rugged Design, Wide Dynamic Range |
| Indoor/Outdoor | Indoor, Outdoor |
