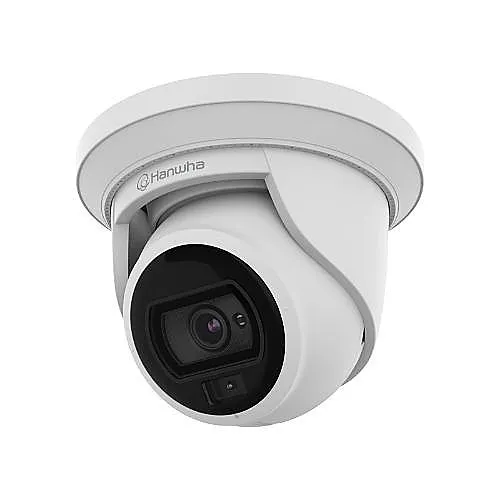

Hanwha ANE-L7012L Wisenet A Series 4MP Super-Compact White Light Flateye Camera, 3mm Lens, IP66, IK10
Image of 2
Key Features
- Compact, low-profile turret design for discreet indoor/outdoor surveillance
- 4MP (2560 x 1440) resolution and 3mm wide-angle lens for clear identification and broad coverage
- Built-in white light and 0.05 lux sensitivity for reliable color imaging in low-light conditions
- IP66 weatherproof and IK10 vandal-resistant housing to protect critical installations
- PoE connectivity and 30fps performance simplify installation and ensure smooth, real-time monitoring
- Intelligent analytics (WiseStream II, WDR 120dB, virtual line/area, motion/tamper detection) reduce false alarms and improve event detection
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 4MP Super-Compact White light Flateye Camera
- Product Type
- Flateye Camera

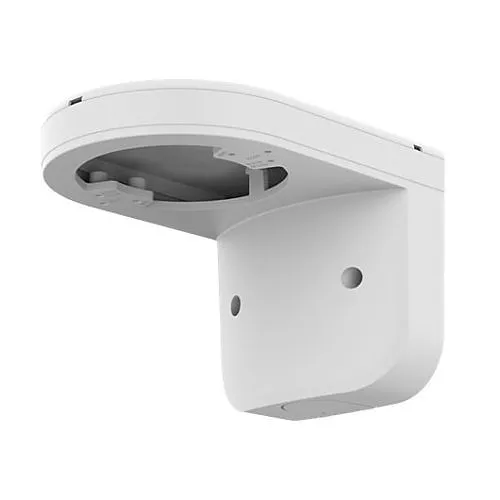

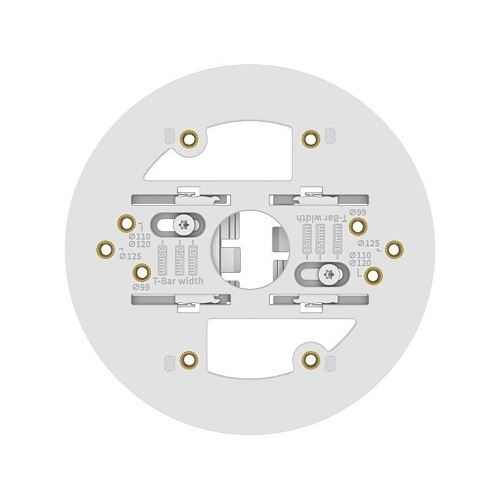

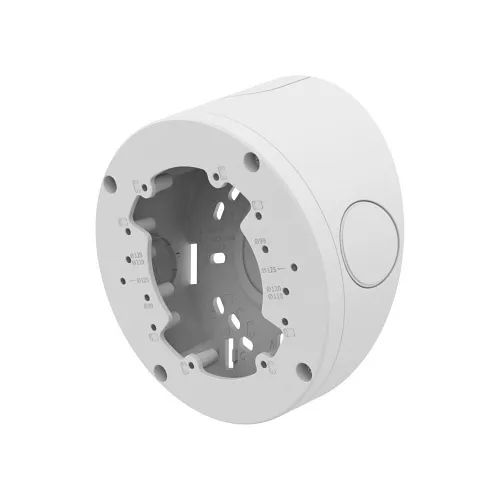

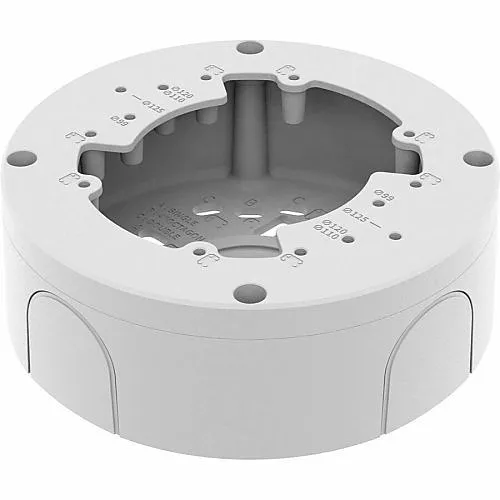

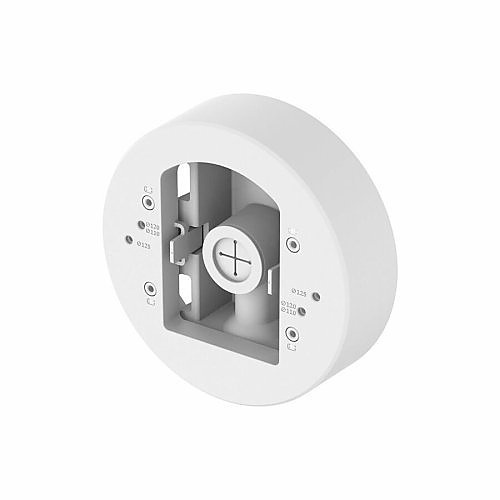

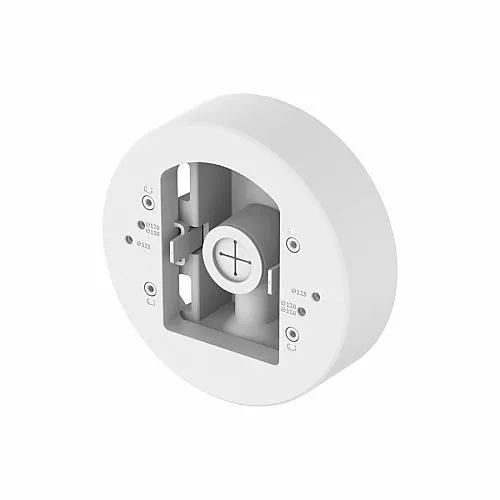

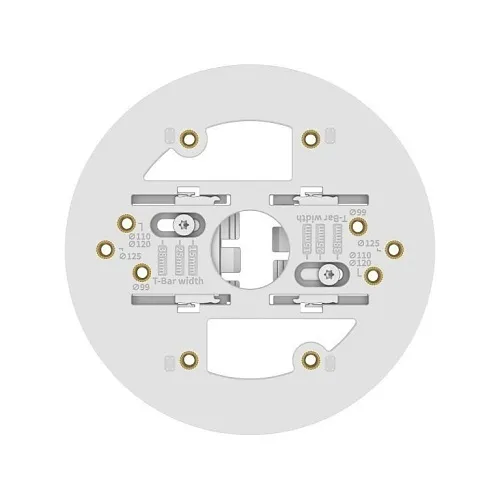

Frequently Bought Together
Hanwha ANE-L7012L Wisenet A Series 4MP Super-Compact White Light Flateye Camera, 3mm Lens, IP66, IK10
$145.73
12 items selected
Total: $1,565.04
Product Information Tabs
Overview
Engineered for reliable daytime and nighttime surveillance, the Hanwha Vision Wisenet A Series 4MP Super-Compact White Light Flateye Camera delivers high-resolution monitoring in a compact turret form factor. The 4MP (2560 x 1440) sensor captures detailed imagery at up to 30fps while the built-in 3mm fixed lens (approx. 97° H FoV) covers wide areas with minimal blind spots — ideal for entrances, retail floors, parking areas, and perimeter monitoring. Integrated white light and a minimum illumination of 0.05 lux preserve color video in low-light scenes, improving identification and evidence quality. Robust IP66 and IK10 ratings protect the camera from harsh weather and vandalism, and PoE support reduces installation time and infrastructure costs. Advanced features—WiseStream II compression, 120dB WDR, virtual line/area detection, and on-board microSD storage—streamline video management and lower bandwidth/storage demands. Designed for security-conscious businesses that need dependable, easy-to-deploy surveillance, this Wisenet A Series turret camera pairs with VMS platforms for scalable monitoring. Contact us to configure for your site or add to cart for quick deployment.
Features
- Compact, low-profile turret design for discreet indoor/outdoor surveillance
- 4MP (2560 x 1440) resolution and 3mm wide-angle lens for clear identification and broad coverage
- Built-in white light and 0.05 lux sensitivity for reliable color imaging in low-light conditions
- IP66 weatherproof and IK10 vandal-resistant housing to protect critical installations
- PoE connectivity and 30fps performance simplify installation and ensure smooth, real-time monitoring
- Intelligent analytics (WiseStream II, WDR 120dB, virtual line/area, motion/tamper detection) reduce false alarms and improve event detection
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4MP Super-Compact White light Flateye Camera |
| Product Type | Flateye Camera |
| Product Model | ANE-L7012L |
| Product Series | Wisenet A |
| Manufacturer Part Number | ANE-L7012L |
| Technical Information | |
| Lens Type | Fixed Focus |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 53° |
| Field of View (Horizontal) | 97° |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Minimum Illumination | 0.05 lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Lens | |
| Focal Length | 3mm |
| Lens Included | Yes |
| Maximum Focal Length | 3mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.37lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Turret |
| Product Information | |
| Diameter | 4.92" |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Features | ,, 30fps at all resolutions (H.265/H.264), 4 MP (2560 x 1440) resolution, Built-in 3mm fixed lens FoV H - 98.3°/V - 54.2°, H.265/H.264, MJPEG triple codec, Hallway View, WiseStream II support, Micro SD/SDHC memory slot (Max. 128GB), PoE powered, support, Virtual area (intrusion/enter/exit), virtual Line (crossing/ direction), motion detection, tampering, WDR (120dB) |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
