QSC AP-5122BK AcousticPerformance Series 2-Way, 550W, High Power Loudspeaker, Black

SKU: AP-5122-BK QSC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

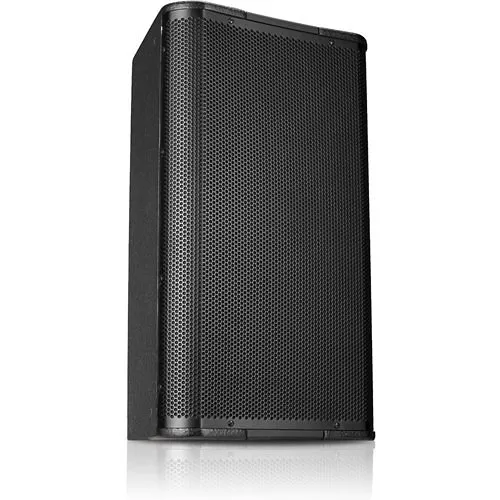

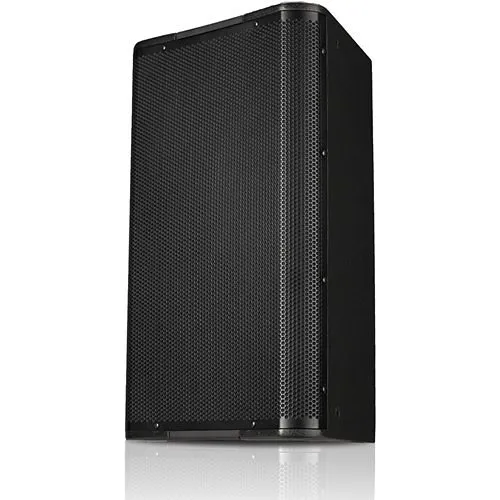

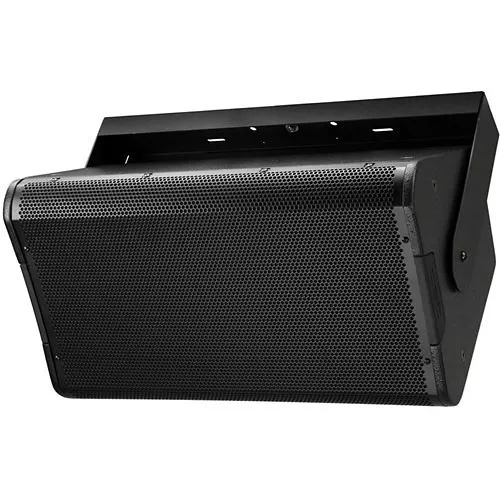

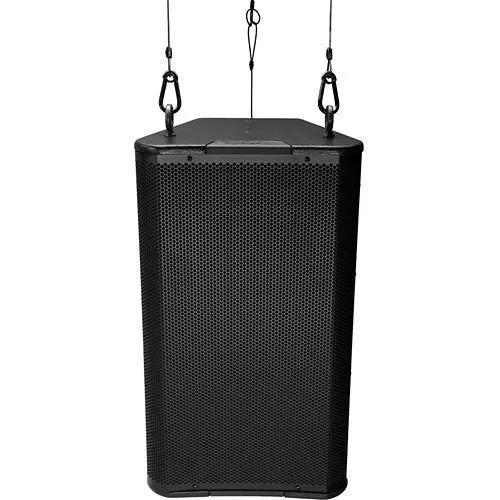

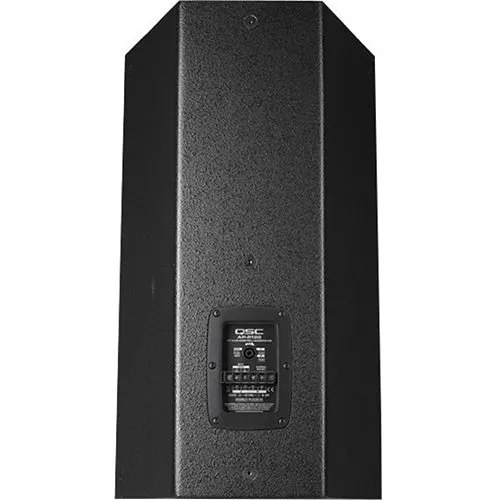

Image of QB-AP5122BK
Product images for QSC AP-5122BK AcousticPerformance Series 2-Way, 550W, High Power Loudspeaker, Black. 6 image(s) available. Click on image to view full size.

Key Features

  • Deliver powerful, room-filling sound for large venues and critical monitoring environments, ensuring every event or announcement is heard clearly
  • Uniform coverage with DMT and axisymmetric waveguide for consistent speech intelligibility across audience areas and security control rooms
  • High output 550W capability with a 12" woofer and 3" compression driver for full-bandwidth clarity and impact
  • Flexible deployment: use passive or bi-amplified configurations to match system requirements and DSP/networked audio setups
  • Installation-ready with M10 rigging points and a discreet, acoustically transparent grille that blends into any professional setting

Quick Specifications

Product Model
AP-5122
Brand Name
QSC
Product Line
AcousticPerformance
Product Name
High-Power, 12" 2-Way, 90? Conical DMT
View Full Technical Specifications

Product Information Tabs

Overview

Designed for large performance venues, houses of worship, stadiums and critical monitoring stations, the QSC AP-5122BK AcousticPerformance loudspeaker delivers reliable, high-impact sound where intelligibility and power matter most. This pro speaker combines 550W of output with a 12" woofer and a 3" diaphragm compression driver to reproduce full bandwidth audio from 48 Hz to 18 kHz with 95 dB sensitivity, making it ideal for live audio, public address and mass-notification systems. QSC’s DMT technology and axisymmetric waveguide ensure uniform coverage and consistent tonal balance across a wide listening area—key for security, surveillance monitoring rooms and multi-zone installations. The AP-5122BK supports passive or bi-amplified operation for flexible integration with amplifiers and DSP, and its M10 mounting points and discreet grille simplify installation and aesthetics. Rugged construction and WEEE compliance mean this speaker is built for long-term commercial use. Upgrade your venue or control-room audio with the QSC AP-5122BK for dependable, high-power performance—contact us for integration guidance or order now to improve coverage and clarity.

Features

  • Deliver powerful, room-filling sound for large venues and critical monitoring environments, ensuring every event or announcement is heard clearly
  • Uniform coverage with DMT and axisymmetric waveguide for consistent speech intelligibility across audience areas and security control rooms
  • High output 550W capability with a 12" woofer and 3" compression driver for full-bandwidth clarity and impact
  • Flexible deployment: use passive or bi-amplified configurations to match system requirements and DSP/networked audio setups
  • Installation-ready with M10 rigging points and a discreet, acoustically transparent grille that blends into any professional setting
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticPerformance
Product Name High-Power, 12" 2-Way, 90? Conical DMT
Product Type Speaker
Product Model AP-5122
Product Series AP
Manufacturer Part Number AP-5122-BK
Technical Information
Impedance 8 ohms
Sensitivity 95dB
Speaker Size 12"
Crossover Type 2-way
Audio
RMS Output Power 550W
Speaker Configuration 2
Maximum Frequency Response 18 kHz
Minimum Frequency Response 48Hz
Physical Characteristics
Size 12"
Color Black
Depth 13"
Width 15"
Weight 65lb
Product Information
Diameter 12"
Miscellaneous
Features 12" Woofer, 3" Compression Driver, Designed for Cinema Applications, Full-Bandwidth Reproduction
Environmentally Friendly Yes
Environmental Certification WEEE
