QSC AP-5152 AcousticPerformance Series 2-Way Loudspeaker, 625W RMS, Black

SKU: AP-5152-BK QSC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

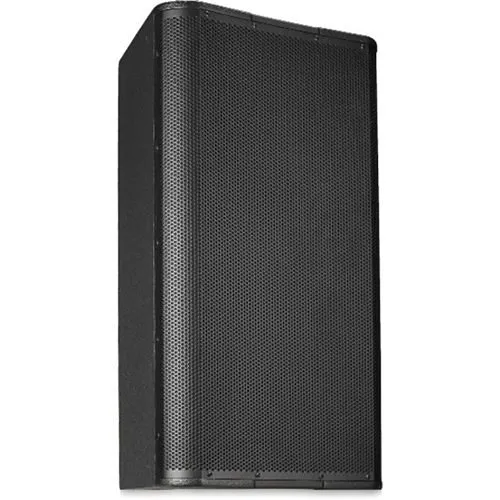

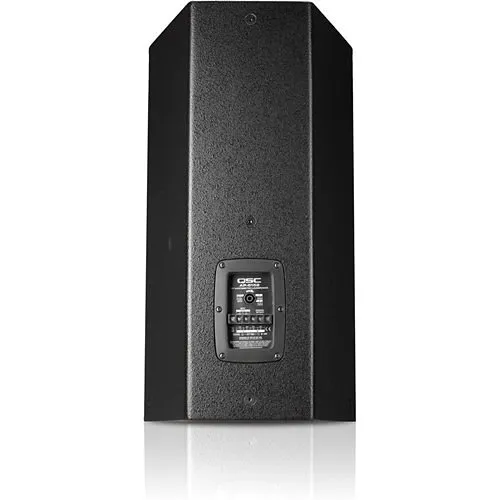

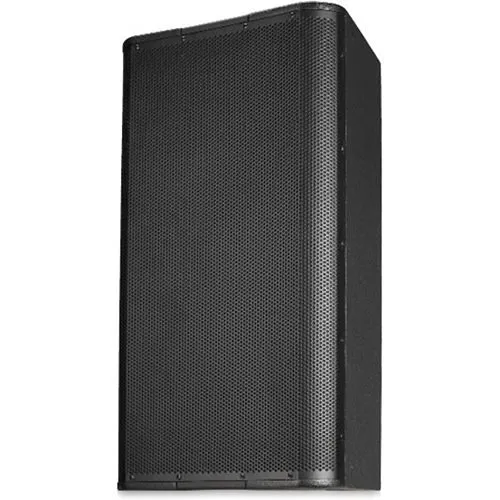

Image of QB-AP5152BK
Product images for QSC AP-5152 AcousticPerformance Series 2-Way Loudspeaker, 625W RMS, Black. 4 image(s) available. Click on image to view full size.

Key Features

  • High-impact 625W RMS output delivers clear, high-SPL sound so large venues and control rooms need fewer cabinets and less amplification.
  • DMT and axisymmetric waveguide provide uniform coverage and consistent intelligibility across audience areas—perfect for houses of worship, arenas, and monitoring rooms.
  • Passive or bi-amplified operation lets integrators optimize channel count and system control, with QSC Intrinsic Correction tunings available for precise voicing.
  • 15-inch woofer and 3-inch compression driver reproduce full bandwidth (44 Hz–18 kHz) with 96 dB sensitivity for accurate low end and detailed highs.
  • Rugged enclosure with M10 suspension points and acoustically transparent grille simplifies discreet installation in security, surveillance, and themed-entertainment environments.

Quick Specifications

Product Model
AP-5152
Brand Name
QSC
Product Line
AcousticPerformance
Product Name
High-Power, 15" 2-Way, 75? Conical DMT
View Full Technical Specifications

Product Information Tabs

Overview

When reliable, high-output sound is required across large or demanding spaces, the QSC AP-5152 loudspeaker delivers professional-grade performance and predictable coverage. This AcousticPerformance 2-way pro speaker combines a high-capacity 3-inch (76 mm) compression driver with a 15-inch woofer and a 625W RMS power rating to produce clear, full-bandwidth audio from 44 Hz to 18 kHz. The Directivity Matched Transition (DMT) and axisymmetric waveguide maintain uniform on- and off-axis response, improving voice intelligibility for paging, monitoring and AV presentations in venues, control rooms, and security/surveillance hubs. With 96 dB sensitivity and the option to run passive or bi-amplified, the AP-5152 gives system integrators flexibility to reduce channel counts or fine-tune performance with QSC Intrinsic Correction. Built for installed sound, the cabinet features M10 suspension points and a discreet, acoustically transparent grille that fits professional aesthetics. Environmentally friendly packaging and durable construction help lower lifecycle costs. Specify the QSC AP-5152 for installations that demand high SPL, accurate coverage, and reliable long-term operation—contact sales to configure this loudspeaker for your next project.

Features

  • High-impact 625W RMS output delivers clear, high-SPL sound so large venues and control rooms need fewer cabinets and less amplification.
  • DMT and axisymmetric waveguide provide uniform coverage and consistent intelligibility across audience areas—perfect for houses of worship, arenas, and monitoring rooms.
  • Passive or bi-amplified operation lets integrators optimize channel count and system control, with QSC Intrinsic Correction tunings available for precise voicing.
  • 15-inch woofer and 3-inch compression driver reproduce full bandwidth (44 Hz–18 kHz) with 96 dB sensitivity for accurate low end and detailed highs.
  • Rugged enclosure with M10 suspension points and acoustically transparent grille simplifies discreet installation in security, surveillance, and themed-entertainment environments.
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticPerformance
Product Name High-Power, 15" 2-Way, 75? Conical DMT
Product Type Speaker
Product Model AP-5152
Packaged Quantity 1
Manufacturer Part Number AP-5152-BK
Technical Information
Impedance 8 ohms
Sensitivity 96dB
Speaker Size 15"
Crossover Type 2-way
Audio
RMS Output Power 625W
Speaker Configuration 2
Maximum Frequency Response 18 kHz
Minimum Frequency Response 44Hz
Physical Characteristics
Size 15"
Color Black
Depth 15"
Width 18"
Weight 80lb
Product Information
Diameter 15"
Miscellaneous
Features 15" Woofer, 3" Compression Driver, Designed for Cinema Applications, Full-Bandwidth Reproduction
Environmentally Friendly Yes
Environmental Certification WEEE
