QSC AP-5152WH AcousticPerformance Series 625W 15" 2-Way, High-Power, 75˚ Conical DMT, White

SKU: AP-5152-WH QSC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

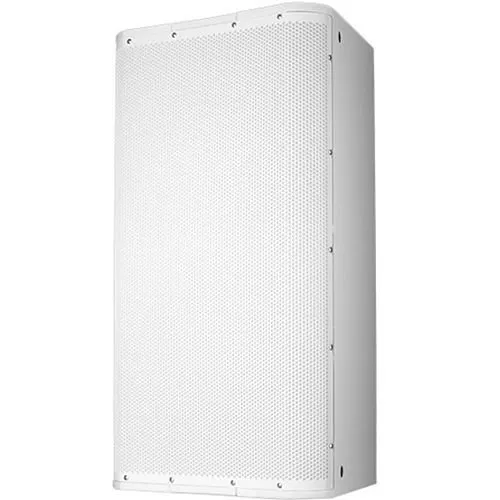

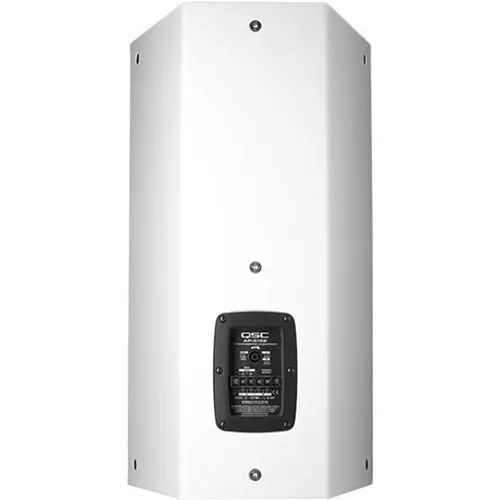

Image of QB-AP5152WH
Product images for QSC AP-5152WH AcousticPerformance Series 625W 15" 2-Way, High-Power, 75˚ Conical DMT, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver clear, high-impact sound up to 625W to fill performance spaces, houses of worship, clubs and arenas with professional-level SPL
  • 75° Conical DMT and axisymmetric waveguide ensure smooth, consistent coverage on- and off-axis for predictable audience experience
  • 15" woofer and 3" compression driver provide full-bandwidth clarity and low-end punch for music, speech and live events
  • Flexible deployment: use passive for simplified systems or bi-amp for precise tuning and integration with QSC Intrinsic Correction and Q-Sys control
  • Clean, unobtrusive white finish with M10 suspension points and acoustically transparent grille for discreet, durable installs

Quick Specifications

Product Model
AP-5152
Brand Name
QSC
Product Line
AcousticPerformance
Product Name
High-Power, 15" 2-Way, 75? Conical DMT
View Full Technical Specifications

Product Information Tabs

Overview

When venue performance and intelligibility matter most, the QSC AP-5152WH AcousticPerformance pro loudspeaker delivers the power and coverage to get the job done. Designed for performance spaces, worship facilities, nightclubs and stadium concourses, this 15" two-way loudspeaker provides 625W of clean output and a controlled 75° conical DMT pattern for remarkably uniform coverage. The 381mm (15") woofer combined with a 76mm (3") diaphragm compression driver reproduces full bandwidth from the low 40s Hz up to 18 kHz with 96 dB sensitivity, so music, spoken word and paging are clear and authoritative across the listening area. Installers and integrators benefit from a clean, logo-free grille, M10 suspension points, and the option to run the cabinet passive or bi-amplified for advanced tuning with QSC Intrinsic Correction and Q-Sys systems. Suitable for AV, public address, and even security or monitoring audio in multi-use facilities, the AP-5152WH blends high SPL capability with consistent directivity for reliable results. Specify the QSC AP-5152WH for demanding installed-sound projects—contact us for system design or to place an order.

Features

  • Deliver clear, high-impact sound up to 625W to fill performance spaces, houses of worship, clubs and arenas with professional-level SPL
  • 75° Conical DMT and axisymmetric waveguide ensure smooth, consistent coverage on- and off-axis for predictable audience experience
  • 15" woofer and 3" compression driver provide full-bandwidth clarity and low-end punch for music, speech and live events
  • Flexible deployment: use passive for simplified systems or bi-amp for precise tuning and integration with QSC Intrinsic Correction and Q-Sys control
  • Clean, unobtrusive white finish with M10 suspension points and acoustically transparent grille for discreet, durable installs
General Information
Brand Name QSC
Manufacturer QSC Audio
Product Line AcousticPerformance
Product Name High-Power, 15" 2-Way, 75? Conical DMT
Product Type Speaker
Product Model AP-5152
Manufacturer Part Number AP-5152-WH
Technical Information
Impedance 8 ohms
Sensitivity 96dB
Speaker Size 15"
Crossover Type 2-way
Audio
RMS Output Power 625W
Speaker Configuration 2
Maximum Frequency Response 18 kHz
Minimum Frequency Response 44Hz
Physical Characteristics
Size 15"
Color White
Depth 15"
Width 18"
Weight 80lb
Product Information
Diameter 15"
Miscellaneous
Features 15" Woofer, 3" Compression Driver, Designed for Cinema Applications, Full-Bandwidth Reproduction
Environmentally Friendly Yes
Environmental Certification WEEE
