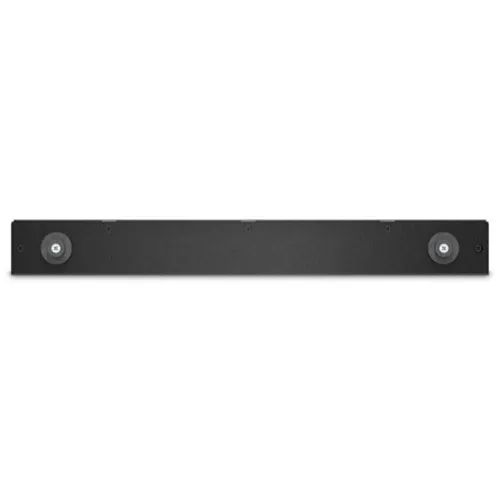

APC AP6037A Rack Power Distribution Unit, Basic, 8.6KW, 208V
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Reliable 8.6 kW rack power to keep servers, networking gear and surveillance systems running continuously
- Compact 1U horizontal design saves rack space and mounts easily in NetShelter enclosures for neat cable management
- Three IEC 60320 C19 outlets deliver high-current connections for switches, DVRs, NVRs and monitoring equipment
- NEMA L15-30P 30A input simplifies integration with existing electrical infrastructure while providing overcurrent protection
- UL/cUL listed and backed by a 2-year warranty for dependable, low-maintenance operation in data center and security deployments
Quick Specifications
- Product Model
- AP6037A
- Brand Name
- APC by Schneider Electric
- Product Line
- NetShelter
- Product Name
- Basic Rack PDU AP6037A
Explore the details
Product information
AP6037A
Overview
Keep critical rack-mounted equipment powered and protected with the APC by Schneider Electric AP6037A Basic Rack Power Distribution Unit. Designed for data centers, security and surveillance racks, this Basic PDU delivers up to 8.6 kW at 208V to support high-density servers, networking switches and monitoring/DVR systems. The space-saving 1U horizontal form factor fits standard racks and NetShelter enclosures for easy installation and tidy cable routing.
Equipped with three IEC 60320 C19 outlets and a NEMA L15-30P 30A input, the AP6037A provides high-current receptacles for power-hungry devices while simplifying integration into existing power infrastructure. Built-in overcurrent protection and UL/cUL listing help meet safety and compliance demands common in security, surveillance and enterprise networking environments. As a cost-effective Basic PDU, it offers reliable rack power without extra management overhead—ideal for edge cabinets, monitoring stations and branch data closets.
Specify the AP6037A to streamline rack power distribution for your security, surveillance or IT deployments—order now to ensure uninterrupted operation and simplified rack installation.
Features
- Reliable 8.6 kW rack power to keep servers, networking gear and surveillance systems running continuously
- Compact 1U horizontal design saves rack space and mounts easily in NetShelter enclosures for neat cable management
- Three IEC 60320 C19 outlets deliver high-current connections for switches, DVRs, NVRs and monitoring equipment
- NEMA L15-30P 30A input simplifies integration with existing electrical infrastructure while providing overcurrent protection
- UL/cUL listed and backed by a 2-year warranty for dependable, low-maintenance operation in data center and security deployments
| General Information | |
|---|---|
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | NetShelter |
| Product Name | Basic Rack PDU AP6037A |
| Product Type | PDU |
| Product Model | AP6037A |
| Product Series | Basic |
| Packaged Quantity | 1 |
| Manufacturer Part Number | AP6037A |
| Technical Information | |
| PDU Type | Basic |
| Output Voltage | 230V AC |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Physical Characteristics | |
| Color | Black |
| Depth | 4.96" |
| Width | 15.28" |
| Height | 1.73" |
| Weight | 7.94lb |
| Rack Height | 1U |
| Mounting Orientation | Horizontal |
| Power Description | |
| Input Current | 30A |
| Input Voltage | 200V, 208V |
| Plug/Connector Type | NEMA L15-30P |
| Product Information | |
| Mount Type | Rack Mount |
| Protection Type | Overcurrent Protection |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | cUL Listed, UL Listed |
