APC AP7569 Power Strip
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 10
Key Features

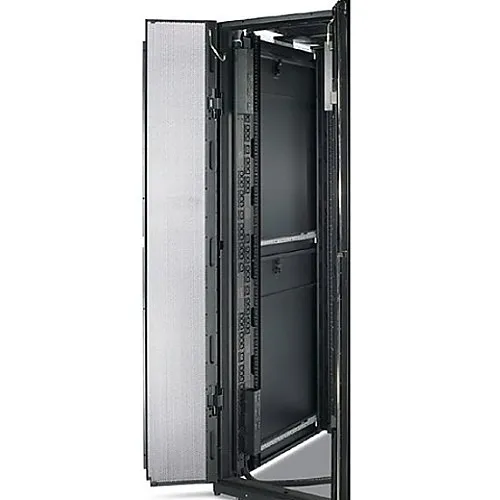

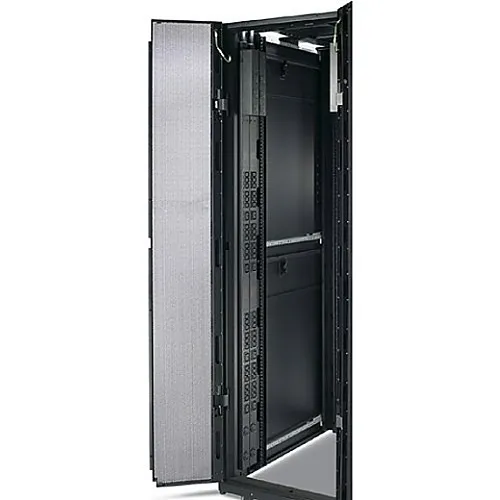

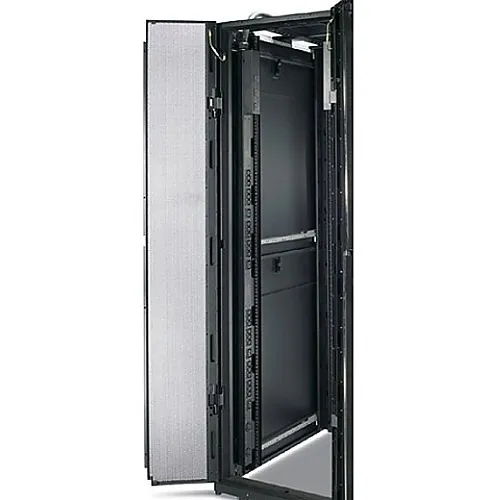

- Maximize rack density with vertical, zero-U mounting that frees up valuable rack space for servers and security gear
- Keep critical systems online with resettable circuit breakers for fast recovery after overloads
- Fast, tool-less installation for quick deployment in NetShelter enclosures and network closets, reducing labor time
- Mixed outlet types (24 C13, 4 C19, 2 L6-30R) support diverse IT, surveillance, and monitoring equipment without additional adapters
- Durable, certified design (UL/cUL/CSA) from APC by Schneider Electric for reliable power distribution in data centers and security installations
Quick Specifications
- Product Model
- AP7569
- Sector
- Data Comm & Networking
- Brand Name
- APC by Schneider Electric
- Product Line
- Basic Rack
Explore the details
Product information
AP7569
Overview
Optimize rack power distribution for IT, security and surveillance deployments with the APC by Schneider Electric AP7569 Power Strip PDU. This vertical, zero-U PDU delivers high-density, mixed outlet support—24 IEC C13, 4 IEC C19 and 2 NEMA L6-30R—so you can power servers, switches, recorders and cameras from a single, compact unit. With a 208V input and Hubbell CS8365C plug, the AP7569 integrates seamlessly into data center and network closet environments.
Built for uptime, the AP7569 includes resettable circuit breakers for quick recovery from overloads and toolless rack mounting for faster installs in NetShelter enclosures. The slim 70" profile and 0U rack height maximize usable space while providing reliable overload protection and industry certifications (UL, cUL, CSA). Whether you’re equipping a surveillance room, monitoring hub, or edge networking cabinet, this Basic Rack PDU balances capacity and convenience.
Choose the AP7569 for dependable, space-saving power distribution in security, monitoring and IT applications. Add to cart or contact sales to specify this APC PDU for your next rack deployment.
Features
- Maximize rack density with vertical, zero-U mounting that frees up valuable rack space for servers and security gear
- Keep critical systems online with resettable circuit breakers for fast recovery after overloads
- Fast, tool-less installation for quick deployment in NetShelter enclosures and network closets, reducing labor time
- Mixed outlet types (24 C13, 4 C19, 2 L6-30R) support diverse IT, surveillance, and monitoring equipment without additional adapters
- Durable, certified design (UL/cUL/CSA) from APC by Schneider Electric for reliable power distribution in data centers and security installations
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | Basic Rack |
| Product Name | Basic Rack 14.4kVA PDU |
| Product Type | PDU |
| Packaged Quantity | 1 |
| Manufacturer Part Number | AP7569 |
| Technical Information | |
| PDU Type | Basic |
| Output Voltage | 208V |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19, NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-30R, 24 x IEC 60320 C13, 4 x IEC 60320 C19 |
| Physical Characteristics | |
| Color | Black |
| Depth | 3.74" |
| Width | 2.20" |
| Height | 70" |
| Weight | 16.14lb |
| Rack Height | 0U |
| Power Description | |
| Input Voltage | 208V |
| Plug/Connector Type | Hubbell CS8365C |
| Product Information | |
| Mount Type | Rack Mount |
| Protection Type | Overload Protection |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | CSA, cUL Listed, METI Denan, UL Listed |
