APC AP7900B Rack PDU, Switched, 1U RMS, 15A, 100/120V, NEMA 5-15 Outlets

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

APC AP7900B Rack PDU, Witched, 1U RMS, 15A, 100/120V, 8 NEMA 5-15 Outlets

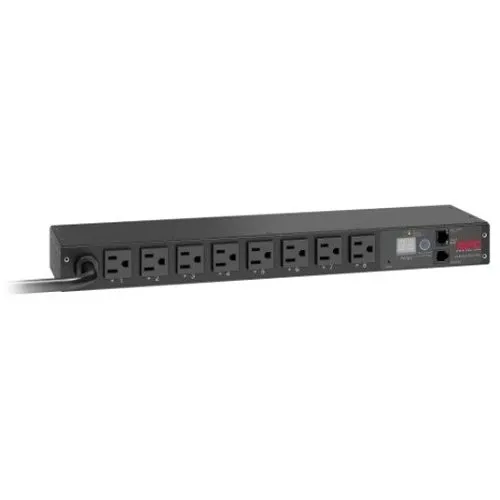

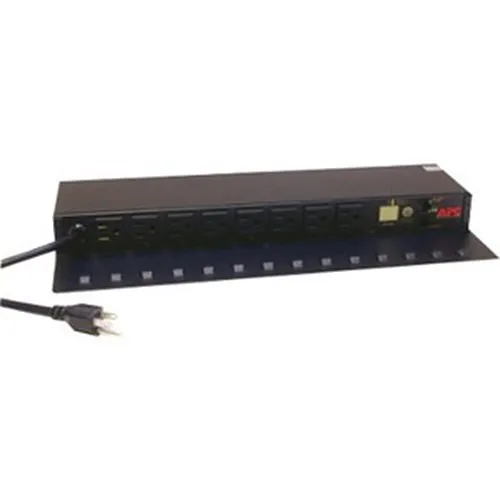

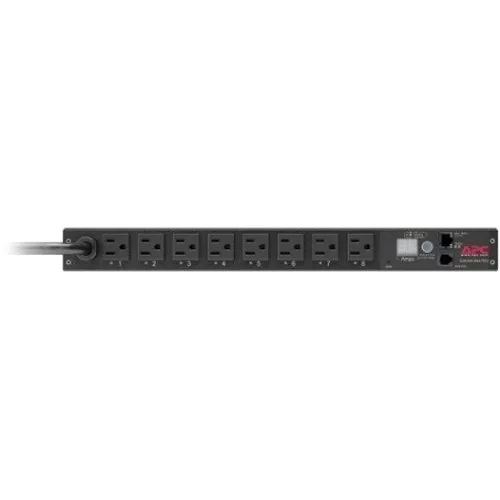

Product images for APC AP7900B Rack PDU, Switched, 1U RMS, 15A, 100/120V, NEMA 5-15 Outlets. 7 image(s) available. Click on image to view full size.

Key Features

  • Outlet-level switching and load control to remotely power cycle and recover hung servers, cameras, or network devices

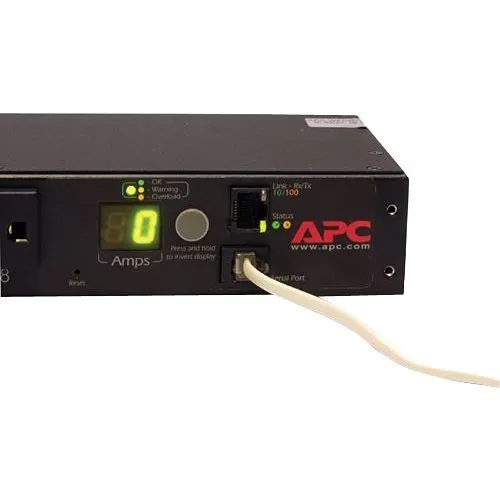

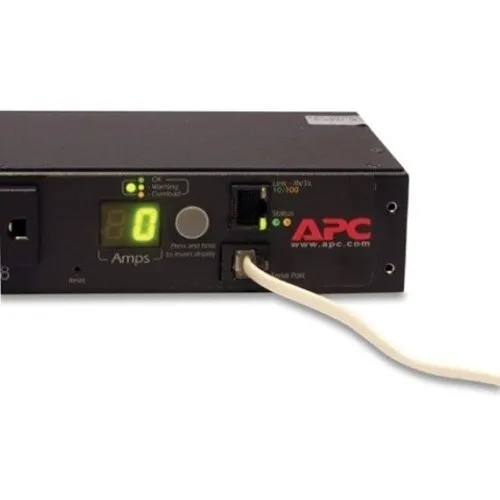

  • Built-in digital current meter for real-time load monitoring and simple overload prevention
  • Space-saving 1U rack design with 8 NEMA 5-15R outlets to support common IT and security equipment
  • Reliable 15A, 100/120V operation with NEMA 5-15P input for standard North American deployments
  • UL/cUL listed and backed by a 2-year limited warranty for safety and long-term uptime

Quick Specifications

Product Model
AP7900B
Sector
Data Comm & Networking
Brand Name
APC by Schneider Electric
Product Name
Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
View Full Technical Specifications

Explore the details

Product information

AP7900B

Overview

Keep racks running and critical systems available with the APC by Schneider Electric AP7900B switched Rack PDU. Designed for IT closets, security and surveillance racks, and edge network cabinets, this 1U power distribution unit provides outlet-level switching and an integrated digital current meter so you can monitor load and quickly power-cycle problem devices. The AP7900B delivers dependable 15A power at 100/120V to eight NEMA 5-15R outlets—ideal for servers, switches, access control panels, DVRs and IP cameras. Its horizontal 1U form factor saves rack space while giving installers flexible mounting and straightforward connectivity with a NEMA 5-15P plug. Built to meet UL and cUL safety standards and supported by a 2-year limited warranty, this switched PDU reduces downtime, simplifies rack-level power management, and helps prevent overloads through visible load data. Add the AP7900B to networking, monitoring, or physical security deployments where reliable, monitored power matters—order now to protect uptime and streamline rack operations.

Features

  • Outlet-level switching and load control to remotely power cycle and recover hung servers, cameras, or network devices
  • Built-in digital current meter for real-time load monitoring and simple overload prevention
  • Space-saving 1U rack design with 8 NEMA 5-15R outlets to support common IT and security equipment
  • Reliable 15A, 100/120V operation with NEMA 5-15P input for standard North American deployments
  • UL/cUL listed and backed by a 2-year limited warranty for safety and long-term uptime
24 of 24 specifications
Technical specifications for APC AP7900B Rack PDU, Switched, 1U RMS, 15A, 100/120V, NEMA 5-15 Outlets
General Information
Sector Data Comm & Networking
Brand Name APC by Schneider Electric
Manufacturer Schneider Electric SA
Product Name Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
Product Type PDU
Country of Origin PH
Manufacturer Part Number AP7900B
Technical Information
PDU Type Switched
Output Voltage 120V
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Physical Characteristics
Color Black
Depth 4.25"
Weight 5.00lb
Form Factor Rack Mount
Mounting Orientation Horizontal
Power Description
Input Current 4A
Input Voltage 100V, 120V
Plug/Connector Type NEMA 5-15P
Product Information
Mount Type Rack Mount
Protection Type Overload Protection
Warranty
Limited Warranty 2-Year
Miscellaneous
Environmentally Friendly Yes
Environmental Certification California Proposition 65, cUL listed, UL Listed
