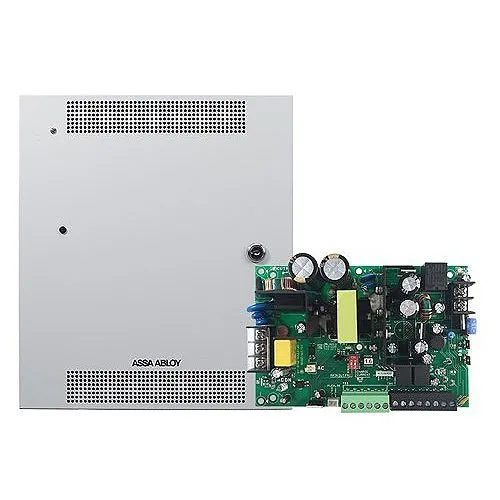

Securitron AQL4D8E1 Securitron AQL4-D8E1 AQL Series Dual Voltage Switching Power Supply with 4D8 Distribution Model and Enclosure
Image of 1
Key Features
- Deliver stable, dual-voltage power to access control devices, supporting 4A @ 12VDC or 3A @ 24VDC for dependable lock and sensor operation
- Built-in fast battery charger and low-battery cutoff ensure reliable backup power and extended battery life during outages
- Expandable architecture (up to 16 outputs) streamlines multi-door installations and reduces the need for multiple power cabinets
- OutSmart™ LED voltage indication and LockSafe™ charging circuit prevent voltage errors and reduce heat on electric locks for longer hardware life
- Network-ready options and integrated Fire Alarm Interface (FAI) provide centralized monitoring and fault reporting for security and surveillance systems
Quick Specifications
- Product Model
- AQL4D8E1
- Sector
- Access Control
- Brand Name
- Securitron by ASSA ABLOY
- Product Name
- AQL4D8E1 Power Supply
Frequently Bought Together
Securitron AQL4D8E1 Securitron AQL4-D8E1 AQL Series Dual Voltage Switching Power Supply with 4D8 Distribution Model and Enclosure
$336.65
3 items selected
Total: $1,045.33
Explore the details
Product information
AQL4-D8E1
Overview
Keep your security and access control systems online and manageable with the Securitron by ASSA ABLOY AQL4-D8E1 power supply. Designed for installers and security integrators, this dual-voltage switching power supply delivers reliable power for locks, readers and surveillance peripherals—4A at 12VDC or 3A at 24VDC—while supporting 120V or 230V inputs for global sites. The unit includes a dedicated fast battery charger and low-battery cutoff to protect batteries and ensure clean automatic switchover during outages, reducing downtime for critical access control and monitoring systems. Expandable up to 16 outputs in the standard enclosure and compatible with optional Netlink™ modules, the AQL4-D8E1 simplifies multi-door deployments and centralizes network monitoring and event reporting. Safety and equipment longevity are prioritized with OutSmart™ dual-color LED voltage confirmation, LockSafe™ thermal protection for locks, enhanced surge immunity, and an integrated Fire Alarm Interface for selective output shutdown. Ideal for commercial security, surveillance, and IT-integrated access control projects—specify the Securitron AQL4-D8E1 to reduce install complexity and improve system uptime. Contact your sales rep or add to your spec sheet for next-site deployments.
Features
- Deliver stable, dual-voltage power to access control devices, supporting 4A @ 12VDC or 3A @ 24VDC for dependable lock and sensor operation
- Built-in fast battery charger and low-battery cutoff ensure reliable backup power and extended battery life during outages
- Expandable architecture (up to 16 outputs) streamlines multi-door installations and reduces the need for multiple power cabinets
- OutSmart™ LED voltage indication and LockSafe™ charging circuit prevent voltage errors and reduce heat on electric locks for longer hardware life
- Network-ready options and integrated Fire Alarm Interface (FAI) provide centralized monitoring and fault reporting for security and surveillance systems
| General Information | |
|---|---|
| Sector | Access Control |
| Brand Name | Securitron by ASSA ABLOY |
| Manufacturer | ASSA ABLOY |
| Product Name | AQL4D8E1 Power Supply |
| Product Type | Power Supply |
| Product Model | AQL4D8E1 |
| Product Series | AQL |
| Manufacturer Part Number | AQL4D8E1 |
| Technical Information | |
| Output Voltage | 12V DC |
| Physical Characteristics | |
| Color | Blue, Green |
| Depth | 4.5" |
| Width | 12" |
| Height | 14" |
| Form Factor | Enclosure |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Output Current | 4A |
| TBD | |
| Amperage | 4A |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
