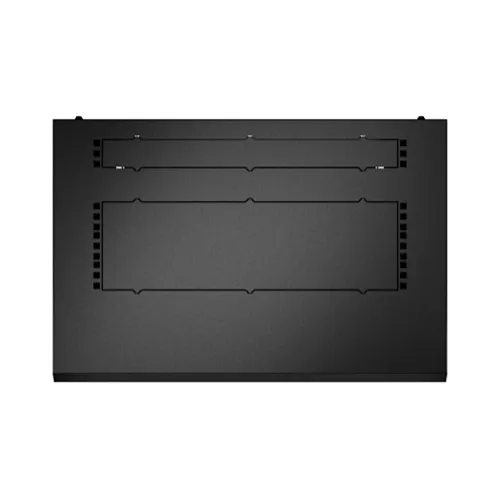

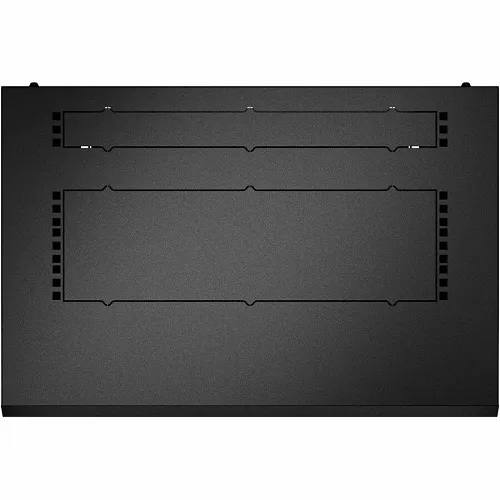

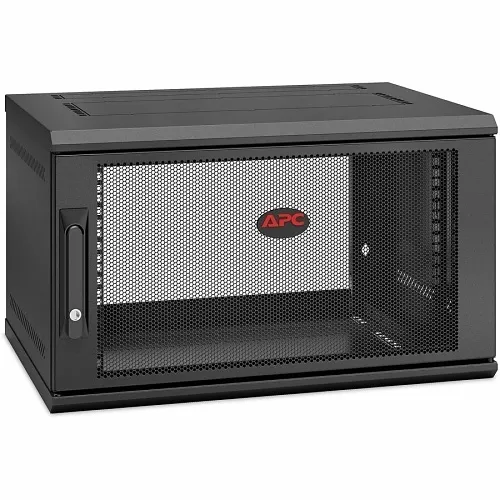

APC AR106SH4 Electric NetShelter WX 6U Single Hinged Wall-mount Enclosure 400mm Deep
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Ready-to-use, fully assembled enclosure that reduces installation time and onsite labor
- Space-saving wall-mount design ideal for network closets, edge sites and small server rooms
- Secure, hinged door and integrated cable access protect surveillance, monitoring and networking equipment
- Fits standard 19" hardware with 6U of rack space and 400mm (15.75") depth for switches, PDUs and UPS accessories
- Supports up to 200 lb payload and is compatible with APC PDUs, Smart-UPS and NetBotz for reliable power and environmental monitoring
Quick Specifications
- Product Model
- AR106SH4
- Brand Name
- APC by Schneider Electric
- Product Line
- NetShelter WX
- Product Name
- NetShelter WX 6U Single Hinged Wall-mount Enclosure 400mm Deep
Explore the details
Product information
AR106SH4
Overview
Deploy a secure, space-saving network hub at the edge with the APC by Schneider Electric NetShelter WX 6U Single Hinged Wall-mount Enclosure. Engineered for network closets, surveillance installations and remote monitoring sites, this fully assembled 6U rack cabinet saves installation time and frees IT teams to focus on configuration instead of assembly. With a 400mm (15.75") cabinet depth and standard 19" rack width, it accommodates switches, patch panels, PoE injectors and compact UPS and PDU devices while supporting a 200 lb load capacity. The hinged, lockable door and integrated cable openings protect sensitive security and surveillance gear while enabling neat cable management and cooling. Environmentally certified and backed by a 5-year limited warranty, the AR106SH4 is compatible with APC Smart-UPS, PDUs and NetBotz monitoring for a complete, resilient infrastructure. Ideal for security, monitoring, and networking deployments at the edge — order the NetShelter WX to secure and streamline your next installation.
Features
- Ready-to-use, fully assembled enclosure that reduces installation time and onsite labor
- Space-saving wall-mount design ideal for network closets, edge sites and small server rooms
- Secure, hinged door and integrated cable access protect surveillance, monitoring and networking equipment
- Fits standard 19" hardware with 6U of rack space and 400mm (15.75") depth for switches, PDUs and UPS accessories
- Supports up to 200 lb payload and is compatible with APC PDUs, Smart-UPS and NetBotz for reliable power and environmental monitoring
| General Information | |
|---|---|
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | NetShelter WX |
| Product Name | NetShelter WX 6U Single Hinged Wall-mount Enclosure 400mm Deep |
| Product Type | Rack Cabinet |
| Product Model | AR106SH4 |
| Application/Usage | Airflow System, Networking |
| Country of Origin | PH |
| Manufacturer Part Number | AR106SH4 |
| Physical Characteristics | |
| Color | Black |
| Depth | 15.75" |
| Width | 23.62" |
| Height | 13.98" |
| Weight | 24.49lb |
| Rack Depth | 13.0" |
| Rack Width | 19.0" |
| Form Factor | Wall Mount |
| Product Information | |
| Mount Type | Wall Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
