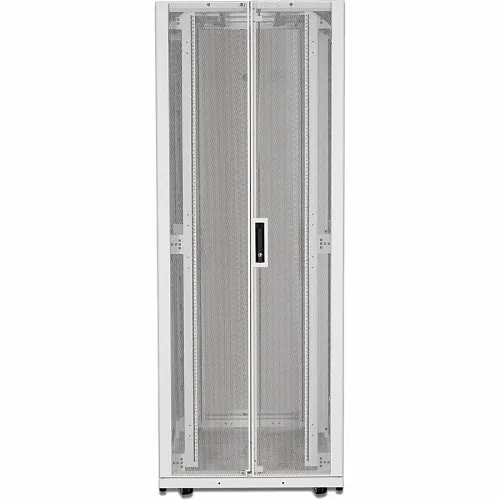

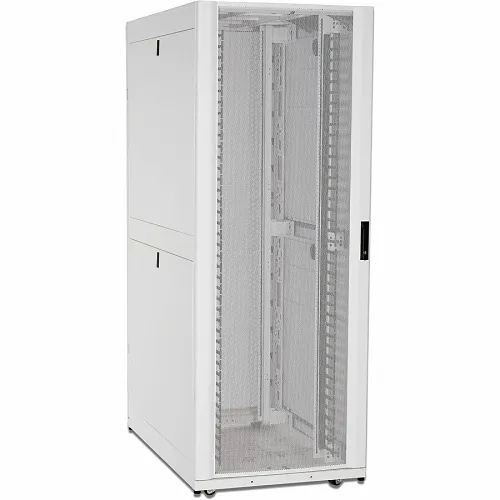

APC AR3140W Netshelter Sx 42U 750mm Wide 1070mm Deep Network Rack Cabinet
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Simplifies high-density deployments with integrated vertical cable managers and large roof openings to reduce install time and keep networking, SAN and PDU cabling organized
- Protects equipment and improves uptime with optimized side-to-side airflow and optional airflow ducting to isolate cold intake and hot exhaust for switches and servers

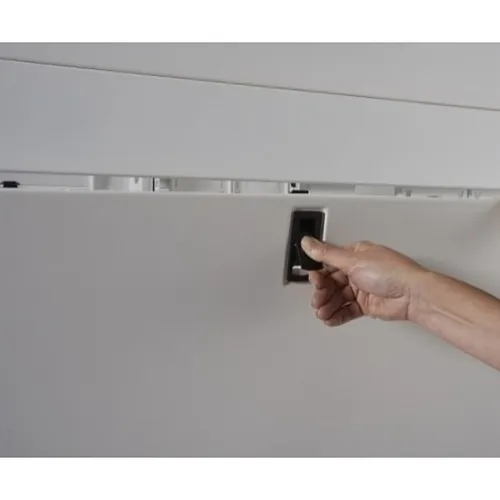

- Enhances physical security for surveillance and monitoring gear with lockable perforated front door and keyed-alike side panels
- Saves space and supports heavy loads — 42U capacity in a 750mm-wide, 1070mm-deep enclosure rated for up to 3750 lb
- Speeds serviceability: removable roof with pre-installed brush strips, quick-release half-height side panels, leveling feet and pre-installed casters for easy positioning
Quick Specifications
- Product Model
- AR3140W
- Brand Name
- APC by Schneider Electric
- Product Line
- NetShelter SX
- Product Name
- Netshelter SX, Networking Rack Enclosure
Explore the details
Product information
AR3140W
Overview
Designed for high-density networking and mission-critical infrastructure, the APC by Schneider Electric NetShelter SX 42U rack cabinet delivers secure, serviceable housing for switches, servers, PDUs and surveillance systems. This 42U floor-standing rack (750mm wide x 1070mm deep) combines robust 3750 lb weight capacity with integrated vertical cable management and large roof pass-throughs to keep data and power cabling neat and accessible—reducing install time and minimizing signal strain.
Airflow-focused features, including side-to-side airflow panels and compatibility with the Side Airflow Duct Kit, isolate cold intake from hot exhaust to prevent hot spots in high-density switch and SAN deployments. The lockable perforated front door and keyed-alike side panels safeguard security and monitoring equipment, while removable roof sections with brush strips simplify equipment changes without disturbing routed cable runs. TAA-compliant and backed by a 5-year limited warranty, this NetShelter SX rack cabinet is purpose-built for data centers, NOC rooms, and physical security/ surveillance installations. Order the APC NetShelter SX to streamline deployments and protect critical networking and monitoring hardware.
Features
- Simplifies high-density deployments with integrated vertical cable managers and large roof openings to reduce install time and keep networking, SAN and PDU cabling organized
- Protects equipment and improves uptime with optimized side-to-side airflow and optional airflow ducting to isolate cold intake and hot exhaust for switches and servers
- Enhances physical security for surveillance and monitoring gear with lockable perforated front door and keyed-alike side panels
- Saves space and supports heavy loads — 42U capacity in a 750mm-wide, 1070mm-deep enclosure rated for up to 3750 lb
- Speeds serviceability: removable roof with pre-installed brush strips, quick-release half-height side panels, leveling feet and pre-installed casters for easy positioning
| General Information | |
|---|---|
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | NetShelter SX |
| Product Name | Netshelter SX, Networking Rack Enclosure |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | AR3140W |
| Technical Information | |
| Application/Usage | Networking, PDU, Server |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 42.13" |
| Width | 29.53" |
| Height | 78.39" |
| Weight | 343.81lb |
| Rack Depth | 32.25" |
| Rack Width | 19" |
| Form Factor | Floor Standing |
| Rack Height | 42U |
| Maximum Weight Capacity | 3750 lb |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Adjustable Leveling Feet, Adjustable Mounting Bracket, Adjustable Mounting Rails, Cable Management, Casters, Lockable Door, Lockable Side Panel, Perforated Door, Removable Door, Removable Side Panel, Vented |
| Package Contents | Baying Hardware, Key(s), Keyed-alike doors and side panels, Leveling Feet, Mounting Hardware, Pre-installed casters, Side Panels, Vertical cable managers |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
