Hanwha ARD-410 A Series 4-Channel AHD, TVI, CVI, CVBS, IP Recorder, Black

SKU: ARD-410 Hanwha Vision
Discount Image of SQ-ARD410

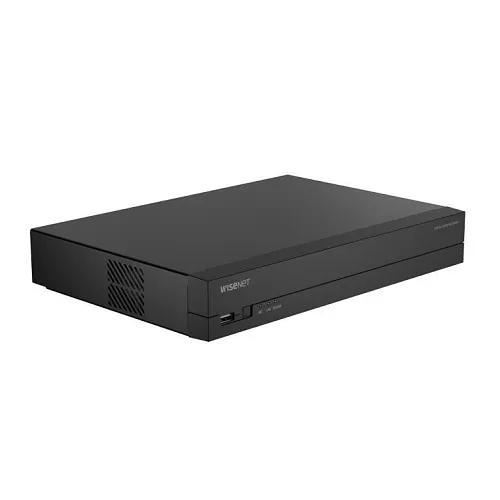

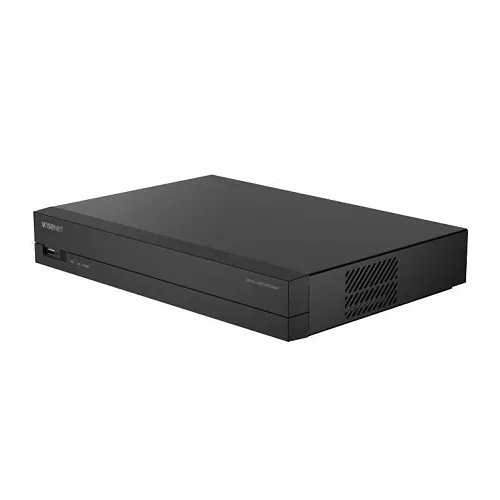

Product images for Hanwha ARD-410 A Series 4-Channel AHD, TVI, CVI, CVBS, IP Recorder, Black. 3 image(s) available. Click on image to view full size.
Sale 11% OFF

Key Features

  • Hybrid migration made simple: combine up to 4 analog channels with 2 IP channels to upgrade surveillance incrementally without replacing existing cameras.
  • Reduced storage & bandwidth costs: H.265 compression and support for a single 6TB SATA drive deliver longer retention and lower network load.
  • High-resolution capture where it matters: supports AHD/TVI/CVI up to 5MP (half) for clear evidence-grade footage and improved monitoring.
  • Fast deployment & remote access: HDMI/VGA outputs, coaxial PTZ control and P2P QR-code setup enable quick installation and reliable mobile monitoring.
  • Compact, dependable design: low 12V DC power draw, UL certification and a small footprint make it ideal for retail, offices and small enterprise security.

Quick Specifications

Product Model
ARD-410
Brand Name
Hanwha Vision
Product Name
ARD-410 4-Channel AHD, TVI, CVI, CVBS, IP Recorder
Product Type
Video Surveillance Station
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha ARD-410 A Series 4-Channel AHD, TVI, CVI, CVBS, IP Recorder, Black

Hanwha ARD-410 A Series 4-Channel AHD, TVI, CVI, CVBS, IP Recorder, Black

$178.01

Frequently Bought Together (1 items)

2 items selected

Total: $396.40

Product Information Tabs

Overview

For businesses that need flexible, cost‑effective surveillance, the Hanwha Vision ARD-410 hybrid video recorder delivers a practical path from analog to IP monitoring. This 4-channel hybrid DVR accepts AHD/TVI/CVI/CVBS cameras and adds up to two IP channels so you can expand camera coverage without a full system overhaul. With H.265/H.264/MJPEG support and a maximum 30 Mbps recording bandwidth, the ARD-410 reduces storage and network demands while retaining up to 5MP (half) resolution for critical detail.

Built for real-world security deployments, the recorder includes HDMI and VGA outputs, coaxial PTZ control, 1-channel audio I/O, 4 alarm inputs and P2P QR-code mobile setup for fast remote access. A single SATA bay supports up to 6TB of recording, giving small and medium businesses reliable retention for investigations and compliance. Compact, UL-certified and energy-efficient, the ARD-410 is ideal for retail, offices, warehouses and other commercial sites requiring dependable monitoring. Order the Hanwha ARD-410 to simplify your surveillance upgrade and improve situational awareness across your facility.

Features

  • Hybrid migration made simple: combine up to 4 analog channels with 2 IP channels to upgrade surveillance incrementally without replacing existing cameras.
  • Reduced storage & bandwidth costs: H.265 compression and support for a single 6TB SATA drive deliver longer retention and lower network load.
  • High-resolution capture where it matters: supports AHD/TVI/CVI up to 5MP (half) for clear evidence-grade footage and improved monitoring.
  • Fast deployment & remote access: HDMI/VGA outputs, coaxial PTZ control and P2P QR-code setup enable quick installation and reliable mobile monitoring.
  • Compact, dependable design: low 12V DC power draw, UL certification and a small footprint make it ideal for retail, offices and small enterprise security.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name ARD-410 4-Channel AHD, TVI, CVI, CVBS, IP Recorder
Product Type Video Surveillance Station
Product Model ARD-410
Product Series ARD
Country of Origin VN
Manufacturer Part Number ARD-410
Technical Information
Video Formats H.264, H.265, MJPEG
Maximum Frame Rate 120.0fps
Number of Channels 4
Display & Graphics
Maximum Video Resolution 3840 x 2160
Interfaces/Ports
VGA Yes
HDMI Yes
USB Standard USB 2.0
Number of USB Ports 2
Network & Communication
Ethernet Yes
Physical Characteristics
Color Black
Depth 8.22"
Width 11.85"
Height 1.89"
Power Description
Input Voltage 12V DC
Maximum Power Consumption 19.20W
Product Replacements & Other Alternatives
Model Number Alternative DS-2DY3220IW-DE, IDS-7204HUHI-M1/S, IDS-7204HUHI-M1/P, IDS-7204HQHI-M1/S-1TB, DS-2DY3220IW-DE
Miscellaneous
Environmental Certification UL
Operating System Compatibility macOS, Windows
