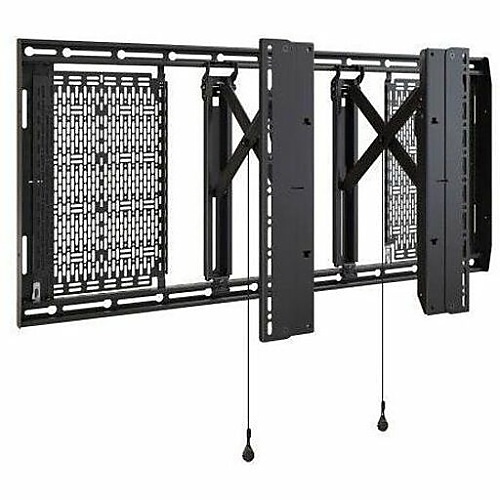

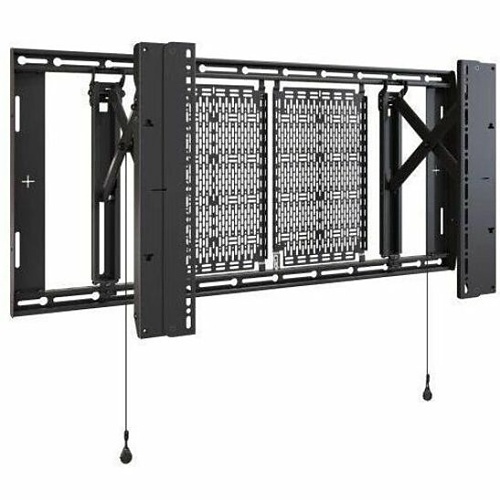

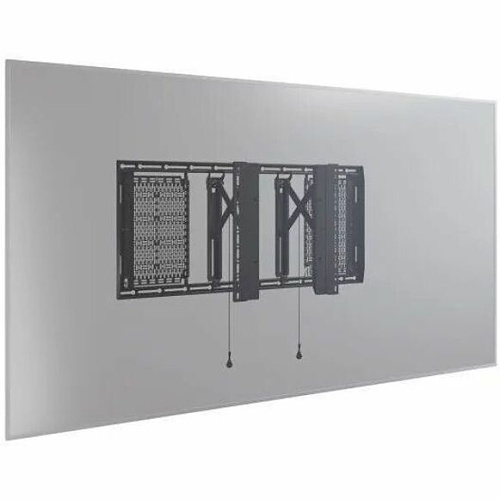

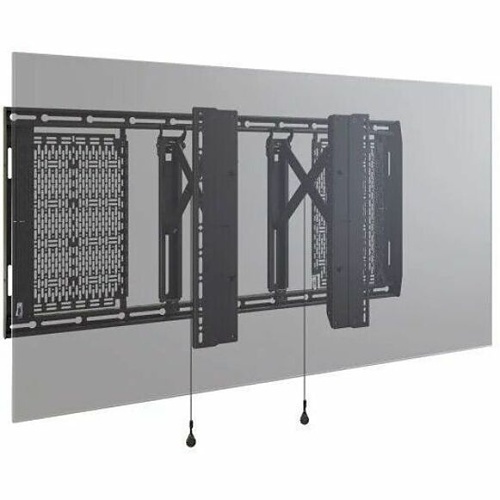

Chief AS3LDP7 Tempo PDU Bundle Flat Panel Wall Mount for 49-86" Displays, VESA Wall Mount, Black
Image of 8
Key Features
- Speeds large deployments by shipping a complete, pre-configured wall-mount solution with integrated PDU and device storage, reducing onsite labor and last-minute parts shipping

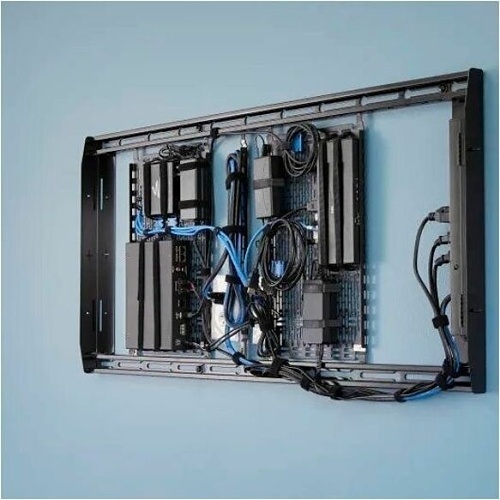

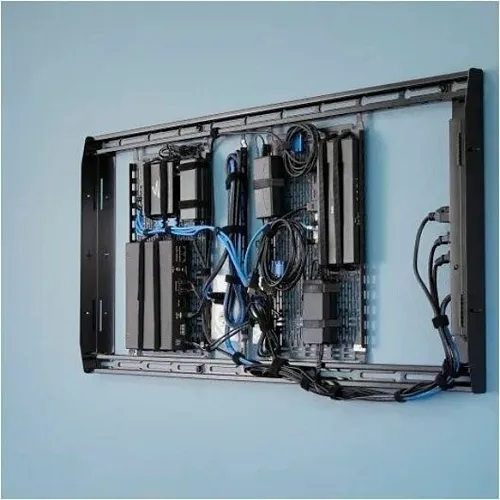

- Keeps surveillance and monitoring systems neat and serviceable with 12.6" of service access, movable Lever Lock™ storage plates, and built-in cable routing for cleaner AV and security installs

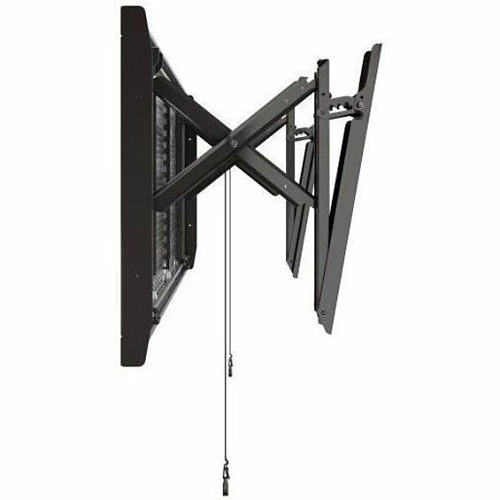

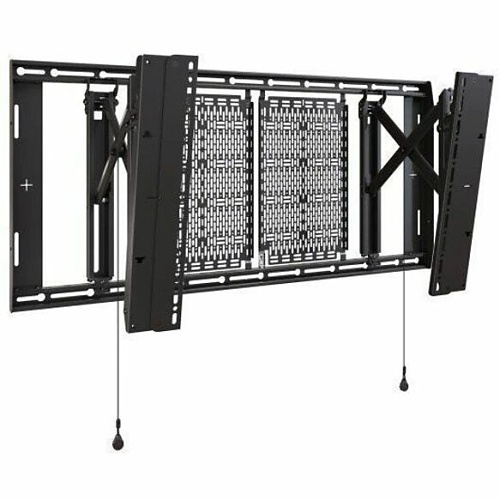

- Improves display positioning and accessibility with 10° of tilt (in 2.5° increments), lateral adjustment and up to 1" post-install leveling for precise alignment
- Supports commercial-grade displays from 49–86" and up to 200 lb capacity, accommodating most security, digital signage and control-room monitors
- Includes a PD-715SC-NS Middle Atlantic slim-profile 7-outlet, 15A power strip to centralize power for monitoring, surveillance and AV devices
Quick Specifications
- Product Model
- AS3LDP7
- Brand Name
- Chief by Legrand
- Product Line
- Tempo
- Product Name
- Tempo Flat Panel Wall Mount System, PDU Bundle
Explore the details
Product information
AS3LDP7
Overview
Deliver faster, more reliable display installations for security, surveillance and AV monitoring with the Chief by Legrand AS3LDP7 Tempo PDU Bundle Flat Panel Wall Mount. Designed for AV professionals and integrators, this all-in-one Tempo wall-mount system ships ready to accept 2–6 small devices behind the display and includes a PD-715SC-NS slim 7-outlet, 15A power strip to centralize power for connected gear. The system supports 49–86" displays and a maximum load of 200 lb, while offering 10° of adjustable tilt and lateral adjustment for precise viewing angles.
Installation is faster and serviceability is improved thanks to integrated Lever Lock™ storage plates that slide along the rail, 12.6" of service access, and an open wall plate for in-wall power and data. The Tempo design reduces onsite labor and simplifies mass rollouts—ideal for security control rooms, surveillance monitoring stations, digital signage and corporate AV projects. Backed by a 10-year limited warranty, the AS3LDP7 helps you deliver professional, code-aware mounts with streamlined cable management and ADA-friendly depth options. Order the Chief AS3LDP7 Tempo PDU bundle today to simplify your next monitoring or security deployment.
Features
- Speeds large deployments by shipping a complete, pre-configured wall-mount solution with integrated PDU and device storage, reducing onsite labor and last-minute parts shipping
- Keeps surveillance and monitoring systems neat and serviceable with 12.6" of service access, movable Lever Lock™ storage plates, and built-in cable routing for cleaner AV and security installs
- Improves display positioning and accessibility with 10° of tilt (in 2.5° increments), lateral adjustment and up to 1" post-install leveling for precise alignment
- Supports commercial-grade displays from 49–86" and up to 200 lb capacity, accommodating most security, digital signage and control-room monitors
- Includes a PD-715SC-NS Middle Atlantic slim-profile 7-outlet, 15A power strip to centralize power for monitoring, surveillance and AV devices
| General Information | |
|---|---|
| Brand Name | Chief by Legrand |
| Manufacturer | Legrand Group |
| Product Line | Tempo |
| Product Name | Tempo Flat Panel Wall Mount System, PDU Bundle |
| Product Type | Wall Mount |
| Manufacturer Part Number | AS3LDP7 |
| Technical Information | |
| Device Supported | Flat Panel Display |
| Application/Usage | Wall |
| Maximum Load Capacity | 200 lb |
| Certifications | |
| TAA Compliant | No |
| Display & Graphics | |
| Screen Size | 86" |
| Physical Characteristics | |
| Color | Black |
| Form Factor | Wall Mount |
| VESA Mount Standard | 970 x 450 |
| VESA Mount Compatible | Yes |
| Maximum Weight Capacity | 200lb |
| Power Description | |
| Voltage Rating | 120V AC |
| Product Information | |
| Mount Type | Wall Mount |
| Orientation | Landscape |
| Maximum Screen Size Supported | 86" |
| Minimum Screen Size Supported | 49" |
| Warranty | |
| Limited Warranty | 10-Year |
| Miscellaneous | |
| Features | 0°/-10° Tilt, Built-in Lever Lock Plate, Lateral Adjustment, Lockable, Screen Level Adjustment, Tilt |
| Certifications | cULus, OSHPD, TUV, UL |
