Atlona AT-DISP-CTRL Display Controller

SKU: AT-DISP-CTRL Atlona

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

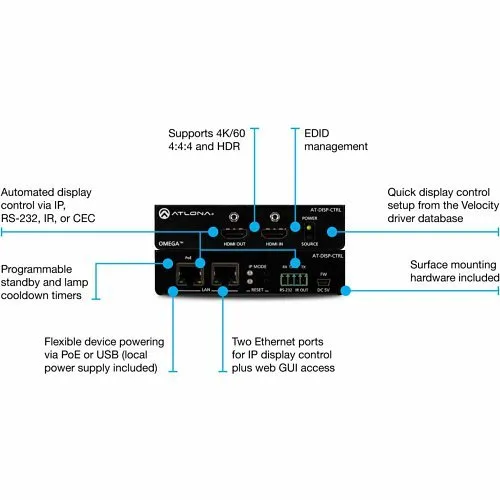

Image of 9L-DISPCTRL
Product images for Atlona AT-DISP-CTRL Display Controller. 2 image(s) available. Click on image to view full size.

Key Features

  • Automates display power and input selection when a source connects or disconnects, removing reliance on handheld remotes and reducing user friction
  • PoE or local power options simplify installation and reduce cabling in huddle rooms, meeting spaces, and monitoring stations
  • Ensures content compatibility with EDID and HDCP 2.2 management, supporting protected streams and modern 4K@60 4:4:4 HDR sources
  • Multiple control interfaces (TCP/IP, RS-232, IR, CEC) enable seamless integration with control systems and security/surveillance platforms
  • Locking HDMI input and pass-through connectors provide secure, failsafe AV connections for critical meeting and monitoring environments
  • Web-based GUI and Velocity driver library make configuration and remote management fast for IT and AV teams

Quick Specifications

Product Model
AT-DISP-CTRL
Brand Name
Atlona
Product Name
AT-DISP-CTRL Display Controller
Product Type
Display Controller
View Full Technical Specifications

Explore the details

Product information

AT-DISP-CTRL

Overview

Deliver reliable, walk-up display control for small meeting rooms, huddle spaces, digital signage and security monitoring stations with the Atlona AT-DISP-CTRL Display Controller. Designed to simplify BYOD and operator workflows, the DISP-CTRL automatically powers displays on when an active HDMI source is detected and powers them down after disconnect or inactivity — eliminating missing remotes and reducing downtime. Built for modern AV and security environments, it supports 4K/UHD at 60 Hz with 4:4:4 chroma sampling and HDMI data rates up to 18 Gbps, while EDID and HDCP 2.2 handling ensures protected content passes without interruption. Installers benefit from flexible powering (local or PoE), dual Ethernet ports with integrated switching, and multiple control options including TCP/IP, RS-232, IR and CEC for tight integration with existing control systems and surveillance platforms. The intuitive web GUI and Velocity driver library speed deployment and remote management. Ideal for conference rooms, digital signage, or monitoring rooms in security and surveillance applications — add the AT-DISP-CTRL to streamline AV control and order or contact sales for system integration support.

Features

  • Automates display power and input selection when a source connects or disconnects, removing reliance on handheld remotes and reducing user friction
  • PoE or local power options simplify installation and reduce cabling in huddle rooms, meeting spaces, and monitoring stations
  • Ensures content compatibility with EDID and HDCP 2.2 management, supporting protected streams and modern 4K@60 4:4:4 HDR sources
  • Multiple control interfaces (TCP/IP, RS-232, IR, CEC) enable seamless integration with control systems and security/surveillance platforms
  • Locking HDMI input and pass-through connectors provide secure, failsafe AV connections for critical meeting and monitoring environments
  • Web-based GUI and Velocity driver library make configuration and remote management fast for IT and AV teams
12 of 12 specifications
Technical specifications for Atlona AT-DISP-CTRL Display Controller
General Information
Brand Name Atlona
Manufacturer Atlona Technologies
Product Name AT-DISP-CTRL Display Controller
Product Type Display Controller
Product Model AT-DISP-CTRL
Manufacturer Part Number AT-DISP-CTRL
Physical Characteristics
Color Black
Product Information
Mount Type Surface Mount
Video
Graphics Mode 4K UHD
Maximum Resolution 3840 x 2160
Warranty
Limited Warranty 10-Year
Miscellaneous
Environmentally Friendly Yes
