Atlona AT-GAIN-60 2-Channel Compact Amplifier, 60W RMS

SKU: AT-GAIN-60 Atlona

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlona AT-GAIN-60 Gain At-Gain-60 Compact Amplifier - 60 W Rms - 2 Channel

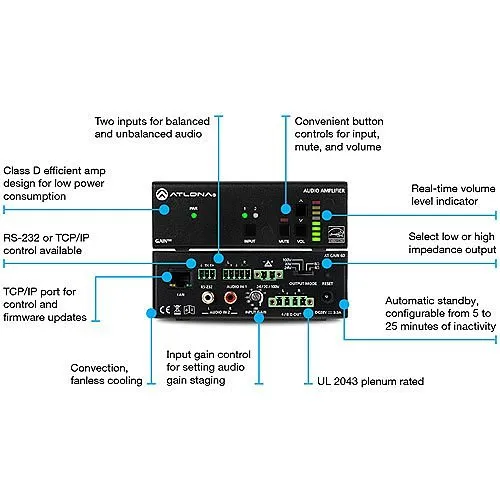

Product images for Atlona AT-GAIN-60 2-Channel Compact Amplifier, 60W RMS. 2 image(s) available. Click on image to view full size.

Key Features

  • Flexible stereo or mono deployment: run two 30W channels into 4/8Ω or a single 60W mono output for 24/70/100V speaker lines to match any installation
  • Space-saving, plenum-rated design: UL 2043 rating and convection cooling let you conceal the amplifier above ceilings without fans or extra rack space
  • Energy-efficient Class D performance: ENERGY STAR qualified 60W RMS power reduces heat and operating cost for continuous AV and security systems
  • Network and control ready: Ethernet and RS-232 control integrate with AV switchers, DSPs, and monitoring platforms for centralized management
  • Versatile audio I/O: selectable balanced/unbalanced inputs simplify connection to mixers, switchers, surveillance recorders, and paging systems

Quick Specifications

Product Model
AT-GAIN-60
Brand Name
Atlona
Product Line
Gain
Product Name
Gain-60: Stereo / Mono Power Amplifier - 60 Watts
View Full Technical Specifications

Explore the details

Product information

AT-GAIN-60

Overview

Built for reliable distributed audio in meeting rooms, classrooms, and security environments, the Atlona AT-GAIN-60 pro amplifier delivers flexible, energy-efficient amplification for commercial AV and surveillance projects. This compact 2-channel/mono power amplifier provides 2×30W into 4/8Ω or a single 60W RMS output for 24/70/100V speaker lines, making it ideal for ceiling speaker distributions, paging, or background music and monitoring in security operations. The ENERGY STAR qualified Class D design minimizes power draw and heat, while convection cooling and an UL 2043 plenum rating allow discreet installation above drop ceilings without fans. Network-enabled via Ethernet and RS-232 control, the AT-GAIN-60 integrates seamlessly with Atlona switchers, OmniStream AV systems, and third-party DSPs for centralized control and surveillance audio monitoring. With selectable balanced/unbalanced inputs and a 10-year limited warranty, it’s engineered to simplify deployments and reduce lifecycle cost. Choose the Atlona AT-GAIN-60 for dependable, space-saving amplification in AV, security, and monitoring installations — contact your distributor to specify it for your next project.

Features

  • Flexible stereo or mono deployment: run two 30W channels into 4/8Ω or a single 60W mono output for 24/70/100V speaker lines to match any installation
  • Space-saving, plenum-rated design: UL 2043 rating and convection cooling let you conceal the amplifier above ceilings without fans or extra rack space
  • Energy-efficient Class D performance: ENERGY STAR qualified 60W RMS power reduces heat and operating cost for continuous AV and security systems
  • Network and control ready: Ethernet and RS-232 control integrate with AV switchers, DSPs, and monitoring platforms for centralized management
  • Versatile audio I/O: selectable balanced/unbalanced inputs simplify connection to mixers, switchers, surveillance recorders, and paging systems
26 of 26 specifications
Technical specifications for Atlona AT-GAIN-60 2-Channel Compact Amplifier, 60W RMS
General Information
Brand Name Atlona
Manufacturer Atlona Technologies
Product Line Gain
Product Name Gain-60: Stereo / Mono Power Amplifier - 60 Watts
Product Type Amplifier
Product Model AT-GAIN-60
Country of Origin CN
Manufacturer Part Number AT-GAIN-60
Technical Information
Impedance 4Ohm
Audio Channels 2
Classification D
Audio
Maximum Frequency Response 20kHz
Minimum Frequency Response 20Hz
Certifications
Energy Star Yes
TAA Compliant No
Energy & Performance
Operating Power Consumption 60W
Network & Communication
Ethernet Yes
Physical Characteristics
Depth 8.00"
Width 5.00"
Height 1.70"
Weight 3.15lb
Power Description
Input Voltage 100V AC, 240V AC
Product Replacements & Other Alternatives
Model Number Replaces AT-PA100-G2
Warranty
Limited Warranty 10-Year
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
