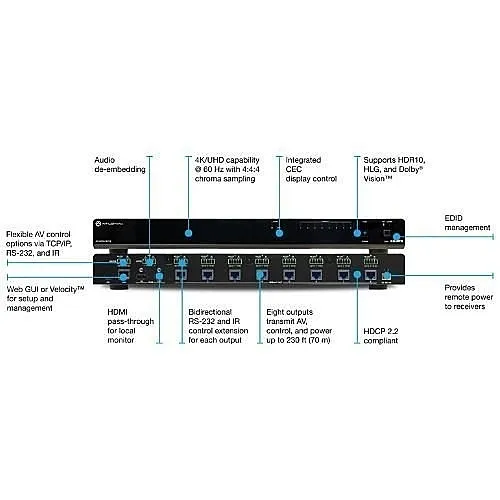

Atlona AT-HDR-CAT-8 4K Output HDR/HDMI to HDBaseT Distribution Amplifier

Scale a central HDMI source across multiple rooms, displays or security monitors with the Atlona AT-HDR-CAT-8 distribution amplifier. This Atlona 8‑output 4K HDR HDMI to HDBaseT distribution amp delivers true 4K/UHD at 60 Hz with 4:4:4 chroma and broad HDR support (HDR10, HLG, Dolby Vision), so critical surveillance and monitoring feeds retain full color fidelity and dynamic range. Each of the eight HDBaseT outputs transports HDMI video, multi‑channel audio, CEC, RS‑232 and IR — and can extend signals up to 130 ft for 4K HDR (230 ft for 1080p) over Category 6/6A cabling, reducing the need for local source hardware. Installers benefit from remote power for receivers, audio de‑embedding to a balanced analog output, EDID management, and HDBaseT link testing to speed deployments in control rooms, retail, or security operations centers. Housed in a 1U rack chassis with universal power and TCP/IP/RS‑232 control compatibility, the AT-HDR-CAT-8 is built for professional AV and security system integration. Ideal for surveillance, monitoring, digital signage and centralized AV distribution—contact your Atlona reseller to specify the AT-HDR-CAT-8 for your next project.

• Deliver pristine 4K/60 4:4:4 HDR video to eight remote displays over a single Category cable, ensuring clear visuals for security, surveillance, and digital signage
• Extend HDMI, multi‑channel audio, RS-232 and IR up to 130 ft (4K HDR) or 230 ft (1080p) to simplify long‑run monitoring and control-room deployments
• Audio de‑embedding with balanced analog output and volume control for easy integration into PA or monitoring systems
• Remote power for compatible HDBaseT receivers and built‑in link testing reduce installation time and onsite maintenance
• Rack‑mountable 1U design with EDID management, CEC, TCP/IP and RS‑232 control for reliable integration into AV and security networks
