Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power

SKU: AT-HDR-EX-100CEA-RX Atlona

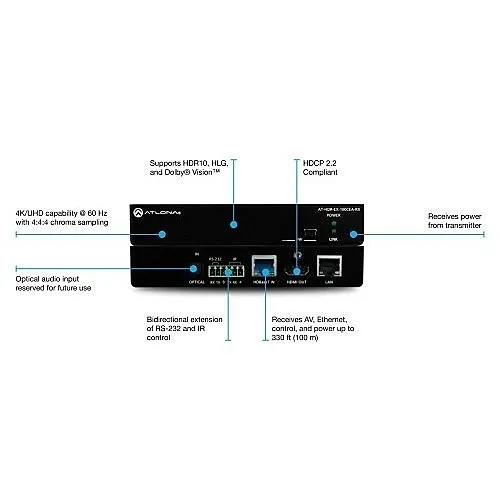

Image of 9L-ATHEX1ARX
Product images for Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power. 2 image(s) available. Click on image to view full size.

Key Features

  • Deliver pristine 4K HDR video over a single Category cable for clean, professional AV and security/surveillance installs
  • Remote PoE powering simplifies installations by eliminating local power supplies and enabling hidden mounting behind displays or in furniture
  • Passes IR, RS-232 and CEC control plus Ethernet for centralized monitoring, control room and digital signage workflows
  • Long‑reach extension up to 100 m (328') on good Category cabling keeps sources and displays physically separated for secure rooms and control centers
  • Compact enclosure and industry‑grade reliability with a 10‑year limited warranty minimize downtime and total cost of ownership

Quick Specifications

Product Model
AT-HDR-EX-100CEA-RX
Brand Name
Atlona
Product Name
4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power
Product Type
Video Extender Transmitter/Receiver
View Full Technical Specifications

Frequently Bought Together

This Item
Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power

Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power

$365.63

Frequently Bought Together (1 items)

2 items selected

Total: $390.58

Explore the details

Product information

AT-HDR-EX-100CEA-RX

Overview

The Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT receiver delivers long‑reach, professional AV distribution with the reliability required for commercial, security and surveillance environments. As a compact Atlona HDBaseT receiver, it extends 4K HDR video and multi‑channel audio over a single Category cable while carrying control (IR, RS‑232, CEC) and Ethernet back to the source. Remote PoE powering removes the need for local power, enabling discreet mounting behind displays, above projectors, or inside furniture for cleaner, tamper‑resistant installations. With support for up to 4096 x 2160 video and extension distances to 100 m (328'), this receiver is ideal for control rooms, monitoring stations, digital signage and enterprise AV where consistent image quality and centralized control matter. The dual RJ‑45 connectivity, USB pass‑through and hardened design simplify system integration and maintenance. Backed by a 10‑year limited warranty, the AT-HDR-EX-100CEA-RX reduces installation time and ongoing service risk — order now or contact sales to specify this receiver for your next surveillance, monitoring, or corporate AV project.

Features

  • Deliver pristine 4K HDR video over a single Category cable for clean, professional AV and security/surveillance installs
  • Remote PoE powering simplifies installations by eliminating local power supplies and enabling hidden mounting behind displays or in furniture
  • Passes IR, RS-232 and CEC control plus Ethernet for centralized monitoring, control room and digital signage workflows
  • Long‑reach extension up to 100 m (328') on good Category cabling keeps sources and displays physically separated for secure rooms and control centers
  • Compact enclosure and industry‑grade reliability with a 10‑year limited warranty minimize downtime and total cost of ownership
26 of 26 specifications
Technical specifications for Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power
General Information
Brand Name Atlona
Manufacturer Atlona Technologies
Product Name 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power
Product Type Video Extender Transmitter/Receiver
Product Model AT-HDR-EX-100CEA-RX
Product Series CAT
Country of Origin TW
Manufacturer Part Number AT-HDR-EX-100CEA-RX
Technical Information
Cable Type Category 7
Media Type Supported Twisted Pair
Connectivity Technology Wired
Maximum Operating Distance 328'
Number of Input Devices Supported 1
Number of Output Devices Supported 1
Display & Graphics
Maximum Video Resolution 4096 x 2160
Interfaces/Ports
Network (RJ-45) Yes
Number of USB Ports 1
Number of HDMI Outputs 1
Number of Network (RJ-45) Ports 2
Physical Characteristics
Depth 3.81"
Width 5.74"
Height 1.02"
Power Description
Power over Ethernet (PoE) Yes
Product Replacements & Other Alternatives
Model Number Replaces AT-UHD-EX-100CE-RX, AT-HDR-EX-100CEA-KIT
Video
Graphics Mode 4K UHD
Warranty
Limited Warranty 10-Year
