Atlona AT-HDR-H2H-88MA 4K HDR 8x8 HDMI Matrix Switcher
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

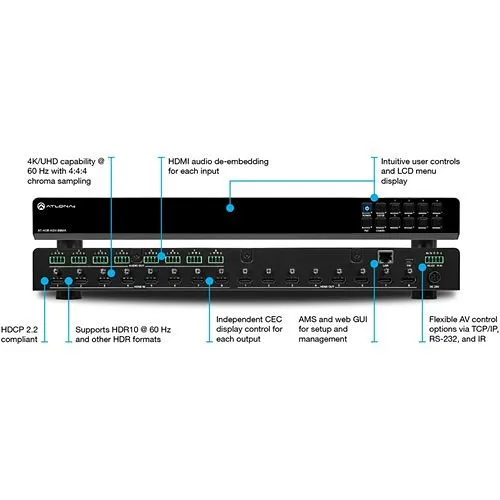

Image of 3
Key Features
- Delivers rock‑solid 4K HDR routing so integrators can reliably distribute pristine video to multiple displays without flicker or compatibility headaches
- Simplifies whole‑home and AV installations with 8×8 HDMI routing and per‑input analog audio de‑embedding for easy connection to multiroom audio or recording systems
- Ensures future readiness with HDCP 2.2 support and 18 Gbps HDMI bandwidth for full 4K/UHD @60Hz 4:4:4 and HDR content
- Flexible control options (Ethernet/RS‑232/IR) and AMS compatibility reduce programming time and streamline large deployments and monitoring applications
- Built‑in EDID and HDCP management plus independent CEC control per output avoid display negotiation issues and speed system commissioning
- Rack‑mount design and Atlona’s 10‑year limited warranty give long‑term reliability for residential, commercial, and security/surveillance installations
Quick Specifications
- Product Model
- HDR-H2H-88MA
- Brand Name
- Atlona
- Product Name
- 4K HDR 8×8 HDMI Matrix Switcher
- Product Type
- Audio/Video Switchbox
Frequently Bought Together
Atlona AT-HDR-H2H-88MA 4K HDR 8x8 HDMI Matrix Switcher
$2,007.00
3 items selected
Total: $2,042.75
Explore the details
Product information
AT-HDR-H2H-88MA
Overview
For installers and AV managers who need dependable, high‑quality distribution of 4K HDR sources, the Atlona AT-HDR-H2H-88MA HDMI matrix switcher delivers seamless switching and broad compatibility. This Atlona 8×8 HDMI matrix switcher supports full 4K/UHD @60 Hz with 4:4:4 chroma and HDCP 2.2 compliance, ensuring accurate HDR playback and compatibility with the latest Ultra HD sources and displays. Each input includes analog audio de‑embedding to feed whole‑house audio, monitoring stations, or recording devices — ideal for showrooms, control rooms, and security/surveillance monitoring where simultaneous video and audio paths are required. Network, RS‑232, and IR control plus integration with the Atlona Management System (AMS) let integrators configure, monitor, and maintain systems remotely, reducing service time across multiroom or multi‑site deployments. Built‑in EDID and HDCP management and independent CEC output control minimize setup issues so systems behave predictably at install. Backed by a 10‑year limited warranty, the HDR-H2H-88MA is suited for residential, commercial AV, and monitoring applications that demand reliable, high‑performance switching. Contact your sales rep or add to cart to specify this unit for your next AV or security integration project.
Features
- Delivers rock‑solid 4K HDR routing so integrators can reliably distribute pristine video to multiple displays without flicker or compatibility headaches
- Simplifies whole‑home and AV installations with 8×8 HDMI routing and per‑input analog audio de‑embedding for easy connection to multiroom audio or recording systems
- Ensures future readiness with HDCP 2.2 support and 18 Gbps HDMI bandwidth for full 4K/UHD @60Hz 4:4:4 and HDR content
- Flexible control options (Ethernet/RS‑232/IR) and AMS compatibility reduce programming time and streamline large deployments and monitoring applications
- Built‑in EDID and HDCP management plus independent CEC control per output avoid display negotiation issues and speed system commissioning
- Rack‑mount design and Atlona’s 10‑year limited warranty give long‑term reliability for residential, commercial, and security/surveillance installations
| General Information | |
|---|---|
| Brand Name | Atlona |
| Manufacturer | Atlona Technologies |
| Product Name | 4K HDR 8×8 HDMI Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| Product Model | HDR-H2H-88MA |
| Manufacturer Part Number | AT-HDR-H2H-88MA |
| Technical Information | |
| Device Supported | Blu-ray Disc Player, Display, Projector, Set-top Box, Speaker |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 30' |
| Number of Input Devices Supported | 8 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 8 |
| Number of HDMI Outputs | 8 |
| Number of Connectivity (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 10.00" |
| Width | 17.20" |
| Height | 1.70" |
| Weight | 8.82lb |
| Product Information | |
| Mount Type | Rack Mount |
| Number of Displays Supported | 8 |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | AT-UHD-H2H-88M |
| Video | |
| Graphics Mode | 4K UHD |
| Maximum Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 10-Year |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- AT-HDR-H2H-88MA
- Manufacturer part:
- AT-HDR-H2H-88MA
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsAtlona AT-HDR-H2H-88MA 4K HDR 8x8 HDMI Matrix Switcher
AT-HDR-H2H-88MA
