Atlona AT-HDR-SW-52 HDMI Matrix Switch, 5x2 4K/HDR HDMI 2.0B Switcher
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Simplifies multi-source AV workflows by routing five HDMI sources to two displays with mirrored or matrixed outputs for presentations and monitoring
- Preserves 4K/HDR image quality (4K/UHD @60Hz, 4:4:4) and HDCP 2.2 compliance, ensuring compatibility with the latest sources and displays
- Automatic input switching and EDID management reduce user setup and save IT support time in conference rooms, control rooms, or surveillance centers
- Built-in 4K-to-1080p downscaling and audio de-embedding (S/PDIF and balanced analog) enable seamless integration with legacy displays, codecs, and audio systems
- Flexible control via Ethernet, RS-232, and IR for easy integration with AV control systems, networked deployments, and security/monitoring applications
- Compact, under-table mountable design minimizes rack space and keeps clean installations for meeting rooms, control centers, and surveillance monitoring stations
Quick Specifications
- Product Model
- AT-HDR-SW-52
- Brand Name
- Atlona
- Product Name
- 5x2 HDMI Matrix Switcher
- Product Type
- Video Switchbox
Explore the details
Product information
AT-HDR-SW-52
Overview

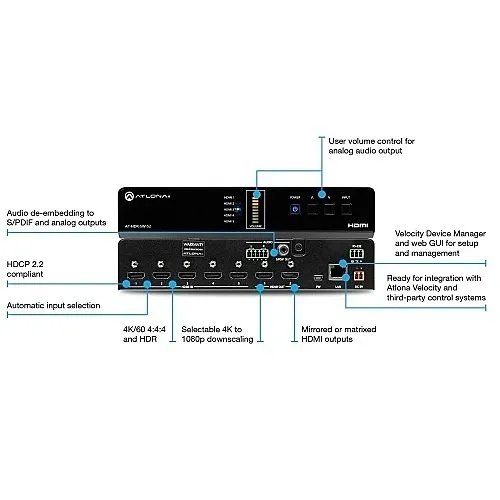

The Atlona AT-HDR-SW-52 HDMI matrix switcher delivers reliable, enterprise-grade routing for spaces that require flexible multi-display layouts and simplified operation. Designed for conference rooms, control rooms and security monitoring environments, this 5x2 HDMI matrix routes five sources to two mirrored or independent displays while preserving 4K/HDR content thanks to 4K/UHD @60Hz support, 4:4:4 chroma and HDCP 2.2 compatibility. With up to 18 Gbps throughput and selectable 4K-to-1080p downscaling, the AT-HDR-SW-52 ensures compatibility with both modern UHD screens and legacy 1080p devices or video conferencing codecs. Automatic input switching and EDID management reduce user intervention and lower support calls, while audio de-embedding (S/PDIF and balanced analog) provides a straightforward interface to external sound systems. Integrated Ethernet, RS-232 and IR control make large-scale AV, security and surveillance installations easier to program and manage. Compact and rack-friendly, the Atlona AT-HDR-SW-52 is ideal for dual-display presentation spaces, monitoring stations and distributed AV systems—contact us to specify this HDMI matrix switcher for your next deployment.
Features
- Simplifies multi-source AV workflows by routing five HDMI sources to two displays with mirrored or matrixed outputs for presentations and monitoring
- Preserves 4K/HDR image quality (4K/UHD @60Hz, 4:4:4) and HDCP 2.2 compliance, ensuring compatibility with the latest sources and displays
- Automatic input switching and EDID management reduce user setup and save IT support time in conference rooms, control rooms, or surveillance centers
- Built-in 4K-to-1080p downscaling and audio de-embedding (S/PDIF and balanced analog) enable seamless integration with legacy displays, codecs, and audio systems
- Flexible control via Ethernet, RS-232, and IR for easy integration with AV control systems, networked deployments, and security/monitoring applications
- Compact, under-table mountable design minimizes rack space and keeps clean installations for meeting rooms, control centers, and surveillance monitoring stations
| General Information | |
|---|---|
| Brand Name | Atlona |
| Manufacturer | Atlona Technologies |
| Product Name | 5x2 HDMI Matrix Switcher |
| Product Type | Video Switchbox |
| Product Model | AT-HDR-SW-52 |
| Manufacturer Part Number | ATHDRSW52 |
| Technical Information | |
| Device Supported | Display |
| Maximum Operating Distance | 30' |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Physical Characteristics | |
| Depth | 4.4" |
| Width | 8.2" |
| Height | 1.3" |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Package Contents | 5x2 HDMI Matrix Switcher External Power Supply |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- AT-HDR-SW-52
- Manufacturer part:
- AT-HDR-SW-52
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsAtlona AT-HDR-SW-52 HDMI Matrix Switch, 5x2 4K/HDR HDMI 2.0B Switcher
AT-HDR-SW-52
