Atlona AT-OME-EX-WP-KIT Wall Plate HDBaseT TX/RX for HDMI with USB
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Simplifies BYOD conferencing and collaboration by extending HDMI and USB for remote keyboard/mouse control and interactive displays
- Extends 4K/UHD video and USB 2.0 up to 330 ft (100 m) over a single HDBaseT cable for clean, reliable AV distribution
- Receiver powers the wallplate transmitter via PoE to eliminate local AC power and speed installations

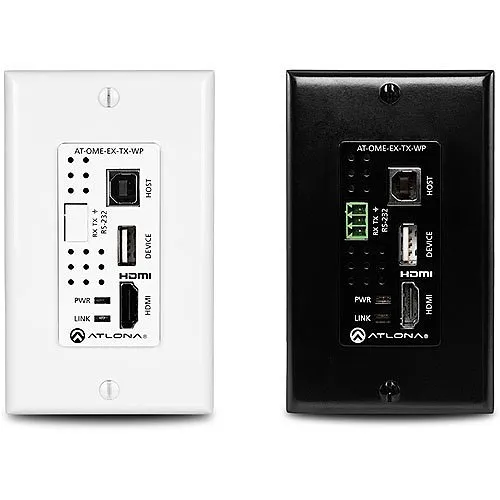

- Discreet, low-profile receiver and interchangeable black/white wallplate trims for seamless integration into meeting rooms and public spaces
- Extends RS-232 control and network signals to support automation, monitoring, and secure AV control systems
- Ideal for huddle rooms, classrooms, control rooms, and surveillance/monitoring stations where professional AV and security integration are required
Quick Specifications
- Product Model
- AT-OME-EX-WP-KIT
- Brand Name
- Atlona
- Product Line
- Omega
- Product Name
- Wallplate HDBaseT TX/RX for HDMI with USB
Frequently Bought Together
Atlona AT-OME-EX-WP-KIT Wall Plate HDBaseT TX/RX for HDMI with USB
2 items selected
Total: $24.95
Explore the details
Product information
AT-OME-EX-WP-KIT
Overview
Enable seamless BYOD conferencing and secure AV distribution with the Atlona AT-OME-EX-WP-KIT Wall Plate HDBaseT TX/RX for HDMI with USB. This compact HDMI extender kit delivers 4K/UHD video (up to 4096 x 2160) and USB 2.0 over a single HDBaseT link up to 330 feet (100 meters), letting teams share content and control peripherals without running multiple cables. The receiver supplies power to the wallplate transmitter via PoE, removing the need for local AC outlets and simplifying deployments in furniture, wall boxes, or behind displays.
Designed for AV integrators and IT managers, the AT-OME-EX-WP-KIT supports remote mouse and keyboard control, RS-232 device control, and reliable network connectivity—features that make it well suited for huddle rooms, classrooms, control centers, and surveillance monitoring stations. Interchangeable black and white trims help the wallplate blend into any environment while the low-profile receiver remains hidden for a clean installation. Upgrade meeting spaces and monitoring applications with a durable, 10-year warranted HDBaseT solution from Atlona. Contact your distributor or add the AT-OME-EX-WP-KIT to your next AV or security project.
Features
- Simplifies BYOD conferencing and collaboration by extending HDMI and USB for remote keyboard/mouse control and interactive displays
- Extends 4K/UHD video and USB 2.0 up to 330 ft (100 m) over a single HDBaseT cable for clean, reliable AV distribution
- Receiver powers the wallplate transmitter via PoE to eliminate local AC power and speed installations
- Discreet, low-profile receiver and interchangeable black/white wallplate trims for seamless integration into meeting rooms and public spaces
- Extends RS-232 control and network signals to support automation, monitoring, and secure AV control systems
- Ideal for huddle rooms, classrooms, control rooms, and surveillance/monitoring stations where professional AV and security integration are required
| General Information | |
|---|---|
| Brand Name | Atlona |
| Manufacturer | Atlona Technologies |
| Product Line | Omega |
| Product Name | Wallplate HDBaseT TX/RX for HDMI with USB |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | AT-OME-EX-WP-KIT |
| Technical Information | |
| Cable Type | Category 7 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 330' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of USB Ports | 5 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 3 |
| Physical Characteristics | |
| Color | Black, White |
| Depth | 2.64" |
| Width | 1.8" |
| Height | 4.07" |
| Form Factor | Wall Plate |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 10-Year |
| Miscellaneous | |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- AT-OME-EX-WP-KIT
- Manufacturer part:
- AT-OME-EX-WP-KIT
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsAtlona AT-OME-EX-WP-KIT Wall Plate HDBaseT TX/RX for HDMI with USB
AT-OME-EX-WP-KIT
