Atlona AT-OPUS-RX41 4-Input 4K HDR Switcher with HDMI and HDBaseT Inputs

SKU: AT-OPUS-RX41 Atlona

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

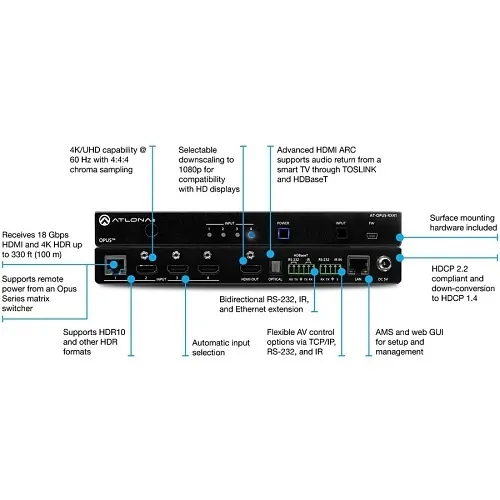

Image of 9L-OPUSRX41
Product images for Atlona AT-OPUS-RX41 4-Input 4K HDR Switcher with HDMI and HDBaseT Inputs. 3 image(s) available. Click on image to view full size.

Key Features

  • Simplifies whole-home and commercial AV by combining three HDMI inputs plus an HDBaseT input for 4×1 switching and long-run 4K HDR distribution
  • Delivers accurate 4K/UHD60 4:4:4 video and up to 18 Gbps HDMI bandwidth to preserve color and detail for displays, security cameras and monitoring systems
  • Extends Ethernet, CEC, IR and RS-232 over HDBaseT for unified control and seamless integration with control systems and surveillance setups
  • Supports ARC with TOSLINK audio return and selectable HDCP 2.2 → 1.4 down-conversion for compatibility with legacy equipment and audio systems
  • Remote power and EDID management reduce install time and allow flexible placement at displays or projectors for cleaner installations

Quick Specifications

Product Model
AT-OPUS-RX41
Brand Name
Atlona
Product Line
OPUS
Product Name
Four-Input 4K HDR Switcher with HDMI and HDBaseT Inputs
View Full Technical Specifications

Explore the details

Product information

AT-OPUS-RX41

Overview

Optimize AV distribution and security monitoring with the Atlona AT-OPUS-RX41, a professional four-input 4K HDR switcher designed for demanding residential and commercial environments. This Atlona Pro HDMI switcher accepts three HDMI sources plus an HDBaseT input to receive video, audio, control and power over a single cable—supporting runs up to 330 feet (100 m). With full 4K/UHD 60 Hz 4:4:4 support and HDMI bandwidth up to 18 Gbps, the OPUS-RX41 preserves color fidelity and detail for displays, surveillance feeds and monitoring stations. Built for integration, it extends Ethernet, CEC, IR and RS-232 over HDBaseT so control systems can manage matrix switching and local devices effortlessly. Advanced features like HDMI ARC with TOSLINK audio return, EDID management, and selectable HDCP 2.2-to-1.4 down-conversion simplify compatibility with legacy AV gear and audio processors. Remote power capability and compact form factor make installation at a display or projector fast and tidy. Ideal for AV integrators deploying whole-house entertainment, corporate meeting rooms, or security and surveillance systems—contact us to specify the OPUS-RX41 for your next installation.

Features

  • Simplifies whole-home and commercial AV by combining three HDMI inputs plus an HDBaseT input for 4×1 switching and long-run 4K HDR distribution
  • Delivers accurate 4K/UHD60 4:4:4 video and up to 18 Gbps HDMI bandwidth to preserve color and detail for displays, security cameras and monitoring systems
  • Extends Ethernet, CEC, IR and RS-232 over HDBaseT for unified control and seamless integration with control systems and surveillance setups
  • Supports ARC with TOSLINK audio return and selectable HDCP 2.2 → 1.4 down-conversion for compatibility with legacy equipment and audio systems
  • Remote power and EDID management reduce install time and allow flexible placement at displays or projectors for cleaner installations
27 of 27 specifications
Technical specifications for Atlona AT-OPUS-RX41 4-Input 4K HDR Switcher with HDMI and HDBaseT Inputs
General Information
Brand Name Atlona
Manufacturer Atlona Technologies
Product Line OPUS
Product Name Four-Input 4K HDR Switcher with HDMI and HDBaseT Inputs
Product Type Audio/Video Switchbox
Product Model AT-OPUS-RX41
Manufacturer Part Number AT-OPUS-RX41
Technical Information
Device Supported Display
Media Type Supported Twisted Pair
Connectivity Technology Wired
Maximum Operating Distance 330'
Number of Input Devices Supported 4
Display & Graphics
Maximum Video Resolution 4096 x 2160
Environmental Conditions
Operating Temperature (T-T) 32-122°F
Interfaces/Ports
Number of USB Ports 1
Number of HDMI Inputs 3
Number of HDMI Outputs 1
Number of Connectivity (RJ-45) Ports 2
Physical Characteristics
Depth 6.00"
Width 8.60"
Height 1.00"
Product Information
Number of Displays Supported 1
Video
Graphics Mode 4K UHD
Maximum Resolution 3840 x 2160
Warranty
Limited Warranty 10-Year
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
