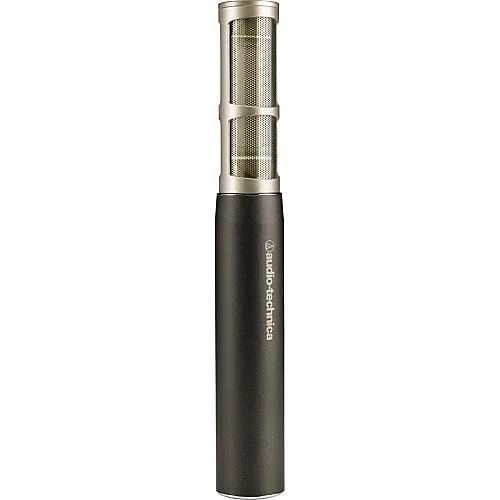

Audio-Technica AT5045 Instrument Condenser Microphone
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Key Features
- Studio-grade instrument capture that delivers natural, detailed sound for acoustic guitar, strings, percussion and overheads
- Exceptional dynamic range and high-SPL capability to preserve transients and prevent distortion on loud sources
- Cardioid condenser capsule with 20 Hz–20 kHz response and -35 dB sensitivity for focused pickup and reduced bleed

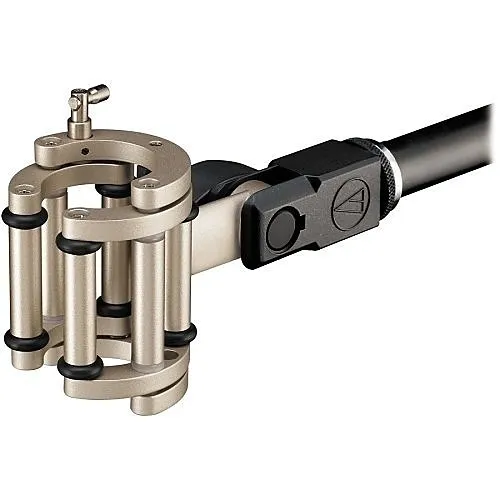

- Rugged aluminum/brass housing, internal shock mount and AT8481 isolation clamp for vibration-free mounting in studio, live, or AV/security installations
- Professional XLR output and transformer-coupled circuitry for smooth tonal character and reliable integration into pro audio, broadcast, and monitoring systems
Quick Specifications
- Product Model
- AT5045
- Brand Name
- Audio-Technica
- Product Name
- Cardioid Condenser Instrument Microphone
- Product Type
- Microphone
Explore the details
Product information
AT5045
Overview
Capture instruments with studio precision using the Audio-Technica AT5045 instrument condenser microphone. Engineered to deliver pristine, natural tone and exceptional dynamic range, the AT5045 excels on acoustic guitar, strings, percussion and overheads — making it a go-to choice for recording studios, live sound engineers and AV integrators. The stick-style cardioid condenser design offers more diaphragm surface than many large-diaphragm side-address mics, providing detailed transient response and low self-noise across a 20 Hz–20 kHz frequency range. With a sensitivity of -35 dB and robust high-SPL handling, the AT5045 preserves nuance on quiet passages and clarity on louder sources. Built for professional environments, its aluminum and brass housing, floating internal shock mount and included AT8481 isolation clamp minimize vibration and handling noise for dependable results in broadcast, monitoring, and even security/surveillance audio capture. XLR connectivity and transformer-coupled output ensure smooth integration into consoles, recorders and AV racks. Add the Audio-Technica AT5045 to your mic locker to upgrade instrument tracking, live reinforcement, or critical monitoring applications — order now to hear the difference.
Features
- Studio-grade instrument capture that delivers natural, detailed sound for acoustic guitar, strings, percussion and overheads
- Exceptional dynamic range and high-SPL capability to preserve transients and prevent distortion on loud sources
- Cardioid condenser capsule with 20 Hz–20 kHz response and -35 dB sensitivity for focused pickup and reduced bleed
- Rugged aluminum/brass housing, internal shock mount and AT8481 isolation clamp for vibration-free mounting in studio, live, or AV/security installations
- Professional XLR output and transformer-coupled circuitry for smooth tonal character and reliable integration into pro audio, broadcast, and monitoring systems
| General Information | |
|---|---|
| Brand Name | Audio-Technica |
| Manufacturer | Audio-Technica U.S., Inc |
| Product Name | Cardioid Condenser Instrument Microphone |
| Product Type | Microphone |
| Product Model | AT5045 |
| Country of Origin | JP |
| Manufacturer Part Number | AT5045 |
| Technical Information | |
| Sensitivity | -35.0dB |
| Polar Pattern | Cardioid |
| Host Interface | XLRM |
| Connectivity Technology | Wired |
| Audio | |
| Maximum Frequency Response | 20.0kHz |
| Minimum Frequency Response | 20.0000Hz |
| Microphone | |
| Microphone Type | Condenser |
| Physical Characteristics | |
| Color | Gray |
| Form Factor | Shoe Mount |
| Product Information | |
| Length | 7.00" |
| Warranty | |
| Limited Warranty | 5-Year |
