Audio-Technica ATDM-0604A 6- Channel Digital Smart Mixer
Image of 4
Key Features
- Simplifies multi-microphone management with automatic SmartMixer operation, reducing manual fader work and improving meeting intelligibility
- Delivers clear speech in conferencing and security monitoring with per-channel Acoustic Echo Cancellation (AEC) and assignable noise cancellation
- Remote configuration via Web Remote, USB and Ethernet for easy control from PC, Mac, iOS or Android — ideal for distributed AV and surveillance installations

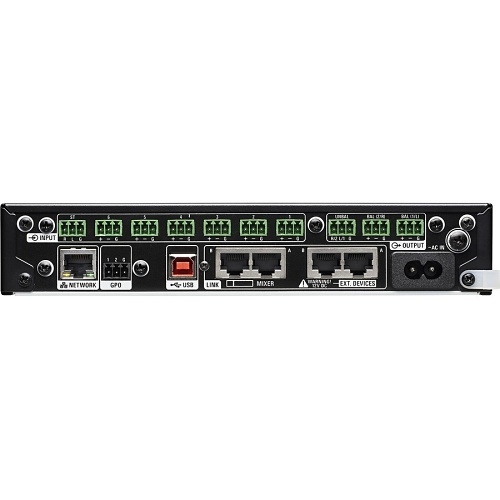

- Flexible I/O: six mic/line inputs, stereo USB audio and balanced outputs to integrate with recorders, DSPs, and broadcast or monitoring systems
- Scalable deployments using Audio-Technica Link A/B ports to chain up to eight mixers over CAT5e for large conference rooms, courtrooms or control centers
- Built-in EQ, compressors, feedback suppressors and SmartMixer gain-sharing/gate modes for polished, consistent audio without additional outboard gear
Quick Specifications
- Product Model
- ATDM-0604A
- Brand Name
- Audio-Technica
- Product Line
- SmartMixer
- Product Name
- SmartMixer ATDM-0604A Audio Mixer
Explore the details
Product information
ATDM-0604A
Overview
For clear, hands-free audio in conference rooms, courtrooms, broadcast suites and security monitoring centers, the Audio-Technica ATDM-0604A 6-Channel Digital SmartMixer simplifies microphone management and delivers professional speech clarity. This smart mixer combines six mic/line inputs with USB and Ethernet connectivity so integrators can route audio to recorders, conferencing codecs and monitoring systems while controlling settings remotely via Web Remote. Each input includes high-performance Acoustic Echo Cancellation (AEC), noise cancellation and a 4-band input EQ with compressor/de-esser to keep spoken audio intelligible in live and surveillance applications. SmartMixer logic with selectable gain-sharing or gate mode automatically manages multiple mics, reducing background noise and feedback; eight assignable 8-band feedback suppressors and output PEQs provide further system tuning. Rack-mountable and low-power, the ATDM-0604A also supports Audio-Technica Link A/B for chaining mixers over CAT5e — an ideal solution for scalable AV and security installations. Choose the ATDM-0604A to streamline conference audio, improve monitoring accuracy, and simplify deployment; contact us to specify or integrate this Audio-Technica pro audio mixer into your next project.
Features
- Simplifies multi-microphone management with automatic SmartMixer operation, reducing manual fader work and improving meeting intelligibility
- Delivers clear speech in conferencing and security monitoring with per-channel Acoustic Echo Cancellation (AEC) and assignable noise cancellation
- Remote configuration via Web Remote, USB and Ethernet for easy control from PC, Mac, iOS or Android — ideal for distributed AV and surveillance installations
- Flexible I/O: six mic/line inputs, stereo USB audio and balanced outputs to integrate with recorders, DSPs, and broadcast or monitoring systems
- Scalable deployments using Audio-Technica Link A/B ports to chain up to eight mixers over CAT5e for large conference rooms, courtrooms or control centers
- Built-in EQ, compressors, feedback suppressors and SmartMixer gain-sharing/gate modes for polished, consistent audio without additional outboard gear
| General Information | |
|---|---|
| Brand Name | Audio-Technica |
| Manufacturer | Audio-Technica U.S., Inc |
| Product Line | SmartMixer |
| Product Name | SmartMixer ATDM-0604A Audio Mixer |
| Product Type | Audio Mixer |
| Product Model | ATDM-0604A |
| Application/Usage | Conferencing, Meeting |
| Country of Origin | CN |
| Manufacturer Part Number | ATDM-0604A |
| Technical Information | |
| Device Supported | Radio |
| Number of EQ Bands | 4 |
| Interfaces/Ports | |
| Microphone | Yes |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Maximum Power Consumption | 17.00W |
| Product Information | |

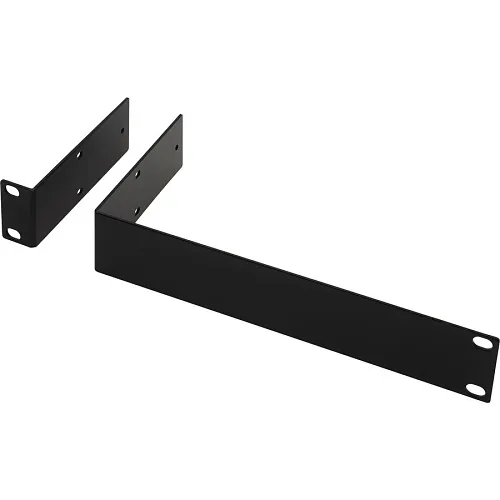

| Mount Type | Rack Mount |
| Warranty | |
| Limited Warranty | 2-Year |
