Audio-Technica ATND1061LK Beamforming Ceiling Array Microphone
Image of 8
Key Features
- Consistent, natural speech capture across the room using six output channels and beamforming for reliable conference audio
- Flexible coverage with up to 32 user-defined pickup zones (16 Coverage + 16 Priority) to prioritize known participants and adapt to spontaneous speakers
- Built-in DSP (AEC, noise reduction, automix, AGC, 4-band EQ) and proprietary VAD minimize background noise and improve intelligibility for AV, security, and monitoring applications
- Easy network integration via Audio-Technica LINK, VISCA over IP for PTZ control, and Euroblock/RJ-45 interfaces for streamlined deployment
- Plenum-rated (UL 2043), VESA/flush/surface-mountable design with included hardware and IR remote for quick mute and preset recall
- 5-year limited warranty and user-friendly Digital Microphone Manager software simplify setup and long-term reliability
Quick Specifications
- Product Model
- ATND1061
- Brand Name
- Audio-Technica
- Product Line
- A-T Link
- Product Name
- Beamforming Ceiling Array Microphone ATND1061
Explore the details
Product information
ATND1061LK
Overview
For clear, professional meeting audio and dependable monitoring, the Audio-Technica ATND1061LK Beamforming Ceiling Array Microphone delivers focused speech capture and streamlined network integration. Designed for conference rooms, boardrooms and AV/security monitoring environments, this ceiling-mounted array uses six individual output channels and up to 32 user-defined pickup zones to keep conversations intelligible and reduce distracting room noise. With a frequency response of 60 Hz–18 kHz and advanced voice activity detection (VAD), the ATND1061LK isolates voices from paper rustle, HVAC noise and other environmental sounds. Onboard DSP features — automix, acoustic echo cancellation, noise reduction, automatic gain control and 4-band EQ — ensure consistent levels for remote participants and surveillance feeds without extra DSP hardware. Installation is simple: UL 2043 plenum compliance, multiple mounting options, and Audio-Technica LINK networking plus VISCA over IP for PTZ camera control. Ideal for unified communications, AV-integrated security, or live monitoring, the ATND1061LK provides scalable coverage and reliable performance. Contact sales or add to your AV design to upgrade conference audio and surveillance monitoring today.
Features
- Consistent, natural speech capture across the room using six output channels and beamforming for reliable conference audio
- Flexible coverage with up to 32 user-defined pickup zones (16 Coverage + 16 Priority) to prioritize known participants and adapt to spontaneous speakers
- Built-in DSP (AEC, noise reduction, automix, AGC, 4-band EQ) and proprietary VAD minimize background noise and improve intelligibility for AV, security, and monitoring applications
- Easy network integration via Audio-Technica LINK, VISCA over IP for PTZ control, and Euroblock/RJ-45 interfaces for streamlined deployment

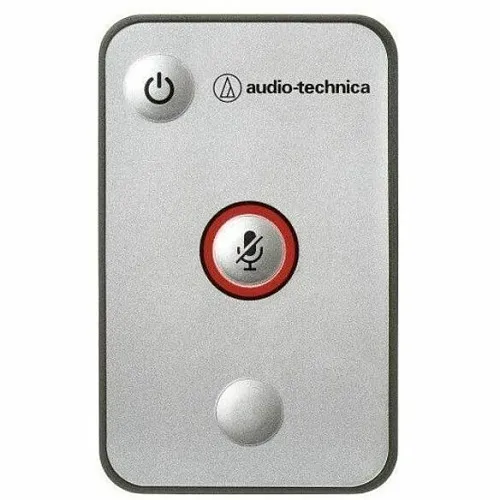

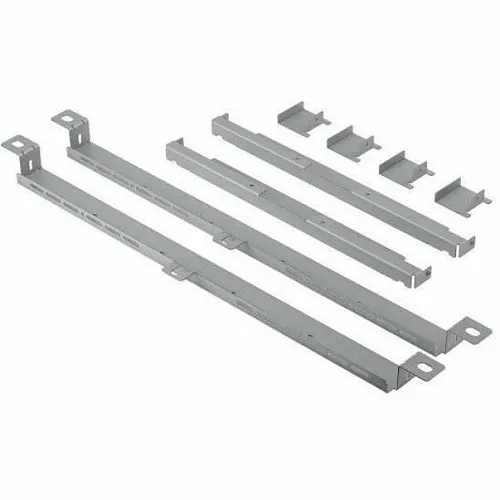

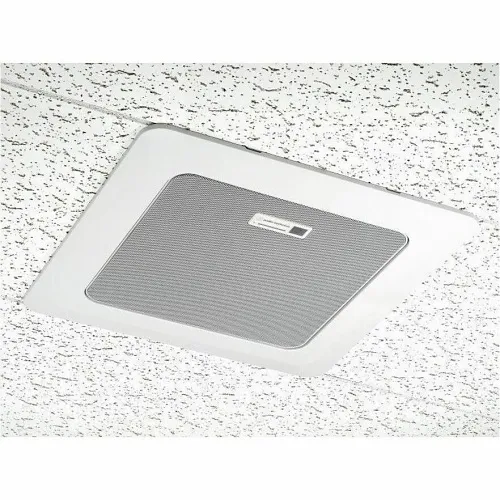

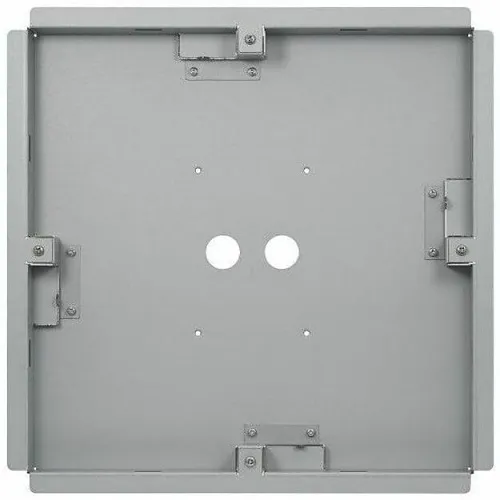

- Plenum-rated (UL 2043), VESA/flush/surface-mountable design with included hardware and IR remote for quick mute and preset recall
- 5-year limited warranty and user-friendly Digital Microphone Manager software simplify setup and long-term reliability
| General Information | |
|---|---|
| Brand Name | Audio-Technica |
| Manufacturer | Audio-Technica U.S., Inc |
| Product Line | A-T Link |
| Product Name | Beamforming Ceiling Array Microphone ATND1061 |
| Product Type | Beamforming Array, Network Mics |
| Product Model | ATND1061 |
| Product Series | ATND |
| Application/Usage | Boardroom, Conference Room, Meeting Room, Voice |
| Manufacturer Part Number | ATND1061LK |
| Technical Information | |
| Host Interface | Euroblock, RJ-45 |
| Connectivity Technology | Wired |
| Audio | |
| Maximum Frequency Response | 18kHz |
| Minimum Frequency Response | 60Hz |
| Microphone | |
| Microphone Type | Gooseneck |
| Microphone Technology | Dynamic |
| Physical Characteristics | |
| Depth | 9.00" |
| Width | 9.00" |
| Height | 1.20" |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | UL |
