Audio-Technica ATW-3212/C510EE1 3000 Series Frequency-Agile True Diversity UHF Wireless Systems, 530-589.975 MHz
Key Features
- Reliable long-range operation up to 328 ft (100 m) for confident coverage in live events, corporate AV, and security monitoring
- Wide 60 MHz UHF tuning bandwidth (530–589.975 MHz EE1 band) to find clear channels in congested RF environments
- True Diversity reception and Auto Squelch reduce dropouts and false noise, keeping critical audio clean for surveillance and broadcast
- Quick setup with frequency scan, IR sync and selectable backup frequency for fast recovery from interference
- Durable metal transmitters, interchangeable handheld capsule and secure cH-style body-pack connector for flexible mic options and rugged field use
Quick Specifications
- Product Model
- ATW-3212/C510
- Brand Name
- Audio-Technica
- Product Name
- 3000 ATW-3212/C510 Wireless Microphone System
- Product Type
- Wireless Microphone System
Explore the details
Product information
ATW-3212/C510EE1
Overview

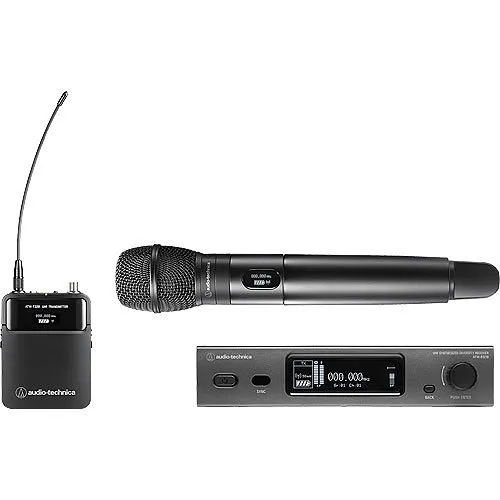

Get dependable, interference-resistant wireless audio for professional applications with the Audio-Technica ATW-3212/C510EE1 3000 Series wireless microphone system. Built for installers, AV managers and security teams, this UHF wireless system provides a 60 MHz tuning bandwidth in the EE1 band (530–589.975 MHz) so you can lock onto clean frequencies even in crowded RF environments. True Diversity reception and Auto Squelch help prevent dropouts and background noise, while a Class-leading operating range of up to 328 ft (100 m) keeps talent and transmitters free to move. Transmitters offer rugged metal construction, a user-selectable backup frequency via the multifunction button and about 9.5 hours of runtime on two AA batteries for all-day reliability. Setup is fast with frequency scan and IR sync, and the handheld accepts interchangeable A-T capsules for tailored vocal response. Ideal for live sound, corporate AV, houses of worship, and security/surveillance audio monitoring, the ATW-3212/C510EE1 delivers professional-grade wireless performance and operational flexibility. Add it to your kit for reliable, mission-critical audio.
Features
- Reliable long-range operation up to 328 ft (100 m) for confident coverage in live events, corporate AV, and security monitoring
- Wide 60 MHz UHF tuning bandwidth (530–589.975 MHz EE1 band) to find clear channels in congested RF environments
- True Diversity reception and Auto Squelch reduce dropouts and false noise, keeping critical audio clean for surveillance and broadcast
- Quick setup with frequency scan, IR sync and selectable backup frequency for fast recovery from interference
- Durable metal transmitters, interchangeable handheld capsule and secure cH-style body-pack connector for flexible mic options and rugged field use
| General Information | |
|---|---|
| Brand Name | Audio-Technica |
| Manufacturer | Audio-Technica U.S., Inc |
| Product Name | 3000 ATW-3212/C510 Wireless Microphone System |
| Product Type | Wireless Microphone System |
| Product Model | ATW-3212/C510 |
| Product Series | 3000 |
| Country of Origin | CN |
| Manufacturer Part Number | ATW-3212/C510EE1 |
| Technical Information | |
| Operating Range | 328.08 ft |
| Audio | |
| Maximum Frequency Response | 15kHz |
| Minimum Frequency Response | 31Hz |
| Battery Information | |
| Battery Run Time | 9hr |
| Battery Chemistry | Alkaline (Manganese Dioxide) |
| Battery Size Supported | AA |
| Number of Batteries Supported | 2 |
| Certifications | |
| TAA Compliant | No |
| Interfaces/Ports | |
| XLR | Yes |
| Network & Communication | |
| Maximum Operating Frequency | 589.98MHz |
| Minimum Operating Frequency | 530.00MHz |
| Physical Characteristics | |
| Color | Beige |
| Depth | 7.50" |
| Width | 8.30" |
| Height | 1.70" |
| Weight | 2.42lb |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
