AVYCON AVR-DSV804H Diversity Series 4K Ultra HD 4-Channel Hybrid DVR, NDAA Compliant, HDD Not Included

SKU: AVR-DSV804H AVYCON

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

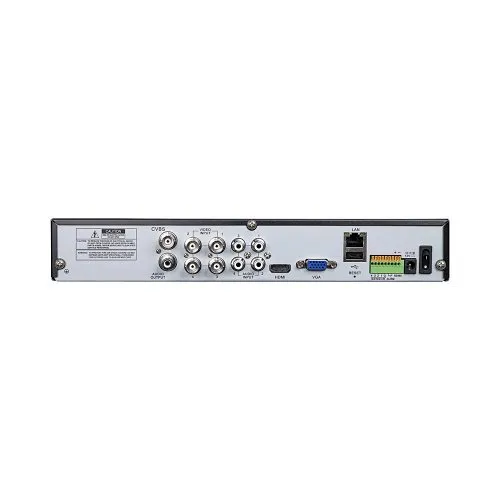

Image of BX-DSV804H
Product images for AVYCON AVR-DSV804H Diversity Series 4K Ultra HD 4-Channel Hybrid DVR, NDAA Compliant, HDD Not Included. 2 image(s) available. Click on image to view full size.

Key Features

  • Efficient H.265 compression that reduces storage costs and bandwidth while extending video retention for long-term surveillance.
  • Flexible 4-channel hybrid design lets you mix analog and IP cameras to upgrade systems gradually without ripping out existing cabling.
  • NDAA compliant for secure procurement in government and enterprise environments, simplifying vendor qualification and deployment.
  • Remote management and Ethernet connectivity enable centralized monitoring, real-time alerts, and easy off-site access for security teams.
  • Customizable storage (HDD not included) lets you select capacity based on retention policies and budget, with HDMI output for local playback.

Quick Specifications

Product Model
AVR-DSV804H
Bandwidth
36 Mbps
Brand Name
AVYCON
Product Name
4 CH. 4K UHD Digital Video Recorder
View Full Technical Specifications

Explore the details

Product information

AVR-DSV804H

Overview

Optimize your security monitoring with the AVYCON AVR-DSV804H Diversity Series 4K Ultra HD 4-Channel Hybrid DVR. Built for commercial and institutional surveillance, this AVYCON hybrid video recorder delivers high-quality footage while keeping storage and bandwidth efficient thanks to H.265 codec support. The 4-channel design supports a mix of analog and IP cameras—facilitating phased upgrades and protecting existing investment—while handling up to 8MP effective camera resolution and a 36 Mbps throughput for crisp, reliable capture.

NDAA compliance makes this unit suitable for regulated procurement, and its remote management features and Ethernet connectivity provide centralized access, live monitoring, and simplified maintenance. HDMI and USB ports support local viewing and quick export, and the unit’s low power draw helps lower operating costs. Note that the HDD is not included, giving you the flexibility to choose the right storage size and RAID configuration for your retention needs.

Ideal for retail, small-to-medium businesses, government sites, and multi-site deployments — upgrade your security infrastructure with this reliable hybrid DVR and start improving surveillance coverage today.

Features

  • Efficient H.265 compression that reduces storage costs and bandwidth while extending video retention for long-term surveillance.
  • Flexible 4-channel hybrid design lets you mix analog and IP cameras to upgrade systems gradually without ripping out existing cabling.
  • NDAA compliant for secure procurement in government and enterprise environments, simplifying vendor qualification and deployment.
  • Remote management and Ethernet connectivity enable centralized monitoring, real-time alerts, and easy off-site access for security teams.
  • Customizable storage (HDD not included) lets you select capacity based on retention policies and budget, with HDMI output for local playback.
20 of 20 specifications
Technical specifications for AVYCON AVR-DSV804H Diversity Series 4K Ultra HD 4-Channel Hybrid DVR, NDAA Compliant, HDD Not Included
General Information
Bandwidth 36 Mbps
Brand Name AVYCON
Manufacturer AVYCON
Product Name 4 CH. 4K UHD Digital Video Recorder
Product Type Video Surveillance Station
Manufacturer Part Number AVR-DSV804H
Technical Information
Video Formats H.264, H.265
Power Consumption 4.70W
Maximum Frame Rate 30fps
Number of Channels 4
Video Signal Format NTSC
Connectivity Technology Wired
Effective Camera Resolution 8MP
Interfaces/Ports
HDMI Yes
Number of USB Ports 1
Network & Communication
Ethernet Yes
Remote Management Yes
Storage
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Miscellaneous
Country of Origin CN
