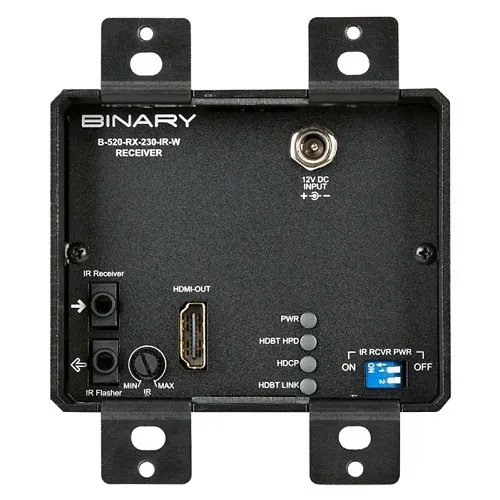

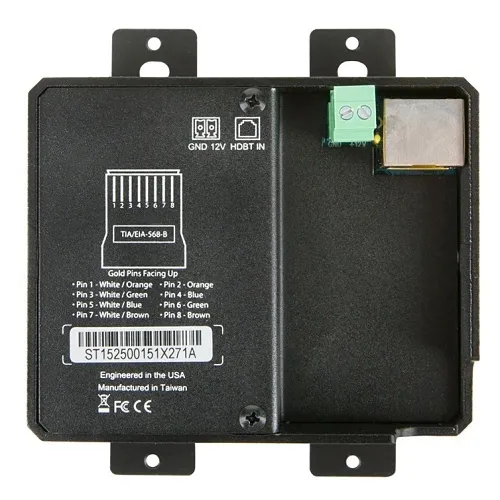

Binary B-520-RX-230-IR-W 520 Series 1080p HDBaseT Receiver with IR, In-Wall
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Extend HDMI signals up to long distances using a single CAT cable for clean, reliable AV distribution
- Preserve image and audio fidelity with support for up to 4K@30Hz and 7.1‑channel lossless audio for security and surveillance feeds

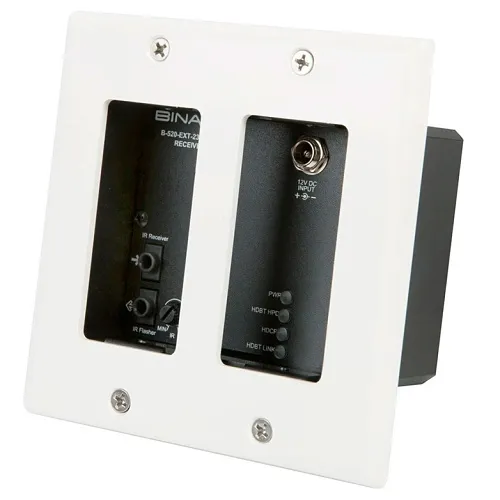

- In‑wall, dual‑gang design creates a professional, low‑profile installation ideal for control rooms and conference spaces
- Plug‑and‑play HDBaseT interoperability reduces setup time and eliminates complex EDID/EQ configuration
- Bi‑directional IR and RS‑232 support allow seamless integration with control systems for centralized monitoring and automation
- Firmware upgradeable for futureproofing and long-term deployment stability
Quick Specifications
- Product Model
- B-520-RX-230-IR-W
- Brand Name
- Binary
- Product Type
- Receiver
- Product Series
- 520
Explore the details
Product information
B-520-RX-230-IR-W
Overview
When long-distance AV reliability matters — for surveillance, security monitoring, or distributed digital signage — the Binary B-520-RX-230-IR-W HDBaseT Receiver delivers. This in-wall HDMI extender receives pristine video and audio over a single CAT cable, supporting up to 4K Ultra HD @30Hz while remaining fully compatible with Full HD/1080p sources. It also carries 7.1 channels of lossless audio, ensuring recorded and live monitoring systems retain critical detail.
Designed for installers and integrators, the B-520-RX-230-IR-W fits a dual-gang wall plate for a discreet, professional appearance and minimizes rack clutter. Plug-and-play HDBaseT interoperability and bi-directional IR reduce configuration time and allow remote control of displays and decoders from the operator station. RS-232 firmware upgrade capability keeps systems current without disruptive hardware swaps.
Choose Binary’s 520 Series receiver to simplify networking, secure high-quality video distribution, and streamline integration in security, surveillance, conferencing, and monitoring applications. Add the B-520-RX-230-IR-W to your next installation to improve signal reach and system control.
Features
- Extend HDMI signals up to long distances using a single CAT cable for clean, reliable AV distribution
- Preserve image and audio fidelity with support for up to 4K@30Hz and 7.1‑channel lossless audio for security and surveillance feeds
- In‑wall, dual‑gang design creates a professional, low‑profile installation ideal for control rooms and conference spaces
- Plug‑and‑play HDBaseT interoperability reduces setup time and eliminates complex EDID/EQ configuration
- Bi‑directional IR and RS‑232 support allow seamless integration with control systems for centralized monitoring and automation
- Firmware upgradeable for futureproofing and long-term deployment stability
| General Information | |
|---|---|
| Brand Name | Binary |
| Product Type | Receiver |
| Product Series | 520 |
| Manufacturer Part Number | B-520-RX-230-IR-W |
| Technical Information | |
| Power Consumption | 12.0000W |
| Identification Method | HDBaseT |
| Certifications | |
| Certifications | CE, FCC, RoHS |
| Environmental Conditions | |
| Storage Temperature (T-T) | -4 -140°F |
| Operating Temperature (T-T) | 32-104°F |
| Interfaces/Ports | |
| Number of HDMI Ports | 1 |
| Physical Characteristics | |
| Dimensions | 3.48" x 2.8" x 0.66" |
| Video | |
| Graphics Mode | 4K UHD |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Compatibility | Control4 |
