Binary B-540-EXT-230-IR 540 Series 4K Ultra HD HDBaseT Extender with IR
Image of 4
Key Features
- Deliver crystal-clear long‑reach video: transmit 4K@60Hz (4:2:0) up to 130' and 1080p up to 230' over a single Cat5e/6 cable for reliable AV and surveillance playback
- Faster, cleaner installs: Bi-directional Power over Cable (PoC) removes the need for rear‑TV power supplies and reduces installation time and clutter
- Plug-and-play operation: Automatic EDID/EQ handling minimizes setup time and troubleshooting on site
- Remote control and system integration: Bi-directional IR and Control4 compatibility enable centralized control in security and monitoring deployments
- Robust protection and warranty: Built-in ESD/surge protection plus a 2-year limited warranty help safeguard mission-critical installations
Quick Specifications
- Product Model
- B-540-EXT-230-IR
- Brand Name
- Binary
- Product Type
- Extender
- Product Series
- 540
Explore the details
Product information
B-540-EXT-230-IR
Overview

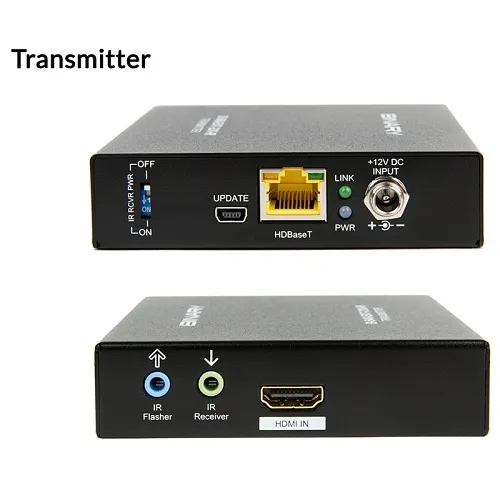

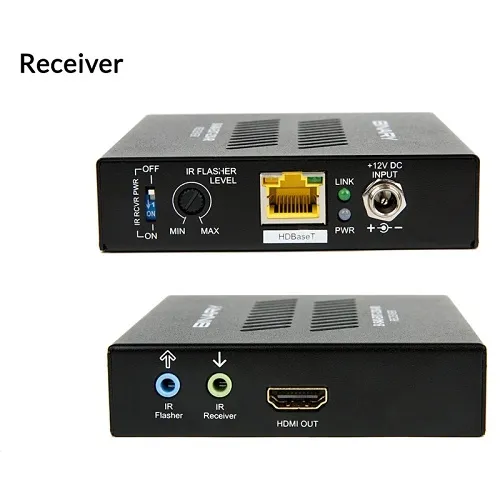

Deliver dependable long‑distance 4K video and remote control for professional AV, security, and surveillance applications with the Binary B-540-EXT-230-IR HDMI extender. This HDBaseT extender sends 4K@60Hz (4:2:0) up to 130' and full 1080p up to 230' over a single Cat5e/6 cable, while supporting HDMI 2.0, HDCP 2.2 and 7.1 channels of lossless audio for immersive monitoring or presentation systems. Bi-directional Power over Cable (PoC) removes bulky power bricks behind displays and speeds installs, and plug-and-play operation eliminates tedious EDID and EQ configuration. Built-in ESD and surge protection safeguard equipment in demanding environments, and bi-directional IR makes it easy to integrate with control systems for remote management. Compact, metal construction and Control4 compatibility make the B-540-EXT-230-IR an ideal choice for digital signage, conference rooms, security control centers, and distributed monitoring installations. Streamline your deployment and ensure clear, reliable video and control—contact us to specify this Binary HDBaseT extender for your next AV or surveillance project.
Features
- Deliver crystal-clear long‑reach video: transmit 4K@60Hz (4:2:0) up to 130' and 1080p up to 230' over a single Cat5e/6 cable for reliable AV and surveillance playback
- Faster, cleaner installs: Bi-directional Power over Cable (PoC) removes the need for rear‑TV power supplies and reduces installation time and clutter
- Plug-and-play operation: Automatic EDID/EQ handling minimizes setup time and troubleshooting on site
- Remote control and system integration: Bi-directional IR and Control4 compatibility enable centralized control in security and monitoring deployments
- Robust protection and warranty: Built-in ESD/surge protection plus a 2-year limited warranty help safeguard mission-critical installations
| General Information | |
|---|---|
| Brand Name | Binary |
| Product Type | Extender |
| Product Series | 540 |
| Manufacturer Part Number | B-540-EXT-230-IR |
| Technical Information | |
| Power Consumption | 12.0000W |
| Identification Method | HDBaseT |
| Certifications | |
| Certifications | CE, FCC, RoHS |
| Environmental Conditions | |
| Operating Humidity | 20-90% RH (Non-condensing) |
| Operating Temperature (T-T) | 32-104°F |
| Physical Characteristics | |
| Color | Black |
| Material | Metal |
| Dimensions | 6.25" x 3.1" x 1.3" |
| Rack Width | 6.3" |
| Video | |
| Graphics Mode | 4K UHD |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Compatibility | Control4 |
