Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant

SKU: B127-200-H Eaton Tripp Lite

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

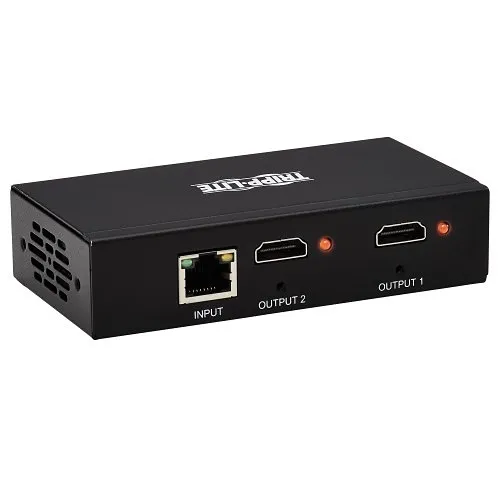

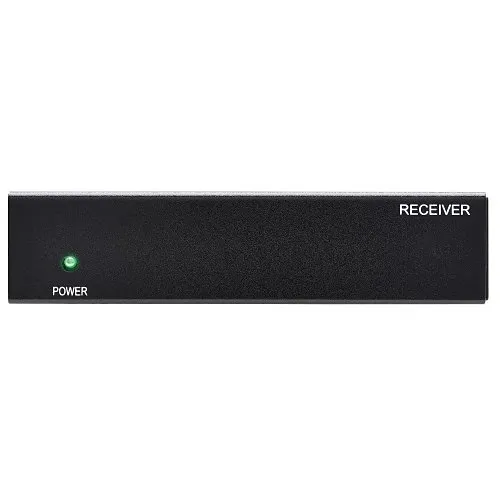

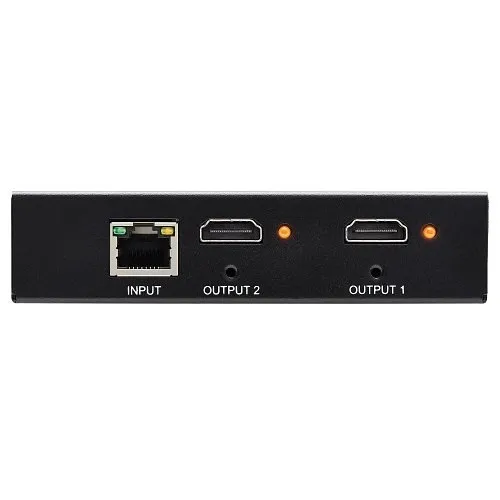

Image of TC-B127200H
Product images for Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant. 6 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Extend clean, low-latency 4K@60Hz video and 7.1 audio to two HDMI displays up to 125' over Cat6—ideal for digital signage and conference rooms
  • Built-in Power over Cable (PoC) removes the need for a local power brick, simplifying installs in tight or remote locations
  • Dual HDMI outputs let you mirror content to two screens for simultaneous presentations, retail displays, or monitoring stations
  • HDCP 2.2 and 4:4:4 color support ensure compatibility with streaming, PC graphics and high-fidelity video for security, surveillance and AV systems
  • Rack-, wall- or pole-mountable compact receiver for discreet deployment in corporate, education or house-of-worship environments

Quick Specifications

Product Model
B127-200-H
Brand Name
Eaton Tripp Lite
Product Name
B127-200-H 2-Port HDMI over Cat6 Active Remote Receiver
Product Type
Video Extender Receiver
View Full Technical Specifications

Frequently Bought Together

This Item
Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant

Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant

$147.16

Frequently Bought Together (1 items)

2 items selected

Total: $172.11

Product Information Tabs

Overview

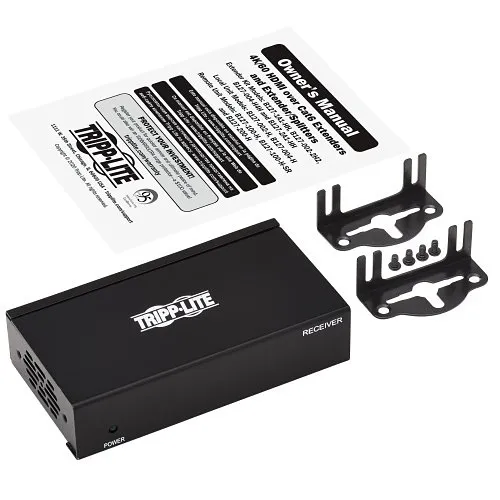

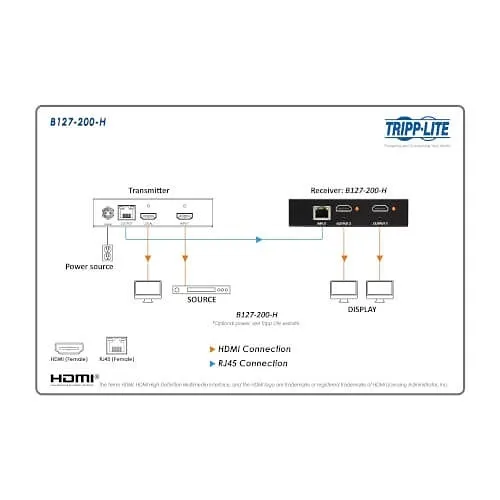

When displays sit far from your source, the Eaton Tripp Lite B127-200-H 2-port HDMI over Cat6 active remote receiver delivers reliable 4K video and multi-channel audio where you need it. This Eaton Tripp Lite video extender receiver extends Ultra HD 3840 x 2160 at 60 Hz with 4:4:4 color and HDCP 2.2 compliance to two HDMI displays using a single Cat6 run, supporting distances up to 125 ft for 4K@60 and longer for lower resolutions. Built-in PoC powers the receiver over the Ethernet cable so installers can avoid bulky power bricks and place units in racks, behind displays, or in ceiling boxes. The receiver’s onboard equalization and support for DTS-HD/Dolby TrueHD maintain image and audio integrity for digital signage, conference rooms, security monitoring and surveillance feeds. Compact, plug-and-play operation with included mounting hardware reduces deployment time and cost. If you need a professional HDMI extender that simplifies networking and improves AV reliability, add the B127-200-H to your next security, monitoring or presentation installation.

Features

  • Extend clean, low-latency 4K@60Hz video and 7.1 audio to two HDMI displays up to 125' over Cat6—ideal for digital signage and conference rooms
  • Built-in Power over Cable (PoC) removes the need for a local power brick, simplifying installs in tight or remote locations
  • Dual HDMI outputs let you mirror content to two screens for simultaneous presentations, retail displays, or monitoring stations
  • HDCP 2.2 and 4:4:4 color support ensure compatibility with streaming, PC graphics and high-fidelity video for security, surveillance and AV systems
  • Rack-, wall- or pole-mountable compact receiver for discreet deployment in corporate, education or house-of-worship environments
General Information
Brand Name Eaton Tripp Lite
Manufacturer Eaton
Product Name B127-200-H 2-Port HDMI over Cat6 Active Remote Receiver
Product Type Video Extender Receiver
Product Model B127-200-H
Manufacturer Part Number B127-200-H
Technical Information
Cable Type Category 6
Application/Usage Commercial, Residential
Media Type Supported Twisted Pair
Connectivity Technology Wired
Maximum Operating Distance 125'
Number of Output Devices Supported 2
Certifications
TAA Compliant Yes
Display & Graphics
Maximum Video Resolution 3840 x 2160
Interfaces/Ports
Network (RJ-45) Yes
Number of HDMI Outputs 2
Number of Network (RJ-45) Ports 1
Physical Characteristics
Color Green, Orange
Depth 2.46"
Width 4.53"
Height 1.06"
Video
Graphics Modes 4K
Warranty
Limited Warranty 1-Year
Miscellaneous
Country of Origin TW
