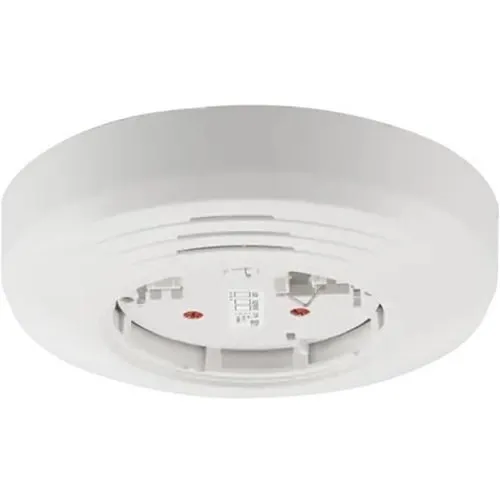

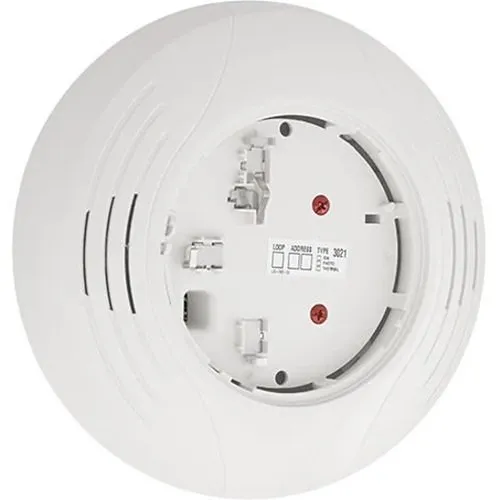

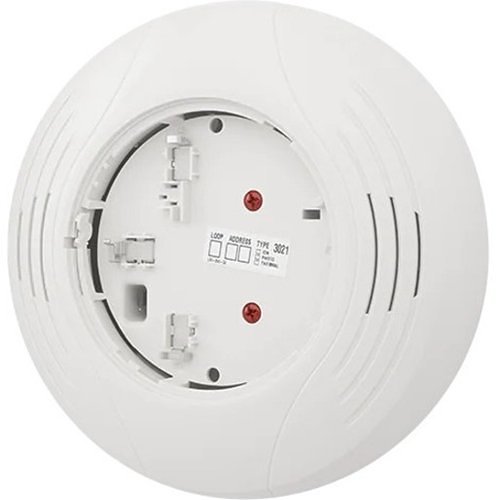

Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
Image of 4
Key Features
- Simplifies commissioning with a plug-in detector base and pre-wired mounting plate for faster installations and reduced labor costs
- Customizable audible notification: selectable 75 or 85 dBA and multiple tone patterns (ANSI Temporal 3/4, marching, continuous, custom) to meet site-specific evacuation strategies
- Addressable LiteSpeed protocol allows individual or grouped activation from the FACP for precise monitoring and event-driven alerts
- Compatible with System Sensor synchronization for coordinated, site-wide evacuation signals in integrated security systems
- Tamper-resistant mechanical lock and UL 268 / UL 464 compliance for reliable, code-approved protection in fire and security applications
- Flexible wiring support (12–24 AWG) and SEMS screws for secure, retrofit-friendly connections
Quick Specifications
- Product Model
- B200S-WH
- Brand Name
- Fire-Lite Alarms by Honeywell
- Product Name
- Intelligent Addressable Sounder Base
- Product Type
- Detector Base
Explore the details
Product information
B200S-WH
Overview
Ensure clear, code-compliant audible notification across commercial and industrial sites with the Fire-Lite Alarms Intelligent Addressable Sounder Base B200S-WH. This white detector base integrates sounder capability under an addressable detector to deliver targeted, site-specific alerts that improve occupant safety and streamline monitoring. Installers and system integrators benefit from fast, secure mounting using SEMS screws, a pre-wired plate, and 12–24 AWG support that reduce installation time and cost. The B200S-WH offers selectable 75 or 85 dBA output and multiple tone patterns (ANSI Temporal 3, ANSI Temporal 4, marching, continuous and custom), enabling flexible evacuation and notification plans. Using the LiteSpeed protocol and support for System Sensor synchronization, sounder bases can be addressed individually or in groups for coordinated notification across fire, security and surveillance systems. Mechanical locking prevents unauthorized removal of detector heads for tamper-resistant operation, while UL 268 and UL 464 compliance ensures code acceptance. Specify the Fire-Lite B200S-WH for your next fire alarm, monitoring, or integrated security project — order now to simplify installation and ensure dependable audible notification.
Features
- Simplifies commissioning with a plug-in detector base and pre-wired mounting plate for faster installations and reduced labor costs
- Customizable audible notification: selectable 75 or 85 dBA and multiple tone patterns (ANSI Temporal 3/4, marching, continuous, custom) to meet site-specific evacuation strategies
- Addressable LiteSpeed protocol allows individual or grouped activation from the FACP for precise monitoring and event-driven alerts
- Compatible with System Sensor synchronization for coordinated, site-wide evacuation signals in integrated security systems
- Tamper-resistant mechanical lock and UL 268 / UL 464 compliance for reliable, code-approved protection in fire and security applications
- Flexible wiring support (12–24 AWG) and SEMS screws for secure, retrofit-friendly connections
| General Information | |
|---|---|
| Brand Name | Fire-Lite Alarms by Honeywell |
| Manufacturer | Honeywell International, Inc |
| Product Name | Intelligent Addressable Sounder Base |
| Product Type | Detector Base |
| Product Model | B200S-WH |
| Product Series | B200 |
| Country of Origin | MX |
| Manufacturer Part Number | B200S-WH |
| Technical Information | |
| Device Supported | Detector, Module |
| Physical Characteristics | |
| Color | White |
| Height | 1.60" |
| Product Information | |
| Diameter | 6.90" |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | B200S |
| Miscellaneous | |
| Features | Addressable Loop, Compact, Easy Installation, Surface Mount |
| Compatibility | System Sensor Sync-Circuit Modules: MDL MDL3R MDLW MDL3W SYNC-1 |
