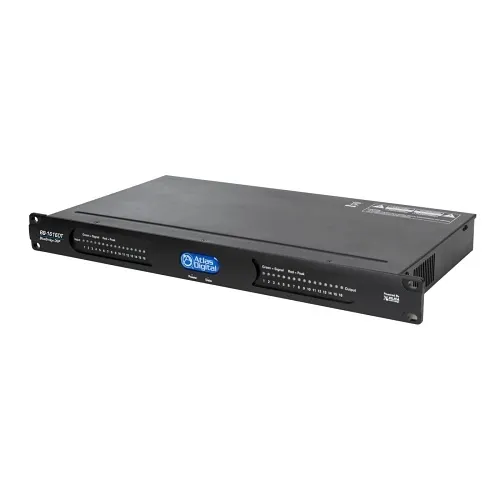

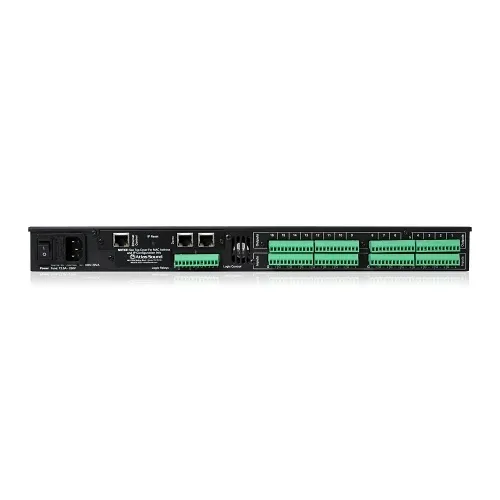

AtlasIED BB-1616DT BlueBridge 16x16 Networkable DSP Device with Dante
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Key Features
- Simplifies complex AV and security installs with 16x16 Dante audio over Ethernet, reducing cabling and rack space
- Delivers transparent, low-noise audio with 48kHz 40-bit floating DSP and THAT microphone preamps for intelligible paging and conferencing
- Flexible routing and open-architecture programmability for custom matrix mixing, auto-mixers, EQ, dynamics and anti-feedback control
- Integrates with building systems via four logic I/O and TCP/IP control for monitoring, paging and security applications
- Rack-ready, UL60065 safety listed design with a 3-year limited warranty for reliable, mission-critical deployments
Quick Specifications
- Product Model
- BB-1616DT
- Brand Name
- AtlasIED
- Manufacturer Part Number
- BB-1616DT
Explore the details
Product information
BB-1616DT
Overview
Deliver crystal-clear, networked audio for AV, paging and security monitoring with the AtlasIED BB-1616DT BlueBridge — a pro audio processor engineered for mission-critical installations. This 16x16 networkable DSP device with Dante consolidates microphone preamps, routing and advanced processing into a single 1U unit, providing 16 channels of digital audio over Ethernet and a 48kHz, 40-bit floating-point DSP engine for transparent processing and a full 20 Hz–20 kHz frequency response. Installers and integrators benefit from reduced cabling, simple TCP/IP control and true plug-and-play digital audio networking that scale across conferencing, house of worship, courtroom and surveillance environments. Premium THAT Corp mic preamps and an ultra-low noise floor ensure intelligible paging, broadcast-quality conferencing and accurate monitoring for security systems. Extensive EQ, crossover, dynamics and matrix tools, plus four logic inputs/outputs, enable tight integration with access control, monitoring and paging platforms. The BB-1616DT is safety listed to UL60065 and backed by a 3-year limited warranty—specify it to streamline deployments and improve audio clarity in your next AV, paging or security project. Contact us for configuration and integration support.
Features
- Simplifies complex AV and security installs with 16x16 Dante audio over Ethernet, reducing cabling and rack space
- Delivers transparent, low-noise audio with 48kHz 40-bit floating DSP and THAT microphone preamps for intelligible paging and conferencing
- Flexible routing and open-architecture programmability for custom matrix mixing, auto-mixers, EQ, dynamics and anti-feedback control
- Integrates with building systems via four logic I/O and TCP/IP control for monitoring, paging and security applications
- Rack-ready, UL60065 safety listed design with a 3-year limited warranty for reliable, mission-critical deployments
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer Part Number | BB-1616DT |
| Audio | |
| Maximum Frequency Response | 20.0kHz |
| Minimum Frequency Response | 20.0000Hz |
| Physical Characteristics | |
| Depth | 9.00" |
| Width | 19.00" |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 16 Channels of Digital Audio Over Ethernet (Dante), 16 Input / 16 Output Configuration with Dante, 48kHz, 40 Bit Floating DSP Engine, Crossover Modules- Butterworth, Linkwitz Riley, Bessel, Slopes- 6 to 48dB per Octave, Dynamics Modules- Compressor, Expander, Limiter, Ducker, EQ Modules- Parametric, Graphic, and Anti-Feedback, Filter Modules- High Shelf, Low Shelf, All Pass, Four Logic Inputs/Outputs, Generator Modules- Sine Tone, Sign Sweep, White, Pink, High Quality THAT Corp Microphone Preamps, Mixer Modules- Gain Sharing Auto-Mixer, Gating Auto-Mixer, Matrix Mixer, Standard Mixer, LR Mixer, LCR Mixer, Open Architecture Programmability, Safety Listed to UL60065, True Plug and Play Digital Audio Networking, Ultra Low Noise Floor |
