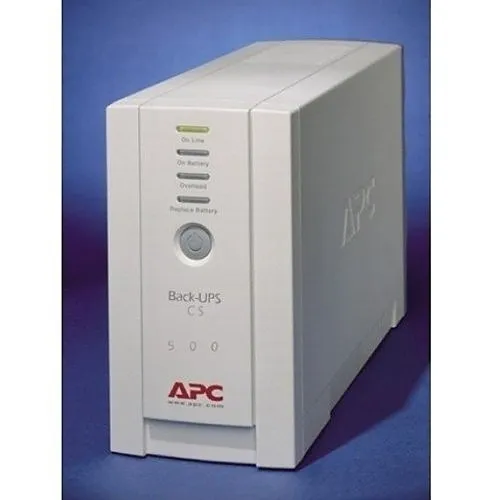

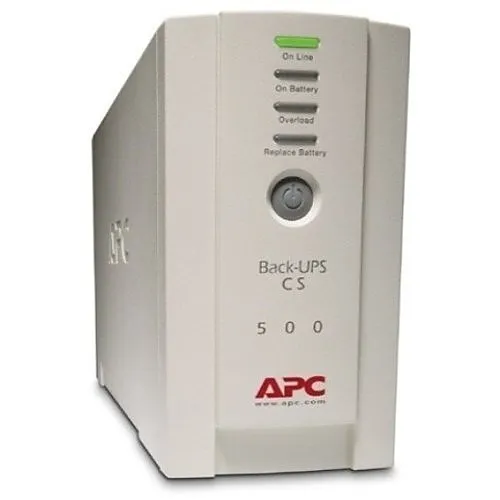

APC BK500 Back-UPS CS 500VA, 120V, NEMA Outlets, 3-Surge, Beige
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 6
Key Features
- Keeps critical equipment running during outages so security, surveillance and networking devices remain online and data stays protected
- 500VA/300W battery backup with up to 15 minutes at half load for graceful shutdowns and continued monitoring during short outages
- 480 joule surge protection shields sensitive electronics from spikes and line noise to reduce equipment failures
- Six NEMA outlets with transformer-spaced sockets let you connect bulky power adapters without blocking neighboring receptacles
- Integrated USB/serial management and audible alarms simplify monitoring, automated shutdowns and remote power management
Quick Specifications
- Product Model
- BK500
- Brand Name
- APC by Schneider Electric
- Product Line
- Back-UPS
- Product Name
- BK500 120V Backup System
Explore the details
Product information
BK500
Overview
Protect critical systems and maintain continuous monitoring with the APC by Schneider Electric BK500 Back-UPS UPS. Designed for small offices, security closets and surveillance stations, this reliable line-interactive UPS delivers 500VA (300W) of backup power and 480 joules of surge energy rating to keep cameras, NVRs, routers and workstations online during outages and spikes. Six NEMA outlets—three with battery backup and three surge-only—plus transformer-spaced receptacles make it easy to connect mixed equipment without losing access. Cold-start capability and hot-swappable battery support minimize downtime during service, while built-in USB/serial management and status alarms enable orderly shutdowns and remote monitoring for IT and security teams. The BK500 is ENERGY STAR certified for energy-efficient operation and offers a compact tower form factor that fits into tight wiring closets or equipment racks. Ideal for powering surveillance systems, access control, monitoring stations and networking gear, the BK500 provides peace of mind and business continuity. Add this APC Back-UPS to your security or IT deployment to reduce downtime and protect important data—order now for immediate protection.
Features
- Keeps critical equipment running during outages so security, surveillance and networking devices remain online and data stays protected
- 500VA/300W battery backup with up to 15 minutes at half load for graceful shutdowns and continued monitoring during short outages
- 480 joule surge protection shields sensitive electronics from spikes and line noise to reduce equipment failures

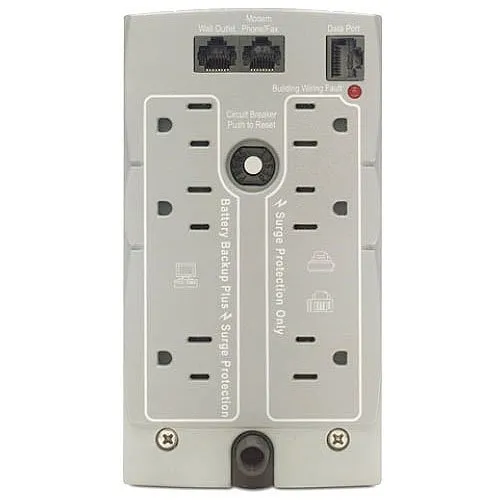

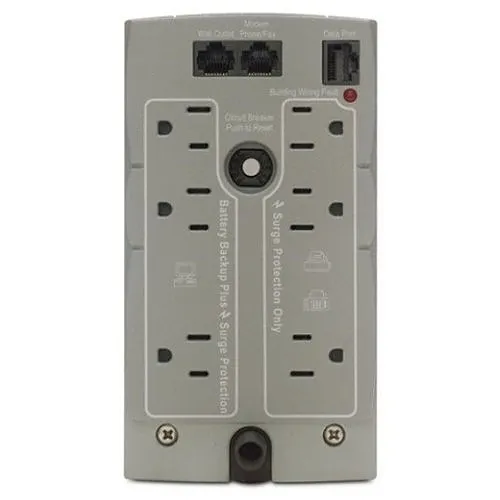

- Six NEMA outlets with transformer-spaced sockets let you connect bulky power adapters without blocking neighboring receptacles
- Integrated USB/serial management and audible alarms simplify monitoring, automated shutdowns and remote power management
| General Information | |
|---|---|
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | Back-UPS |
| Product Name | BK500 120V Backup System |
| Product Type | Line-interactive UPS |
| Product Series | CS |
| Packaged Quantity | 1 |
| Manufacturer Part Number | BK500 |
| Technical Information | |
| Energy Saving | Yes |
| Output Voltage | 120V |
| Receptacle Type | NEMA 5-15R |
| Power Consumption | 300W |
| Receptacle Detail | 3 x NEMA 5-15R |
| Dataline Protection | RJ-11 |
| Input Receptacle Type | NEMA 5-15P |
| Output Receptacle Type | 3 NEMA 5-15R, 3 NEMA 5-15R surge |
| Backup/Run Time (Full Load) | 3-Minute |
| Backup/Run Time (Half Load) | 15-Minute |
| Number of Battery & Surge Outlets | 6 |
| Battery Information | |
| Battery Chemistry | VRLA |
| Replaceable Battery | Yes |
| Battery Recharge Time | 8-Hour |
| Battery Characteristics | Maintenance-free, Spill-proof |
| Maximum Storage Relative Humidity | 0.95 |
| Certifications | |
| Energy Star | Yes |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Sound Emission | 45 dB |
| Thermal Dissipation | 7.03W |
| Maximum Operating Temperature | 113°F (45°C) |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Alarm | Low Battery, On Battery, Overload |
| Physical Characteristics | |
| Color | Beige |
| Depth | 11.18" |
| Width | 3.58" |
| Height | 6.50" |
| Weight | 13.80lb |
| Form Factor | Tower |
| Power Description | |
| Output Power | 500VA |
| Input Voltage | 120V |
| Waveform Type | Sine Wave |
| Plug/Connector Type | NEMA 5-15P |
| Surge Energy Rating | 480J |
| Warranty | |
| Limited Warranty | 3-Year |
| Additional Warranty Information | 3 years repair or replace |
| Miscellaneous | |
| Package Contents | CD with Software, Cord management straps, USB cable, User manual |
| Country of Origin | PH |
| Environmentally Friendly | Yes |
| Environmental Certification | California (CEC) Battery Charger, California Proposition 65, cUL Listed, ENERGY STAR V2.0 (USA), Industry Canada |
