APC BK500EI Back-UPS CS 500VA, 230V, IEC Outlets

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

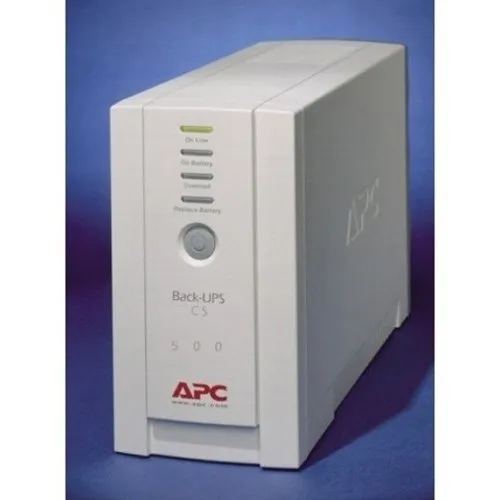

APC Back-UPS CS 500
Product images for APC BK500EI Back-UPS CS 500VA, 230V, IEC Outlets. 4 image(s) available. Click on image to view full size.

Key Features

  • Keeps critical security, surveillance and IT equipment online during outages with 500VA/230V battery backup
  • Protects devices from spikes and surges (300J) to prevent data loss and hardware damage
  • Six IEC C13 outlets to power cameras, NVRs, switches and routers for centralized protection
  • Hot-swappable, maintenance-free lead-acid battery for fast service without shutdowns
  • USB/serial connectivity and automatic shutdown software for orderly power management and monitoring

Quick Specifications

Product Model
BK500EI
Sector
Video Surveillance
Brand Name
APC by Schneider Electric
Product Line
Back-UPS
View Full Technical Specifications

Product Information Tabs

Overview

Protect your surveillance, security and IT systems from disruptive outages with the APC by Schneider Electric Back-UPS CS 500VA standby UPS. Designed for small offices, monitoring stations and compact surveillance installs, this UPS delivers reliable 230V battery backup and stepped sine wave output to keep cameras, NVRs, switches and network gear running through short blackouts. With 6 IEC C13 outlets and a 300J surge energy rating, it safeguards multiple devices from spikes and transient events while offering RJ-45 dataline protection for modem/DSL lines.

The BK500EI features hot-swappable, maintenance-free lead-acid batteries and USB/serial connectivity for seamless integration with power management software—enabling graceful shutdowns and automated alerts to protect data and preserve uptime. Typical runtime is approximately 13.9 minutes at half load and 2.4 minutes at full load, giving you time to save work or hand off critical surveillance streams to backup systems. Backed by APC’s proven reliability and a 2-year limited warranty, this Back-UPS CS is an efficient choice for security, monitoring and networking applications. Add resilience to your installation—deploy the BK500EI for dependable power protection today.

Features

  • Keeps critical security, surveillance and IT equipment online during outages with 500VA/230V battery backup
  • Protects devices from spikes and surges (300J) to prevent data loss and hardware damage
  • Six IEC C13 outlets to power cameras, NVRs, switches and routers for centralized protection
  • Hot-swappable, maintenance-free lead-acid battery for fast service without shutdowns
  • USB/serial connectivity and automatic shutdown software for orderly power management and monitoring
General Information
Sector Video Surveillance
Brand Name APC by Schneider Electric
Manufacturer Schneider Electric SA
Product Line Back-UPS
Product Name Back-UPS CS 500VA
Product Type Standby UPS
Product Model BK500EI
Product Series CS
Packaged Quantity 1
Manufacturer Part Number BK500EI
Technical Information
Hot Swappable Yes
Output Voltage 230V AC
Receptacle Type IEC 60320 C13
Receptacle Detail 1, 2 x IEC 60320 C13, 3 x IEC 60320 C13
Dataline Protection RJ-45
Backup/Run Time (Full Load) 2.4-Minute
Backup/Run Time (Half Load) 13.9-Minute
Number of Battery & Surge Outlets 6
Battery Information
Battery Chemistry Lead Acid
Battery Recharge Time 8-Hour
Battery Characteristics Maintenance-free, Spill-proof
Maximum Storage Relative Humidity 0.95
Controls/Indicators
Status Indicators Yes
Environmental Conditions
Thermal Dissipation 7.03W
Maximum Operating Temperature 113°F (45°C)
Management
Alarm Low Battery, On Battery, Overload
Physical Characteristics
Color Beige
Depth 11.2"
Width 3.6"
Height 6.5"
Weight 13.90lb
Power Description
Input Voltage 220V AC
Waveform Type Stepped Sine Wave
Plug/Connector Type IEC 320-C14
Surge Energy Rating 300 J
Warranty
Limited Warranty 2-Year
Miscellaneous
Environmentally Friendly Yes
