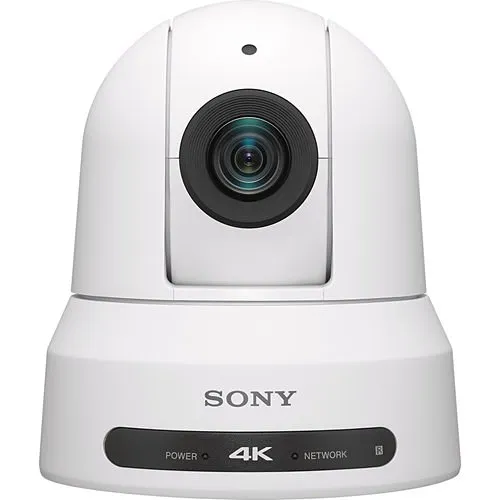

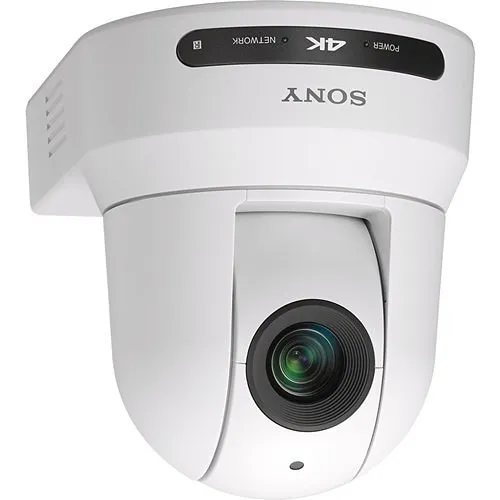

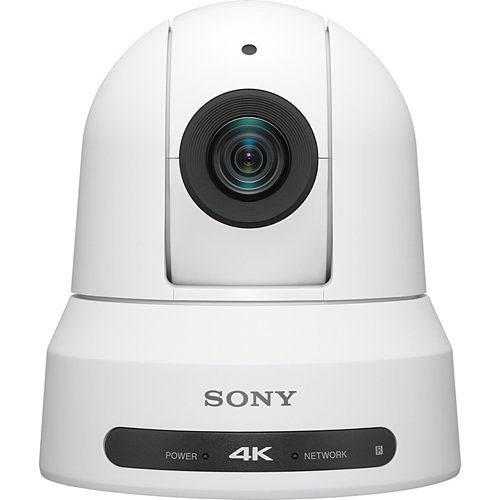

Sony Pro BRC-X400 Premium 4K30P IP PTZ Camera, NDI / HX Support, 30x Zoom, White
Key Features
- Capture broadcast-grade 4K video with the Sony Exmor R sensor for clear, low‑light performance across large venues
- Powerful 30x optical zoom in 4K (up to 80x in Full HD) plus a 70° wide angle to cover stages, aisles and spectator areas without repositioning
- Flexible IP production with NDI|HX support (optional license), RTSP streaming and web-based remote control for centralized monitoring and management
- Streamline multi-camera events: genlock support, built-in tally lamp and Picture Setting File make setup and synchronization fast and consistent
- Compact dome form and ceiling-mount capability simplify installation for houses of worship, lecture halls, stadiums and security surveillance applications
Quick Specifications
- Brand Name
- Sony Pro
- Manufacturer
- Sony Corporation
- Product Line
- Pro
- Product Name
- IP 4K Pan-Tilt-Zoom Camera with NDI | HX capability
Product Information Tabs
Overview
Deliver broadcast-grade 4K coverage and reliable remote monitoring with the Sony Pro BRC-X400 IP PTZ camera. This premium video conference and production camera combines a 1/2.5-type Exmor R CMOS sensor with 4K30P capture and a 30x optical zoom (up to 80x in Full HD) to provide crisp, low-noise images and wide coverage across auditoriums, arenas and security checkpoints. Integrated IP features — including optional NDI|HX, RTSP streaming, HDMI and web-based remote management — let you centralize control, reduce operator needs and integrate seamlessly into networked production or surveillance workflows. Installation is simplified by ceiling-mount design, Picture Setting File for rapid multi-camera configuration, genlock for frame-accurate synchronization and an on‑air tally lamp for live events. Ideal for broadcast, corporate AV, houses of worship, lecture capture, and mission-critical security or monitoring deployments. Upgrade your live production and surveillance setup with the Sony Pro BRC-X400—contact us to configure this PTZ camera for your installation or add it to your cart.
Features
- Capture broadcast-grade 4K video with the Sony Exmor R sensor for clear, low‑light performance across large venues
- Powerful 30x optical zoom in 4K (up to 80x in Full HD) plus a 70° wide angle to cover stages, aisles and spectator areas without repositioning
- Flexible IP production with NDI|HX support (optional license), RTSP streaming and web-based remote control for centralized monitoring and management
- Streamline multi-camera events: genlock support, built-in tally lamp and Picture Setting File make setup and synchronization fast and consistent
- Compact dome form and ceiling-mount capability simplify installation for houses of worship, lecture halls, stadiums and security surveillance applications
| General Information | |
|---|---|
| Brand Name | Sony Pro |
| Manufacturer | Sony Corporation |
| Product Line | Pro |
| Product Name | IP 4K Pan-Tilt-Zoom Camera with NDI | HX capability |
| Product Type | Remote Cameras |
| Product Model | BRC-X400 |
| Product Series | BRC |
| Manufacturer Part Number | BRCX400/W |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 20x |
| Minimum Focal Length | 4.4mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Certifications | |
| TAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |

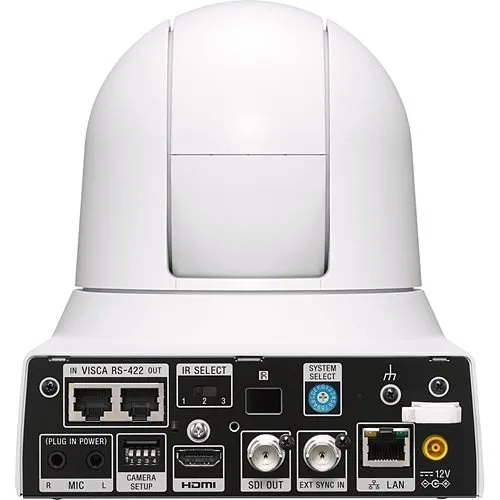

| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Lens | |
| Maximum Focal Length | 88mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 7.9" |
| Width | 6.2" |
| Height | 7" |
| Weight | 3.97 lb |
| Form Factor | Dome |
| Product Information | |
| Mount Type | Ceiling Mount |
| Storage | |
| Recording Formats | HD |
| Miscellaneous | |
| Features | Auto Flip, Auto Image Stabilizer, Built-in Tally Light, Day/Night, Gain Control |
