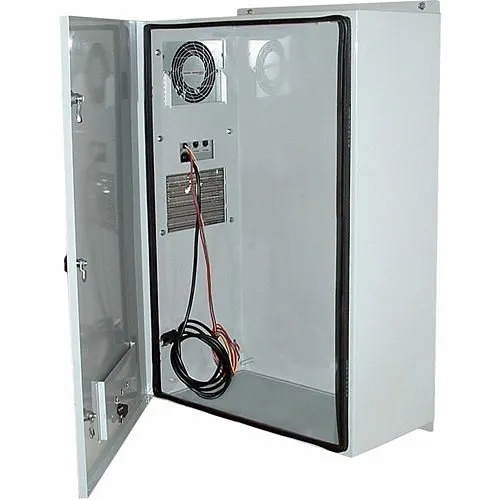

Mier BW-136ACE Outdoor Temperature-Controlled Enclosure with 2000 BTU AC Unit, 24"x 36" 12", Gray

SKU: BW-136ACE Mier Products
Mier BW-136ACE NEMA Enclosure
Product images for Mier BW-136ACE Outdoor Temperature-Controlled Enclosure with 2000 BTU AC Unit, 24"x 36" 12", Gray. 2 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Keeps sensitive equipment operational in harsh outdoor environments with a NEMA 4, weather-resistant design and interior water channel for added protection
  • Maintains stable internal temperatures using a built-in 2000 BTU AC unit and variable control thermostat to protect electronics and DVRs from heat-related failures
  • Reduces corrosion risk with E-Coat under a durable gray powder coat—ideal for coastal and industrial installations
  • Enhances security and tamper detection with a tubular-key lock, tamper switch, and gasketed door for reliable protection of surveillance and monitoring gear
  • Simplifies installation and service with a removable 22" x 34" panel, removable door, and pre-punched provisions for AC/fan units

Quick Specifications

Product Model
BW-136ACE
Brand Name
Mier Products
Product Line
Electrical Enclosures
Product Name
BW-136ACE NEMA Enclosure
View Full Technical Specifications

Product Information Tabs

Overview

Deliver reliable, climate-controlled protection for outdoor security and networking equipment with the Mier Products BW-136ACE temperature-controlled enclosure. This NEMA 4 air-conditioned enclosure is engineered to safeguard DVRs, fire panels, monitoring hardware and other sensitive electronics where ambient temperatures and weather can threaten uptime. The integrated 2000 BTU AC unit and variable thermostat maintain stable internal conditions inside the 24" x 36" x 12" cabinet, reducing thermal stress and extending component life. Built with corrosion-resistant E-Coat under a gray powder coat, the BW-136ACE is suited for coastal or industrial sites. Security-conscious installations benefit from a tubular-key lock, tamper switch and gasketed door plus an interior water channel that helps protect internal devices. Service and deployment are faster thanks to a removable 22" x 34" equipment panel and accessible mounting design. Choose the BW-136ACE when you need rugged, UL-listed temperature control for outdoor surveillance, security, or monitoring applications—contact sales or order now to protect your critical equipment.

Features

  • Keeps sensitive equipment operational in harsh outdoor environments with a NEMA 4, weather-resistant design and interior water channel for added protection
  • Maintains stable internal temperatures using a built-in 2000 BTU AC unit and variable control thermostat to protect electronics and DVRs from heat-related failures
  • Reduces corrosion risk with E-Coat under a durable gray powder coat—ideal for coastal and industrial installations
  • Enhances security and tamper detection with a tubular-key lock, tamper switch, and gasketed door for reliable protection of surveillance and monitoring gear
  • Simplifies installation and service with a removable 22" x 34" panel, removable door, and pre-punched provisions for AC/fan units
General Information
Brand Name Mier Products
Manufacturer Mier Products, Inc
Product Line Electrical Enclosures
Product Name BW-136ACE NEMA Enclosure
Product Type Cabinet/Enclosure
Product Model BW-136ACE
Product Series BW-136
Packaged Quantity 1
Manufacturer Part Number BW136ACE
Technical Information
Material Metal
Application/Usage Outdoor
Certifications
TAA Compliant Yes
Physical Characteristics
Color Gray
Depth 12"
Width 24"
Height 36"
Form Factor Enclosure
Product Information
Length 36"
Installation Type Hybrid
Warranty
Limited Warranty 1-Year
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
Country of Origin US
