APC BX1500M Back-UPS Pro, Compact Tower, 1500VA, AVR, LCD, 120V

APC BX1500M Back UPS Pro Bx1500m, Compact Tower, 1500va, AVR, LCD, 120v

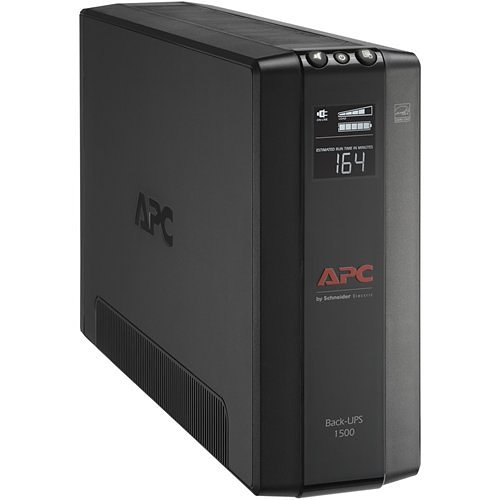

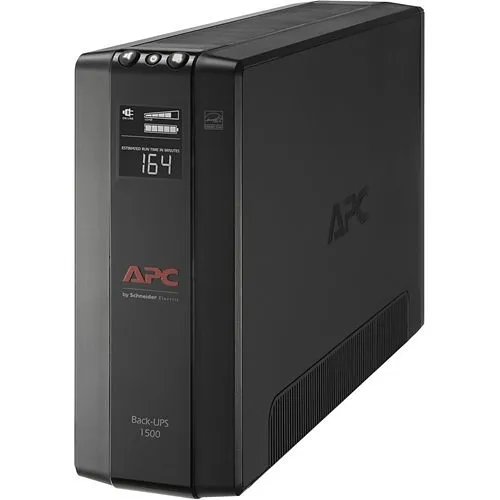

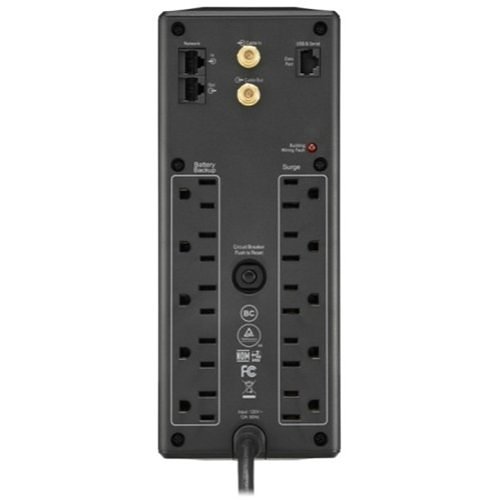

Product images for APC BX1500M Back-UPS Pro, Compact Tower, 1500VA, AVR, LCD, 120V. 4 image(s) available. Click on image to view full size.

Key Features

  • Continuous, AVR-stabilized backup keeps critical systems online during outages and brownouts, protecting data and uptime for servers, networking gear and surveillance systems
  • Clear LCD status and audible alerts provide instant visibility into power, load and battery health for fast troubleshooting and monitoring
  • Ten strategically spaced outlets (5 battery-backed, 5 surge-only) let you prioritize essential equipment while protecting peripherals and transformers
  • Tool-free battery replacement and a 3-year repair/replace warranty minimize downtime and lower total cost of ownership for IT and security deployments
  • Energy-saving design with ENERGY STAR certification reduces operating costs for always-on infrastructure like security cameras, NVRs and network switches

Quick Specifications

Product Model
BX1500M
Sector
Data Comm & Networking
Brand Name
APC by Schneider Electric
Product Line
Back-UPS Pro
View Full Technical Specifications

Explore the details

Product information

BX1500M

Overview

Keep critical IT, security and surveillance systems running when utility power falters. The APC by Schneider Electric BX1500M Back-UPS Pro UPS delivers reliable, line-interactive protection—1500VA of capacity with Automatic Voltage Regulation (AVR) to correct brownouts without draining the battery. An easy-to-read LCD shows runtime, load and diagnostics while audible alerts and automatic self-tests ensure early detection of issues. With ten NEMA 5-15R outlets (five battery-backed and five surge-only), the compact tower supports a mix of servers, network switches, NVRs and monitoring workstations without blocking large transformer plugs. Tool-free battery replacement and a 3-year repair/replace warranty simplify maintenance for IT and security teams. Designed for 120V environments, the BX1500M provides surge energy protection and a sine-wave output to safeguard sensitive electronics and prevent data loss. Ideal for small server rooms, surveillance hubs, and network closets that require dependable backup and clean power. Protect your security, networking and monitoring investments—deploy the Back-UPS Pro BX1500M to maintain uptime and reduce risk.

Features

  • Continuous, AVR-stabilized backup keeps critical systems online during outages and brownouts, protecting data and uptime for servers, networking gear and surveillance systems
  • Clear LCD status and audible alerts provide instant visibility into power, load and battery health for fast troubleshooting and monitoring
  • Ten strategically spaced outlets (5 battery-backed, 5 surge-only) let you prioritize essential equipment while protecting peripherals and transformers
  • Tool-free battery replacement and a 3-year repair/replace warranty minimize downtime and lower total cost of ownership for IT and security deployments
  • Energy-saving design with ENERGY STAR certification reduces operating costs for always-on infrastructure like security cameras, NVRs and network switches
34 of 34 specifications
Technical specifications for APC BX1500M Back-UPS Pro, Compact Tower, 1500VA, AVR, LCD, 120V
General Information
Sector Data Comm & Networking
Brand Name APC by Schneider Electric
Manufacturer Schneider Electric SA
Product Line Back-UPS Pro
Product Name Back UPS Pro BX1500M, Compact Tower, 1500VA, AVR, LCD, 120V
Product Type Line-interactive UPS
Country of Origin PH
Manufacturer Part Number BX1500M
Technical Information
Energy Saving Yes
Transfer Time 10.00ms
Output Voltage 120V
Receptacle Type NEMA 5-15R
Receptacle Detail 10 x NEMA 5-15R
Input Receptacle Type NEMA 5-15P
Backup/Run Time (Full Load) 3.0min
Number of Battery & Surge Outlets 10
Battery Information
Battery Chemistry Sealed Lead Acid (VRLA)
Replaceable Battery Yes
Battery Recharge Time 16.00hr
Maximum Storage Relative Humidity 0.95
Certifications
Energy Star Yes
Physical Characteristics
Color Black
Depth 15.04"
Width 3.94"
Height 9.84"
Weight 24.25lb
Form Factor Tower
Power Description
Input Voltage 120V
Waveform Type Pure Sine Wave
Plug/Connector Type NEMA 5-15P
Warranty
Limited Warranty 3-Year
Additional Warranty Information 3 years repair or replace
Miscellaneous
Environmentally Friendly Yes
Environmental Certification California (CEC) Battery Charger, California Proposition 65, ENERGY STAR V2.0 (USA), TUV C-US certified
