C2G C2G30016 HDMI HDBaseT RS232 and IR over Cat Extender Box Scaling Receiver, 4K 60Hz, Black
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Extend 4K video reliably to distant displays, simplifying AV and security deployments with HDBaseT over a single Cat cable
- Built-in scaler and 4K60 support ensure consistent image quality and resolution matching for conference rooms, classrooms, and monitoring stations
- Bi-directional PoC lets one power adapter run both units, reducing power points and installation time in ceilings or racks
- RS232 and IR pass-through provide remote device control for integrated control systems and surveillance equipment
- Audio de-embed (S/PDIF and analog) and HDCP 2.2 compliance enable flexible audio routing and secure content delivery for pro AV and security applications
Quick Specifications
- Product Model
- C2G30016
- Brand Name
- C2G by Legrand
- Product Name
- HDMI HDBaseT + RS232 + IR over Cat Extender Box Scaling Receiver
- Product Type
- IR Receiver
Explore the details
Product information
C2G30016
Overview

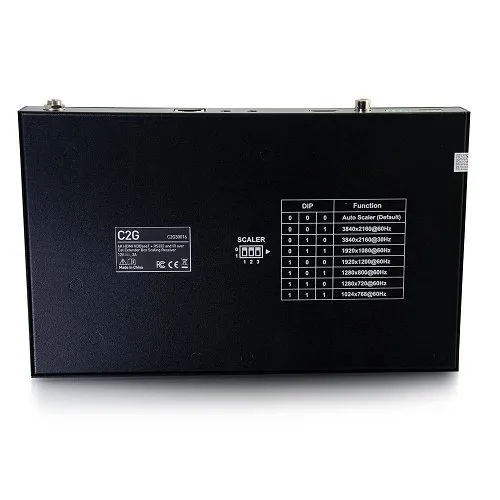

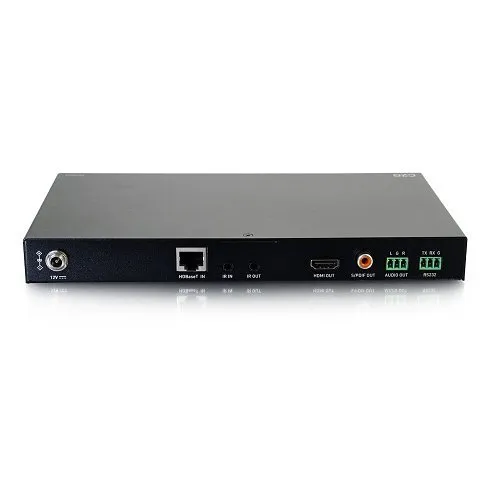

When you need to deliver high-quality 4K video and centralized control across long cable runs, the C2G by Legrand HDMI HDBaseT scaling receiver provides a flexible, install-friendly solution. This HDBaseT extender receiver supports 4K60 (4:2:0) sources and, depending on cable grade, extends 4K reliably up to ~115 ft over Cat5e/6 and farther over Cat6a while maintaining HDCP 2.2 security. The integrated scaler and firmware-updateable micro-USB let integrators match display resolutions without additional equipment. Bi-directional PoC minimizes power requirements on-site by allowing one adapter to power both transmitter and receiver, and RS232/IR passthrough enables centralized control of displays, matrix switchers, and surveillance hardware. Audio de-embedding (S/PDIF and analog stereo) simplifies integrating audio into AV or monitoring systems. NDAA-compliant and designed for professional installs, this C2G HDBaseT receiver is ideal for boardrooms, lecture halls, retail video walls, and security/surveillance monitoring rooms. Streamline your long-run HDMI deployments — specify the C2G30016 for reliable 4K distribution and control.
Features
- Extend 4K video reliably to distant displays, simplifying AV and security deployments with HDBaseT over a single Cat cable
- Built-in scaler and 4K60 support ensure consistent image quality and resolution matching for conference rooms, classrooms, and monitoring stations

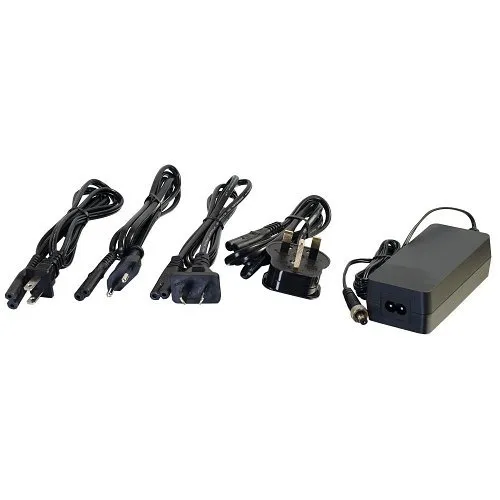

- Bi-directional PoC lets one power adapter run both units, reducing power points and installation time in ceilings or racks
- RS232 and IR pass-through provide remote device control for integrated control systems and surveillance equipment
- Audio de-embed (S/PDIF and analog) and HDCP 2.2 compliance enable flexible audio routing and secure content delivery for pro AV and security applications
| General Information | |
|---|---|
| Brand Name | C2G by Legrand |
| Manufacturer | Legrand Group |
| Product Name | HDMI HDBaseT + RS232 + IR over Cat Extender Box Scaling Receiver |
| Product Type | IR Receiver |
| Manufacturer Part Number | C2G30016 |
| Technical Information | |
| Cable Type | Category 7 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Connector on Second End | HDMI |
| Maximum Operating Distance | 328' |
| Number of Output Devices Supported | 1 |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Color | Black |
| Depth | 5.64" |
| Width | 9.21" |
| Height | 0.98" |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | NDAA 889, Prop 65, REACH, RoHS, TSCA |
| Country of Origin | CN |
| Environmental Certification | REACH, ROHS, Prop 65, TSCA, NDAA 889 |
