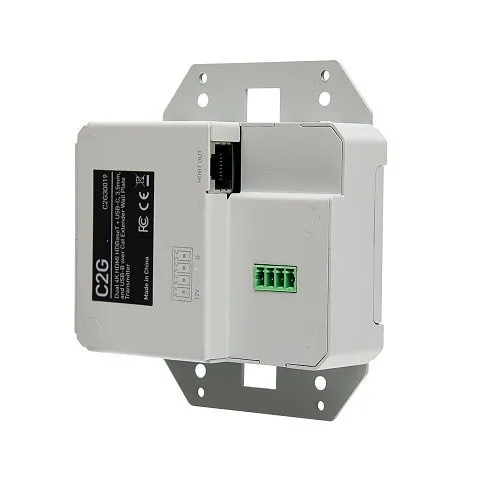

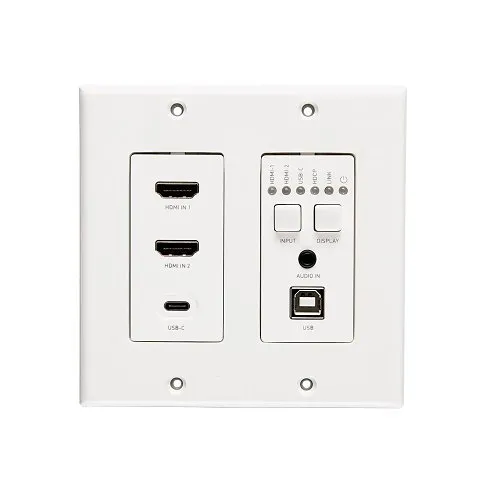

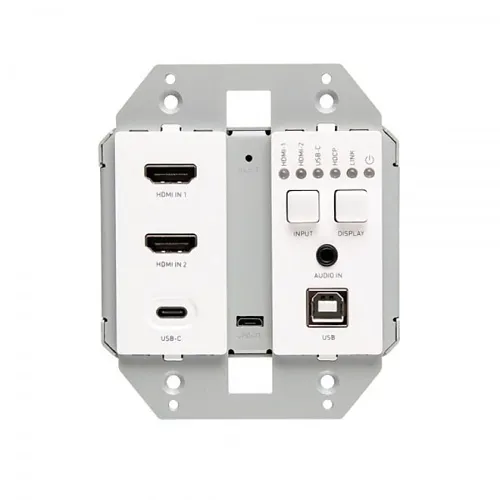

C2G C2G30019 Dual 4K HDMI HDBaseT USB-C, 3.5mm and USB-B over Cat Extender Dual Gang Wall Plate Transmitter, 4K 60Hz, White
Image of 4
Key Features
- Extend two 4K@60Hz HDMI or USB-C video sources over a single Cat6a cable to 130ft, simplifying long-run AV and digital signage installations
- USB-C (video) plus high-speed USB 2.0 pass-through for cameras, touch displays, keyboards and mice—enables interactive whiteboards and KVM control
- PoH support powers the wall-plate transmitter from the receiver to eliminate a local power supply and reduce rack clutter
- HDCP 2.2 compliance and automatic source switching for secure, seamless playback in conference rooms, classrooms and monitoring setups
- Built-in 3.5mm analog audio pass-through and dual HDMI inputs give flexible AV routing for presentations, surveillance audio or paging
- Integrator-friendly control and updates via Micro USB (API/firmware) and RS232 support on the receiver for advanced system management
Quick Specifications
- Product Model
- C2G30019
- Brand Name
- C2G by Legrand
- Product Name
- Video Extender Transmitter
- Product Type
- Video Extender Transmitter
Explore the details
Product information
C2G30019
Overview
Deliver reliable, long-distance AV and peripheral connectivity without extra bulky cables. The C2G by Legrand Dual 4K HDMI HDBaseT Wall Plate Transmitter (Pro Wall Plates / Video Extender Transmitter) extends dual 4K@60Hz HDMI or USB-C video plus USB 2.0 and analog audio over a single Cat5e/6/6a cable, reaching up to 130ft on Cat6a and up to 230ft for 1080p or USB data. Designed for installers and AV managers, it supports HDCP 2.2 for secure content delivery, PoH to remove the need for local power, and automatic switching to prioritize the active source. The integrated USB passthrough lets you connect cameras, touch displays and input devices for collaboration, KVM control, and surveillance monitoring, while the 3.5mm audio output simplifies audio distribution. With Micro USB API access and firmware upgrade capability, this transmitter fits professional deployments in conference rooms, classrooms, digital signage, security and monitoring systems. Choose this C2G Pro Wall Plate transmitter to streamline installations and maintain secure, long-reach video and device connectivity—ideal for AV integrators and security professionals planning next-level installations.
Features
- Extend two 4K@60Hz HDMI or USB-C video sources over a single Cat6a cable to 130ft, simplifying long-run AV and digital signage installations
- USB-C (video) plus high-speed USB 2.0 pass-through for cameras, touch displays, keyboards and mice—enables interactive whiteboards and KVM control
- PoH support powers the wall-plate transmitter from the receiver to eliminate a local power supply and reduce rack clutter
- HDCP 2.2 compliance and automatic source switching for secure, seamless playback in conference rooms, classrooms and monitoring setups
- Built-in 3.5mm analog audio pass-through and dual HDMI inputs give flexible AV routing for presentations, surveillance audio or paging
- Integrator-friendly control and updates via Micro USB (API/firmware) and RS232 support on the receiver for advanced system management
| General Information | |
|---|---|
| Brand Name | C2G by Legrand |
| Manufacturer | Legrand Group |
| Product Name | Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Manufacturer Part Number | C2G30019 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230' |
| Number of Input Devices Supported | 2 |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of USB Ports | 3 |
| Number of HDMI Inputs | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Color | White |
| Depth | 4.16" |
| Width | 3.5" |
| Height | 1.51" |
| Form Factor | Wall Plate |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | NDAA 889, Prop 65, REACH, RoHS, TSCA |
| Country of Origin | CN |
| Environmental Certification | REACH, ROHS, Prop 65, TSCA, NDAA 889 |
