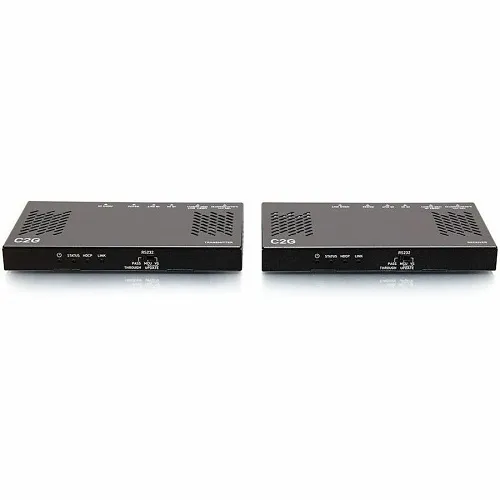

C2G C2G30026 HDMI HDBaseT RS232 and IR over Cat Extender Box Transmitter to Box Receiver, 18Gbps, 4K 60Hz, Commercial
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Extend pristine 4K60 AV up to 328' over a single Cat6a cable to simplify long-run installations in conference rooms, classrooms and control rooms
- Bi-directional Power over Cable (PoC) eliminates a second power supply for cleaner, more flexible deployments
- RS232 and IR pass-through enables centralized device control and easy integration with automation, AV control systems and security consoles
- Visual Lossless Compression (VLC) and HDCP 2.2 support preserve image quality and secure content for professional presentations and surveillance monitoring
- Supports full multi-channel audio and CEC pass-through so conferencing, signage and monitoring systems retain audio formats and centralized control
Quick Specifications
- Product Model
- C2G30026
- Brand Name
- C2G by Legrand
- Product Name
- HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz
- Product Type
- Video Extender Transmitter/Receiver
Frequently Bought Together
C2G C2G30026 HDMI HDBaseT RS232 and IR over Cat Extender Box Transmitter to Box Receiver, 18Gbps, 4K 60Hz, Commercial
$108.13
2 items selected
Total: $133.08
Explore the details
Product information
C2G30026
Overview
Deliver reliable, professional AV extension for commercial, security and monitoring environments with the C2G by Legrand HDMI HDBaseT extender pair. This HDMI extender solution moves 4K60 (18Gbps) HDMI signals up to 328' over a single Cat6a cable, removing distance limits for conference rooms, digital signage, surveillance control centers and remote monitoring stations. Installers benefit from bi-directional Power over Cable (PoC) that lets one adapter power both units, while RS232 and IR pass-through provide robust two-way control for integrated automation and security systems. Visual Lossless Compression (VLC) ensures compressed video appears indistinguishable from the source, and HDCP 2.2 compatibility protects protected content. With support for multi-channel audio, CEC pass-through and flexible cabling options (Cat5e/6 for shorter runs), this HDMI extender pair streamlines deployments where reliability and signal integrity matter. Ideal for AV integrators, IT managers and security professionals—specify the C2G HDMI HDBaseT extender to simplify long-distance HDMI, secure content distribution and centralized control. Contact sales or add to cart to upgrade your AV or surveillance installation.
Features
- Extend pristine 4K60 AV up to 328' over a single Cat6a cable to simplify long-run installations in conference rooms, classrooms and control rooms

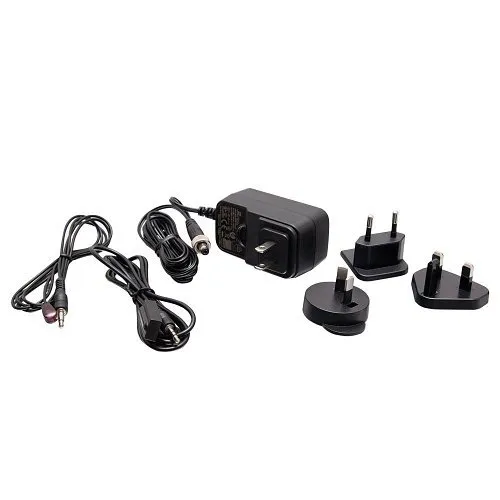

- Bi-directional Power over Cable (PoC) eliminates a second power supply for cleaner, more flexible deployments
- RS232 and IR pass-through enables centralized device control and easy integration with automation, AV control systems and security consoles
- Visual Lossless Compression (VLC) and HDCP 2.2 support preserve image quality and secure content for professional presentations and surveillance monitoring
- Supports full multi-channel audio and CEC pass-through so conferencing, signage and monitoring systems retain audio formats and centralized control
| General Information | |
|---|---|
| Brand Name | C2G by Legrand |
| Manufacturer | Legrand Group |
| Product Name | HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz |
| Product Type | Video Extender Transmitter/Receiver |
| Application/Usage | Commercial |
| Country of Origin | CN |
| Manufacturer Part Number | C2G30026 |
| Technical Information | |
| Cable Type | Category 7 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Connector on Second End | DC Power Plug, HDMI, RJ-45 |
| Maximum Operating Distance | 328.00' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Certifications | |
| TAA Compliant | No |
| Certifications | NDAA 889, Prop 65, REACH, RoHS, TSCA |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Color | Black |
| Depth | 2.92" |
| Height | 0.60" |
| Video | |
| Graphics Mode | 4K UHD |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH, ROHS, Prop 65, TSCA, NDAA 889 |
