C2G C2G30030 4K HDMI HDBaseT USB and RS232 Wall Plate Transmitter to Receiver
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 7
Key Features
- Simplify AV installs: extend 4K60 HDMI (3840×2160) and control signals up to 230' over a single Cat6a/Cat7 cable for clean, long‑reach deployments
- Maintain secure, compliant systems with HDCP 2.2 support and CEC pass‑through for centralized display control
- Support interactive and KVM use cases with USB 2.0 pass‑through plus RS232 for legacy control and automation integration
- PoE powered wall‑plate transmitter reduces wiring and power points, speeding installation in conference rooms, classrooms, and digital signage setups
- Wall‑plate form factor with upgrade mode simplifies field updates and professional installations for security, surveillance, and monitoring environments
Quick Specifications
- Product Model
- C2G30030
- Brand Name
- C2G by Legrand
- Product Name
- HDMI HDBaseT Wall Plate Transmitter to Box Receiver Extender - 4K 60Hz
- Product Type
- Video Extender Transmitter/Receiver
Frequently Bought Together
C2G C2G30030 4K HDMI HDBaseT USB and RS232 Wall Plate Transmitter to Receiver
$420.23
2 items selected
Total: $445.18
Explore the details
Product information
C2G30030
Overview

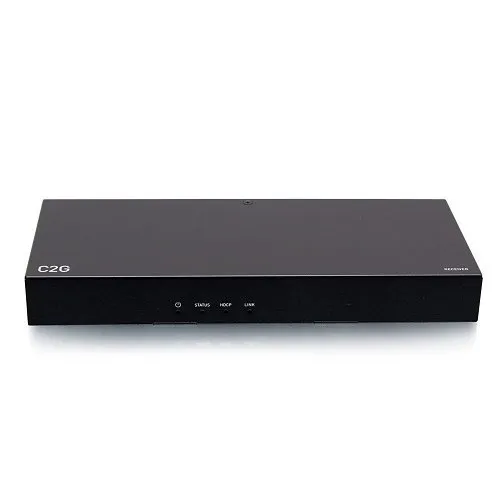

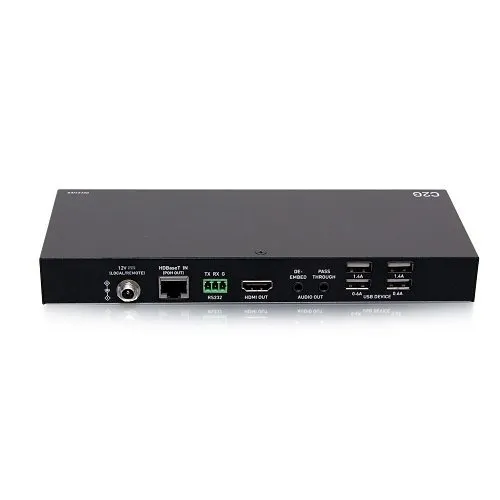

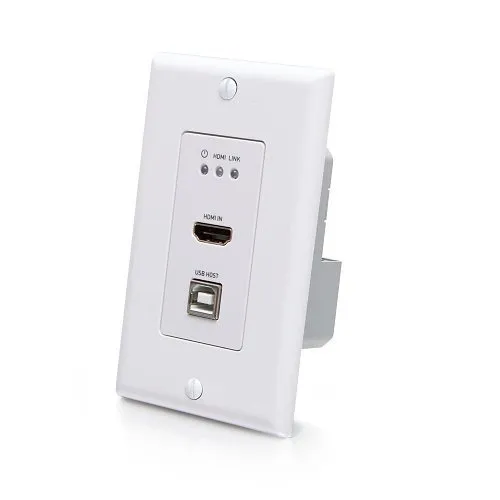

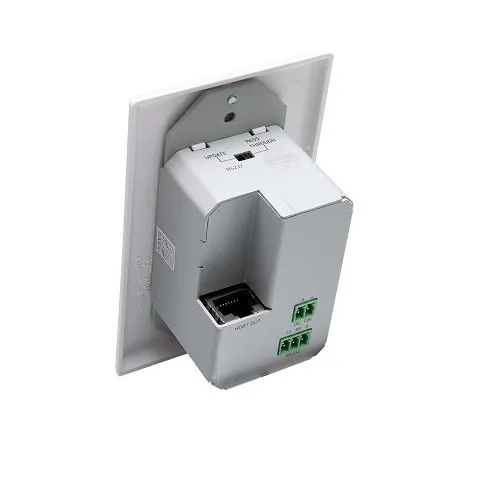

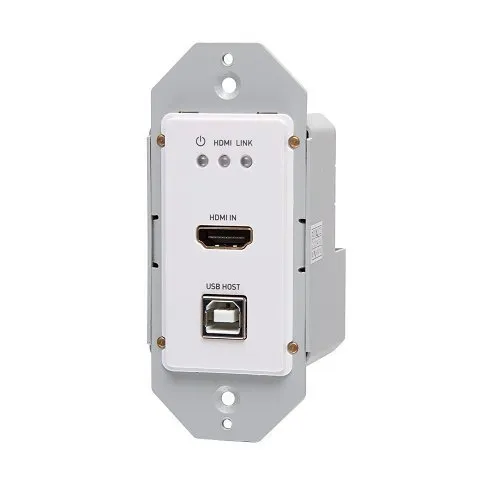

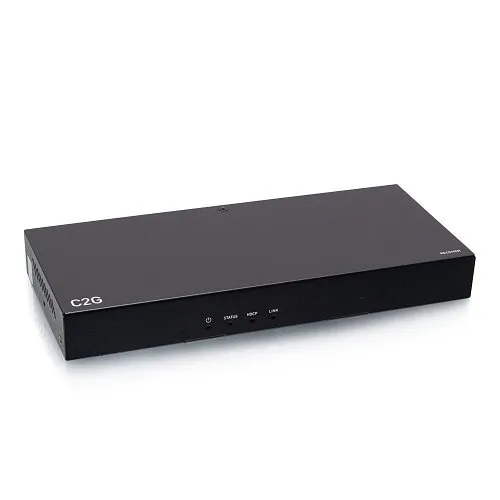

Deliver reliable 4K AV and device control across rooms without complex cabling. The C2G by Legrand C2G30030 4K HDMI HDBaseT USB and RS232 Wall Plate Transmitter to Receiver is designed for integrators who need professional, tamper‑resistant AV distribution for conference rooms, classrooms, digital signage, and security or surveillance monitoring stations. It extends pristine 4K60 (3840×2160) HDMI over a single Cat6a/Cat7 cable up to 230', while passing USB 2.0 and RS232 for touch panels, KVM, and control systems. Built‑in PoE reduces power requirements at the wall plate and HDCP 2.2 compliance ensures secure content delivery; CEC pass‑through enables centralized control of HDMI devices. The low‑profile wall plate transmitter and compact receiver make for a discreet, professional installation and the upgrade mode lets you update firmware in the field. Choose the C2G30030 to simplify deployments, maintain compliance, and support integrated AV and monitoring workflows — contact sales to spec it into your next project or request a quote.
Features
- Simplify AV installs: extend 4K60 HDMI (3840×2160) and control signals up to 230' over a single Cat6a/Cat7 cable for clean, long‑reach deployments
- Maintain secure, compliant systems with HDCP 2.2 support and CEC pass‑through for centralized display control
- Support interactive and KVM use cases with USB 2.0 pass‑through plus RS232 for legacy control and automation integration
- PoE powered wall‑plate transmitter reduces wiring and power points, speeding installation in conference rooms, classrooms, and digital signage setups
- Wall‑plate form factor with upgrade mode simplifies field updates and professional installations for security, surveillance, and monitoring environments
| General Information | |
|---|---|
| Brand Name | C2G by Legrand |
| Manufacturer | Legrand Group |
| Product Name | HDMI HDBaseT Wall Plate Transmitter to Box Receiver Extender - 4K 60Hz |
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | C2G30030 |
| Technical Information | |
| Cable Type | Category 7 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of USB Ports | 5 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Depth | 3.55" |
| Width | 9.06" |
| Height | 0.98" |
| Form Factor | Wall Plate |
| Power Description | |
| Power over Ethernet (PoE) | Yes |
| Video | |
| Graphics Modes | 4K |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmental Certification | REACH, ROHS, Prop 65, TSCA, NDAA 889 |
