C2G C2G31030 HDMI HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver, 4K 60Hz
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Extends 4K@60Hz HDMI up to 130 ft over a single Cat6a cable for long‑reach displays and cleaner installations
- USB 2.0 pass‑through up to 230 ft to support KVM, cameras, touch panels and interactive whiteboards
- RS232 control and bi-directional audio support for centralized AV, security and surveillance system management
- One-way Power over HDBaseT (PoH) eliminates the need for a wall-plate power adapter and simplifies installs
- HDCP 2.2 compliance and multi-channel audio support ensure secure, high-quality playback for commercial deployments

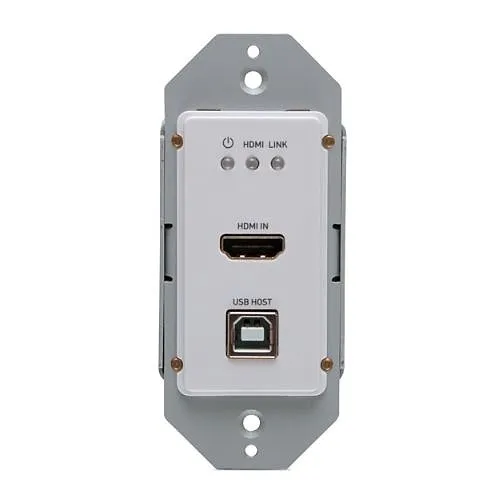

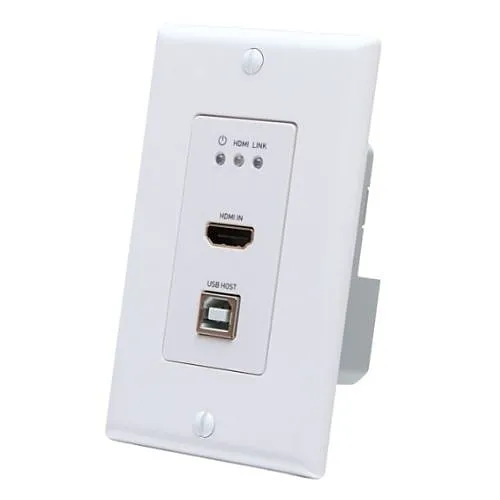

- Slim single‑gang wall-plate transmitter provides a professional, low-profile finish for conference rooms, classrooms and control rooms
Quick Specifications
- Product Model
- C2G31030
- Brand Name
- C2G by Legrand
- Manufacturer Part Number
- C2G31030
Frequently Bought Together
C2G C2G31030 HDMI HDBaseT + USB-B to A and RS232 Over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver, 4K 60Hz
$644.64
2 items selected
Total: $669.59
Explore the details
Product information
C2G31030
Overview
Extend high-resolution HDMI, USB and RS232 control to remote displays and interactive systems with the C2G by Legrand HDMI Extenders kit. This HDBaseT transmitter-to-receiver solution delivers 4K@60Hz video up to 130 ft over a single Cat6a cable and supports USB 2.0 pass-through up to 230 ft, making it ideal for conference rooms, lecture halls, digital signage and security/monitoring deployments. Built-in RS232 passthrough and CEC support enable centralized device control and integration with AV control systems often used in security and surveillance setups.
One-way Power over HDBaseT (PoH) powers the single-gang wall plate from the receiver to reduce power outlets and simplify field wiring. The system is HDCP 2.2 compliant and supports multi-channel audio formats, ensuring secure, high-quality playback for protected content. With firmware upgrade options and a compact wall-plate transmitter, installers gain flexibility and future-proofing for classroom, corporate or control-room projects. Backed by a 5-year limited warranty, this C2G by Legrand HDMI Extenders kit streamlines long‑reach AV and monitoring installations—specify it for your next AV, digital signage or security project.
Features
- Extends 4K@60Hz HDMI up to 130 ft over a single Cat6a cable for long‑reach displays and cleaner installations
- USB 2.0 pass‑through up to 230 ft to support KVM, cameras, touch panels and interactive whiteboards
- RS232 control and bi-directional audio support for centralized AV, security and surveillance system management
- One-way Power over HDBaseT (PoH) eliminates the need for a wall-plate power adapter and simplifies installs
- HDCP 2.2 compliance and multi-channel audio support ensure secure, high-quality playback for commercial deployments
- Slim single‑gang wall-plate transmitter provides a professional, low-profile finish for conference rooms, classrooms and control rooms
| General Information | |
|---|---|
| Brand Name | C2G by Legrand |
| Manufacturer Part Number | C2G31030 |
| Technical Information | |
| Connector on Second End | 4_USB Type-A, DC Power Plug, HDMI, RJ-45 |
| Certifications | |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Certifications | NDAA 889, Prop 65, REACH, RoHS, TSCA |
