JBL Professional CBT 1000E High Output Column Extension Speaker, Black

SKU: CBT-1000E MPN: CBT 1000E JBL Professional
Image of JF-CBT1000E

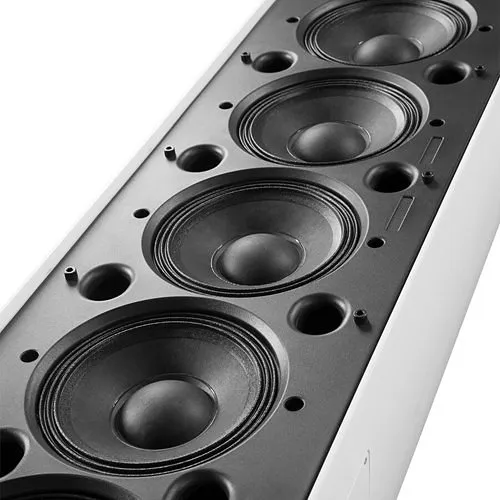

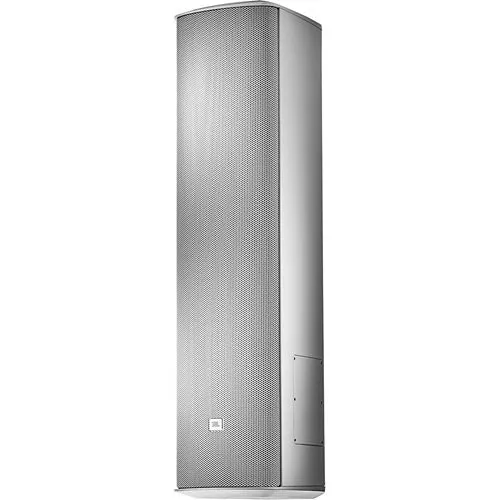

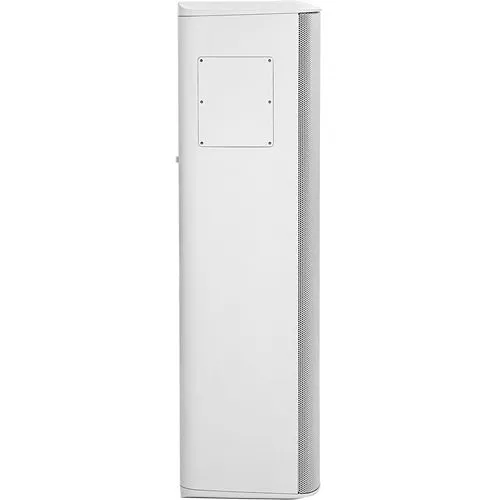

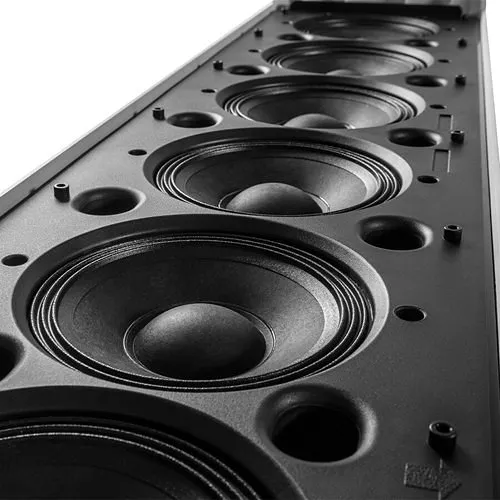

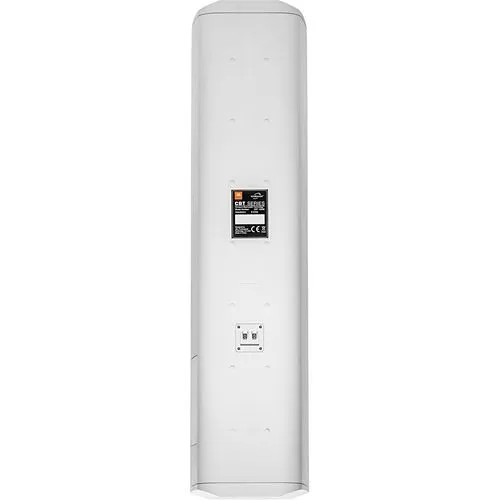

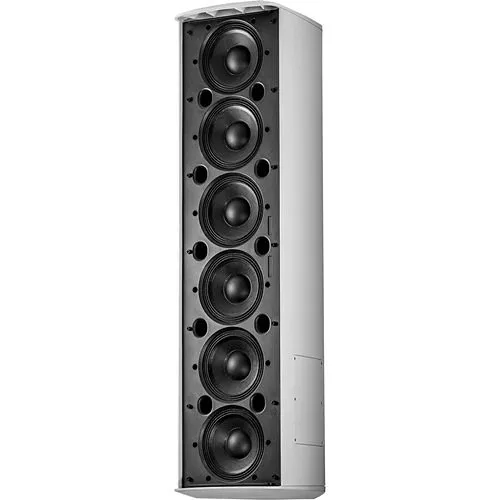

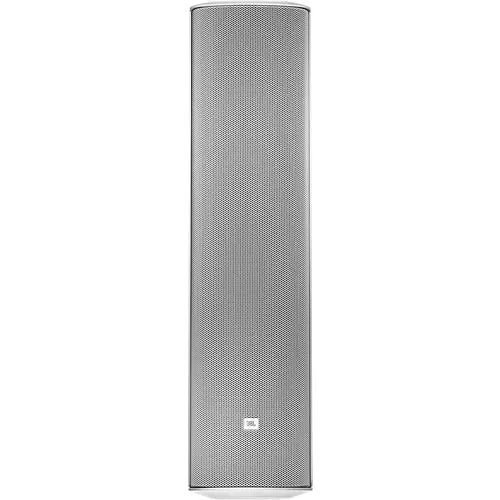

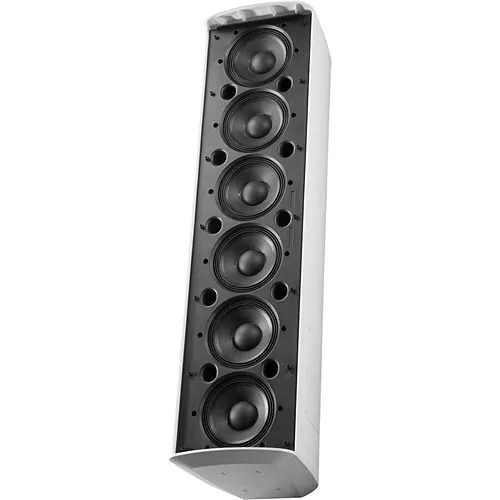

Product images for JBL Professional CBT 1000E High Output Column Extension Speaker, Black. 9 image(s) available. Click on image to view full size.

Key Features

  • Extends bass and overall output when paired with a CBT1000, providing fuller low-end and higher SPL for large venues
  • Consistent vertical coverage using Constant Beamwidth Technology for improved speech intelligibility and even sound across listening areas
  • Doubles system power handling (1500W RMS) to support demanding installations and reduce the need for additional subwoofers
  • Outdoor-rated, salt- and UV-resistant enclosure for durable performance in ports, transit centers, and theme parks
  • Built-in crossover and included coupler plate simplify integration with CBT1000 arrays for faster installation and reliable pattern control

Quick Specifications

Product Model
CBT 1000E
Brand Name
JBL Professional
Product Line
Line Array
Product Name
Line Array CBT 1000E Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Enhance large-venue sound and public-address reliability with the JBL Professional CBT 1000E high-output column extension speaker. Designed to mate with the CBT1000 line-array column, this extension adds extended bass response and elevated sound pressure levels—delivering 1500W RMS of power handling and a wide 38 Hz to 650 Hz frequency range that fills auditoriums, houses of worship, stadium concourses, and transit centers. JBL Professional’s Constant Beamwidth Technology maintains consistent vertical coverage, reducing hot spots and improving intelligibility for speech, paging, security announcements and surveillance monitoring playback. With a 130 dB sensitivity rating and an 8-ohm passive design, the CBT 1000E doubles the effective power handling of the combined array while the purpose-built crossover and included coupler plate streamline setup and tuning. Built for both indoor and outdoor use, its salt- and UV-resistant finish ensures long-term reliability in harsh environments. Ideal for pro audio integrators, facilities managers, and security teams who need dependable coverage and clear, high-output audio—add the CBT 1000E to your CBT1000 array to upgrade coverage and performance today.

Features

  • Extends bass and overall output when paired with a CBT1000, providing fuller low-end and higher SPL for large venues
  • Consistent vertical coverage using Constant Beamwidth Technology for improved speech intelligibility and even sound across listening areas
  • Doubles system power handling (1500W RMS) to support demanding installations and reduce the need for additional subwoofers
  • Outdoor-rated, salt- and UV-resistant enclosure for durable performance in ports, transit centers, and theme parks
  • Built-in crossover and included coupler plate simplify integration with CBT1000 arrays for faster installation and reliable pattern control
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Line Line Array
Product Name Line Array CBT 1000E Speaker
Product Type Speaker
Product Model CBT 1000E
Product Series CBT
Manufacturer Part Number CBT 1000E
Technical Information
Impedance 8 ohms
Sensitivity 130dB
Application/Usage Amusement Park, Auditorium, Cinema, Education, House of Worship, Lecture Hall, Multipurpose, Outdoor, Racetrack, Sports Bar, Transit Center
Audio
Subwoofer Type Passive
RMS Output Power 1500W
Maximum Frequency Response 650 Hz
Minimum Frequency Response 38Hz
Physical Characteristics
Color Black
Depth 13.58"
Width 9.8"
Height 80.3"
Weight 44.09 lb
Durability Salt Resistant, UV Resistant
Product Information
Mount Type Wall Mount
Warranty
Limited Warranty 5-Year
Miscellaneous
Indoor/Outdoor Outdoor
Country of Origin CN
