JBL Professional CBT 1000E High Output Column Extension Speaker, White

SKU: CBT-1000E-WH MPN: CBT 1000E-WH JBL Professional
Image of JF-CBT100EWH

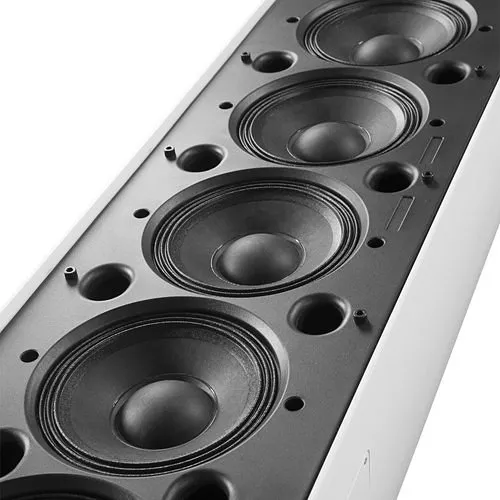

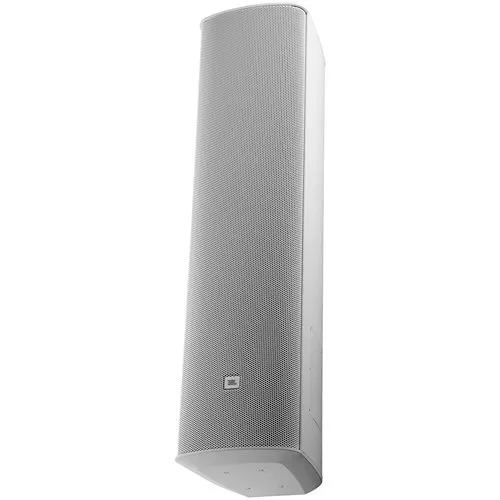

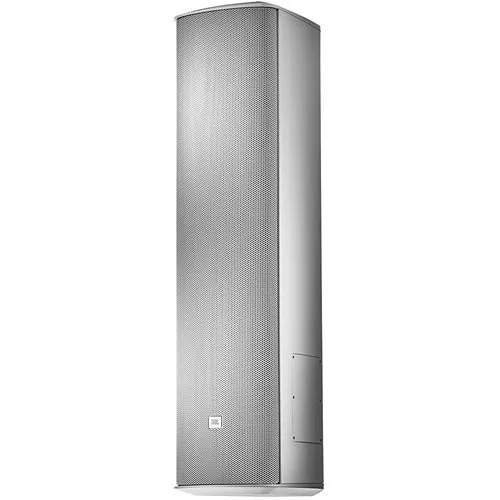

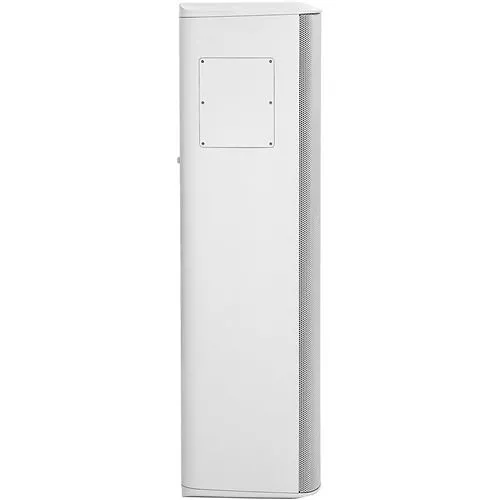

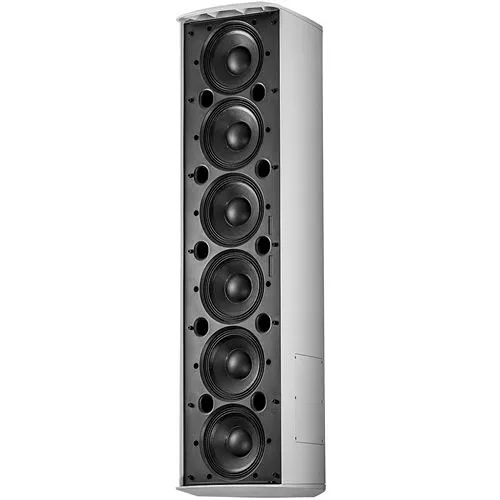

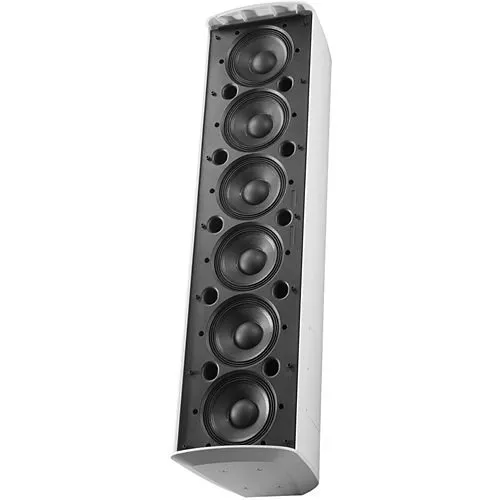

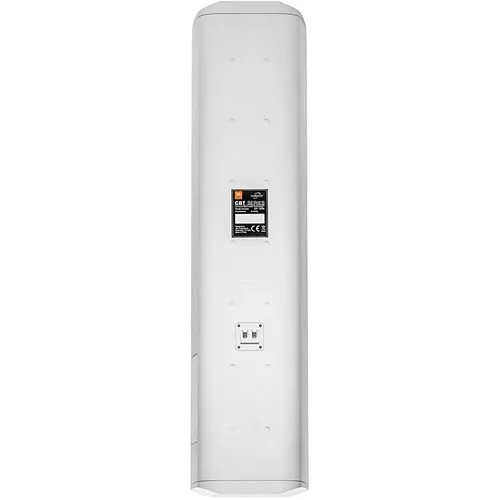

Product images for JBL Professional CBT 1000E High Output Column Extension Speaker, White. 9 image(s) available. Click on image to view full size.

Key Features

  • Extends bass response and SPL for existing CBT1000 arrays, delivering fuller low-end impact across larger venues
  • Tight, consistent vertical coverage with JBL's Constant Beamwidth Technology for predictable sound and fewer coverage gaps
  • Doubles system power handling (1500W RMS) to support higher output and cleaner headroom during peak events
  • Outdoor-rated, wall-mountable column design simplifies installation for transit centers, stadiums and houses of worship
  • Improves audio intelligibility for paging, security announcements and surveillance monitoring in challenging acoustic spaces

Quick Specifications

Product Model
CBT 1000E
Brand Name
JBL Professional
Product Line
Line Array
Product Name
CBT 1000E Current Extension for CBT 1000 Line Array Column Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Extend the reach and impact of your CBT1000 line array with the JBL Professional CBT 1000E column extension speaker. Designed to give installers and system designers greater low-frequency output and more consistent pattern control, this extension delivers the extra SPL and bass needed for large auditoriums, transit hubs, outdoor venues and critical security paging. When paired with a CBT1000, the CBT 1000E leverages JBL's Constant Beamwidth Technology to maintain uniform vertical coverage while minimizing lobing and off-axis nulls — improving speech intelligibility for monitoring, surveillance and live events.

Built for professional installations, the CBT 1000E provides 1500W RMS power handling and a frequency range down to 38 Hz with up to 130 dB sensitivity, giving you the headroom and punch required for demanding applications. The included coupler plate and purpose-designed crossover make system integration seamless, while the white, wall-mountable enclosure blends into architectural installs. Ideal for auditoriums, houses of worship, sports venues and security/monitoring systems — add the CBT 1000E to your CBT1000 array to expand coverage and order or contact sales for a site consultation.

Features

  • Extends bass response and SPL for existing CBT1000 arrays, delivering fuller low-end impact across larger venues
  • Tight, consistent vertical coverage with JBL's Constant Beamwidth Technology for predictable sound and fewer coverage gaps
  • Doubles system power handling (1500W RMS) to support higher output and cleaner headroom during peak events
  • Outdoor-rated, wall-mountable column design simplifies installation for transit centers, stadiums and houses of worship
  • Improves audio intelligibility for paging, security announcements and surveillance monitoring in challenging acoustic spaces
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Line Line Array
Product Name CBT 1000E Current Extension for CBT 1000 Line Array Column Speaker
Product Type Speaker
Product Model CBT 1000E
Product Series CBT
Manufacturer Part Number CBT 1000E-WH
Technical Information
Impedance 8 ohms
Sensitivity 130dB
Application/Usage Amusement Park, Auditorium, Cinema, Education, House of Worship, Lecture Hall, Multipurpose, Outdoor, Racetrack, Sports Bar, Transit Center
Audio
RMS Output Power 1500W
Maximum Frequency Response 650 Hz
Minimum Frequency Response 38Hz
Physical Characteristics
Color White
Depth 13.58"
Width 9.8"
Height 80.3"
Weight 44.09 lb
Product Information
Mount Type Wall Mount
Miscellaneous
Indoor/Outdoor Outdoor
Country of Origin CN
