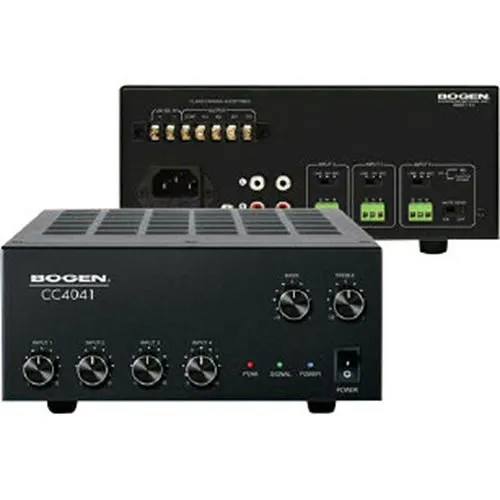

Bogen CC4041 CC Series 40W Compact Mixer-Amplifier, 4-Channel

SKU: CC4041 Bogen

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Bogen CC4041 Amplifier - 40 W RMS
Product images for Bogen CC4041 CC Series 40W Compact Mixer-Amplifier, 4-Channel. 2 image(s) available. Click on image to view full size.

Key Features

  • Delivers 40W of reliable amplification for clear paging and background music in small-to-medium installations
  • Four-input mixer with 3 balanced MIC/Line inputs plus AUX, each with individual volume and phantom power for professional microphone use
  • Priority and audio-activated muting lets security or emergency announcements override background audio when needed
  • Compatible with 70V, 25V, 4Ω and 8Ω speaker systems for flexible deployment across retail, education and surveillance sites
  • Compact, two-rack-space footprint allows side-by-side mounting to maximize rack density and simplify installation

Quick Specifications

Product Model
CC4041
Brand Name
Bogen
Product Name
CC4041 Amplifier
Product Type
Amplifier
View Full Technical Specifications

Product Information Tabs

Overview

Optimize your paging, monitoring and security audio with the Bogen CC4041 40W Compact Mixer-Amplifier. This pro amplifier combines a compact footprint with practical input flexibility so integrators can deliver intelligible announcements and background music across retail, education, healthcare and surveillance environments. The CC4041 provides 40 watts RMS and four inputs (three balanced MIC/Line plus one AUX), each with individual volume control and selectable phantom power for condenser mics — ideal for conference rooms, guard stations and public-address zones. Built-in priority and audio-activated muting ensure critical security or emergency messages take precedence, while compatibility with 70V, 25V, 4-ohm and 8-ohm speaker taps simplifies deployment across different speaker networks. The unit accepts an external 24V DC supply and offers REC output and tone controls to tailor audio for monitoring and CCTV integration. With Bogen reliability and a compact two-space design that fits side-by-side in racks, the CC4041 is a practical choice for contractors and facility managers who need dependable, flexible audio for surveillance, paging and general sound reinforcement. Add it to your next security or PA system project or request a quote today.

Features

  • Delivers 40W of reliable amplification for clear paging and background music in small-to-medium installations
  • Four-input mixer with 3 balanced MIC/Line inputs plus AUX, each with individual volume and phantom power for professional microphone use
  • Priority and audio-activated muting lets security or emergency announcements override background audio when needed
  • Compatible with 70V, 25V, 4Ω and 8Ω speaker systems for flexible deployment across retail, education and surveillance sites
  • Compact, two-rack-space footprint allows side-by-side mounting to maximize rack density and simplify installation
General Information
Brand Name Bogen
Manufacturer Bogen Communications International, Inc
Product Name CC4041 Amplifier
Product Type Amplifier
Product Model CC4041
Product Series CC
Manufacturer Part Number CC4041
Technical Information
Impedance 4 ohms, 8 ohms
Audio Channels 4
Audio
RMS Output Power 40W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 80Hz
Total Harmonic Distortion (THD) 1
Certifications
TAA Compliant No
Physical Characteristics
Depth 10.4"
Width 8.3"
Height 3.5"
Weight 11 lb
Power Description
Input Voltage 24V DC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 40 Watts of output power, Audio-activated muting, Audio-activated muting MIC inputs, Bass and treble controls, External 24V DC supply input, Individual phantom power for MIC inputs, Peak indicator, REC Output, Volume controls for each input
Environmentally Friendly Yes
Environmental Certification RoHS
