VIVOTEK CC9381-HV C-Series 5MP H.265 WDR Pro 180° Panoramic IP Camera, 1.45mm Lens, White, (Replaces CC8371-HV)
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 6

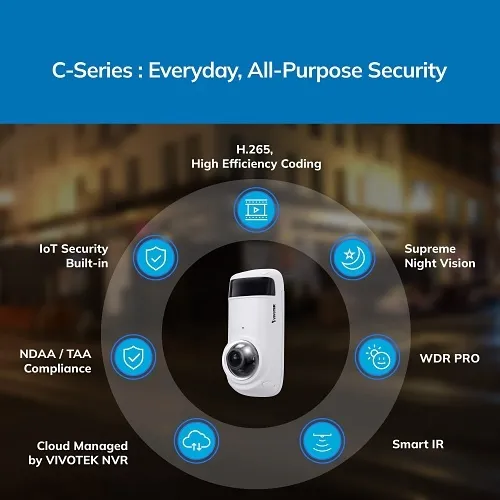

Key Features
- Capture complete scenes with a true 180° horizontal field of view to eliminate blind spots and reduce the number of cameras needed for wide-area monitoring
- Deliver forensic-grade detail with 5MP resolution and up to 30 fps (WDR off) for clear identification and evidence capture
- Cut bandwidth and storage costs using H.265 plus VIVOTEK Smart Stream III—optimizes video up to ~90% versus traditional H.264

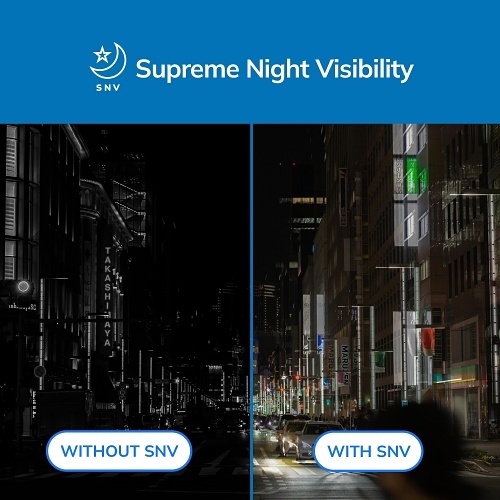

- Ensure 24/7 reliable surveillance with WDR Pro, SNV low-light enhancement and 15 m infrared illuminators for clear night visibility
- Deploy outdoors with confidence: rugged IP66 weatherproof and IK10 vandal-resistant housing for harsh environments and critical infrastructure
- Built-in Trend Micro IoT security and remote management simplify secure, scalable networked surveillance deployments
Quick Specifications
- Product Model
- CC9381-HV
- Brand Name
- VIVOTEK
- Product Name
- 180° Panoramic Network Camera
- Product Type
- Network Camera
Frequently Bought Together
VIVOTEK CC9381-HV C-Series 5MP H.265 WDR Pro 180° Panoramic IP Camera, 1.45mm Lens, White, (Replaces CC8371-HV)
4 items selected
Total: $1,087.18
Explore the details
Product information
CC9381-HV
Overview
For wide-area security and efficient monitoring, the VIVOTEK CC9381-HV panoramic IP camera delivers uninterrupted 180° coverage that eliminates blind spots and lowers system costs. This C-Series Panoramic Network Camera pairs 5MP resolution with H.265 compression and VIVOTEK Smart Stream III to provide high-detail imagery while dramatically reducing bandwidth and storage demands. In challenging lighting, WDR Pro (120 dB) and SNV keep important details visible, and integrated 15-meter IR illuminators provide dependable night-time surveillance. Rugged IP66 and IK10 ratings make the CC9381-HV ideal for outdoor perimeter, parking, campus and transit applications, while Trend Micro IoT security and remote management simplify secure, large-scale deployments. With up to 20 fps at 5MP (30 fps with WDR off) and a compact fisheye design, this camera is a practical choice for integrators and security teams seeking reliable, cost-effective panoramic monitoring. Add the VIVOTEK CC9381-HV to your next project for streamlined installation and continuous site protection—contact our solutions team or order now to upgrade your surveillance coverage.
Features
- Capture complete scenes with a true 180° horizontal field of view to eliminate blind spots and reduce the number of cameras needed for wide-area monitoring
- Deliver forensic-grade detail with 5MP resolution and up to 30 fps (WDR off) for clear identification and evidence capture
- Cut bandwidth and storage costs using H.265 plus VIVOTEK Smart Stream III—optimizes video up to ~90% versus traditional H.264
- Ensure 24/7 reliable surveillance with WDR Pro, SNV low-light enhancement and 15 m infrared illuminators for clear night visibility
- Deploy outdoors with confidence: rugged IP66 weatherproof and IK10 vandal-resistant housing for harsh environments and critical infrastructure
- Built-in Trend Micro IoT security and remote management simplify secure, scalable networked surveillance deployments
| General Information | |
|---|---|
| Brand Name | VIVOTEK |
| Manufacturer | Vivotek, Inc |
| Product Name | 180° Panoramic Network Camera |
| Product Type | Network Camera |
| Product Model | CC9381-HV |
| Product Series | C |
| Manufacturer Part Number | CC9381-HV |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | 180° |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.45mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49.21 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 122°F (50°C) |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.4 mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.45 mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | CC8371-HV |
| Physical Characteristics | |
| Color | White |
| Depth | 2.4" |
| Width | 2.8" |
| Height | 6.3" |
| Weight | 1.08lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Fisheye |
| Product Information | |
| Length | 2.4" |
| Mount Type | Bracket Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Country of Origin | TW |
| Impact Protection Rating | IK10 |
