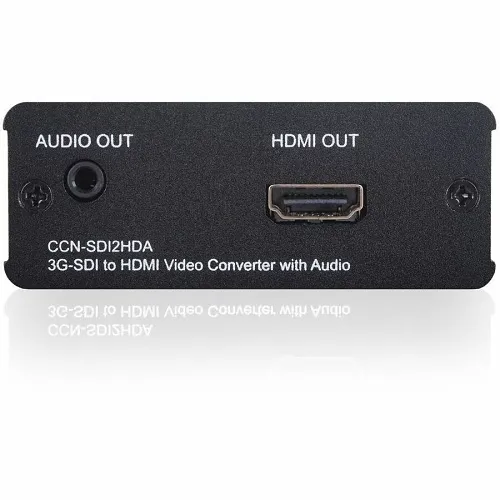

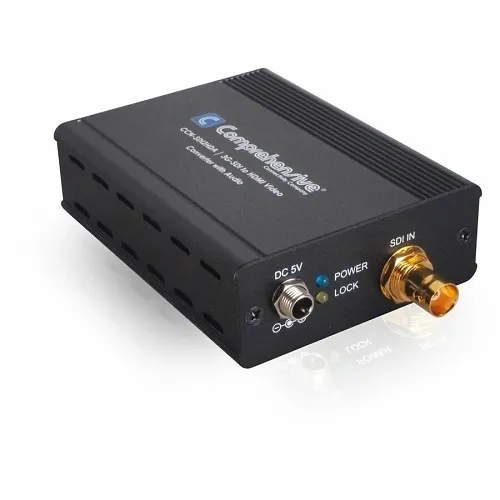

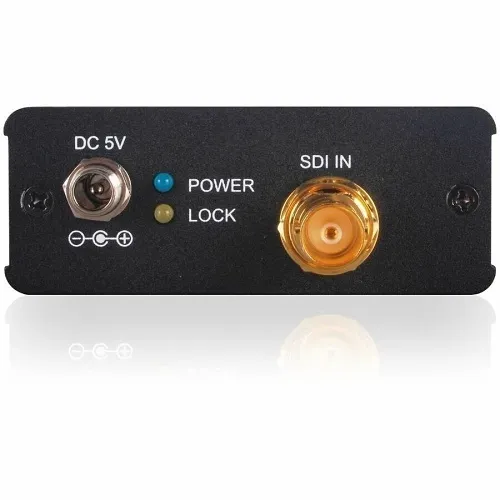

Comprehensive CCN-SDI2HDA Pro AV/IT 3G-SDI to HDMI Video Converter with Audio
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Converts SD/HD/3G-SDI sources to HDMI so legacy broadcast, CCTV or camera feeds display on modern HDMI monitors without complex reconfiguration
- Long-distance SDI support (up to 1000 ft for SD, 656 ft for HD) lets you place cameras and recorders where they’re needed while keeping the monitor local
- Extracts embedded audio to a line output for routing to amplifiers or active speakers—ideal for control rooms and presentation spaces
- Auto-detect SDI format (SD/HD/3G) and plug-and-play operation reduce setup time for AV, security, and broadcast deployments
- Locking PSU and rugged metal enclosure provide reliable, rack-friendly performance for 24/7 surveillance, monitoring, and Pro AV installations
- RoHS-compliant design with a 3-year warranty ensures long-term, compliant operation in professional environments
Quick Specifications
- Product Model
- CCN-SDI2HDA
- Brand Name
- Comprehensive
- Product Name
- Pro AV/IT 3G-SDI to HDMI Video Converter with Audio
- Product Type
- Signal Converter
Product Information Tabs
Overview
Turn SDI camera and broadcast sources into HDMI-ready displays quickly and reliably with the Comprehensive CCN-SDI2HDA Pro AV/IT 3G-SDI to HDMI Video Converter with Audio. Designed for security, surveillance, broadcast and corporate AV applications, this signal converter accepts SD-SDI, HD-SDI and 3G-SDI inputs and outputs up to 1080p HDMI for crisp monitoring and playback. With SDI bitrates up to 2.97 Gbit/s and support for runs up to 1000 ft (SD), you can extend feeds from cameras, DVRs/NVRs or switchers without sacrificing image quality. The built-in audio line-out extracts embedded audio for external speakers or amplifiers—useful in control rooms and meeting spaces. Built with a locking power supply and durable metal enclosure, the CCN-SDI2HDA delivers dependable, rack-ready performance for 24/7 installations. Easy auto-detect and plug-and-play operation minimize setup time for IT and AV teams. Ideal for CCTV monitoring, broadcast labs, classrooms, or conference rooms — add this Comprehensive SDI to HDMI converter to your system to simplify integration and ensure clear video and audio. Order now to upgrade your monitoring workflow.
Features
- Converts SD/HD/3G-SDI sources to HDMI so legacy broadcast, CCTV or camera feeds display on modern HDMI monitors without complex reconfiguration
- Long-distance SDI support (up to 1000 ft for SD, 656 ft for HD) lets you place cameras and recorders where they’re needed while keeping the monitor local
- Extracts embedded audio to a line output for routing to amplifiers or active speakers—ideal for control rooms and presentation spaces
- Auto-detect SDI format (SD/HD/3G) and plug-and-play operation reduce setup time for AV, security, and broadcast deployments
- Locking PSU and rugged metal enclosure provide reliable, rack-friendly performance for 24/7 surveillance, monitoring, and Pro AV installations
- RoHS-compliant design with a 3-year warranty ensures long-term, compliant operation in professional environments
| General Information | |
|---|---|
| Brand Name | Comprehensive |
| Manufacturer | Comprehensive Connectivity Company |
| Product Name | Pro AV/IT 3G-SDI to HDMI Video Converter with Audio |
| Product Type | Signal Converter |
| Product Model | CCN-SDI2HDA |
| Packaged Quantity | 1 |
| Manufacturer Part Number | CCN-SDI2HDA |
| Interfaces/Ports | |
| HDMI | Yes |
| Audio Line Out | Yes |
| Physical Characteristics | |
| Color | Black |
| Depth | 4.9" |
| Width | 3.1" |
| Height | 1.2" |
| Weight | 0.44lb |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
