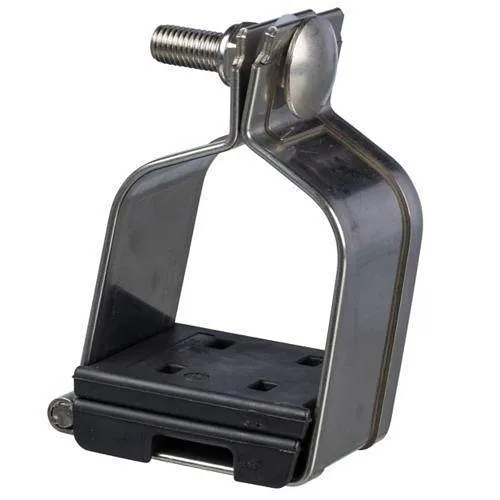

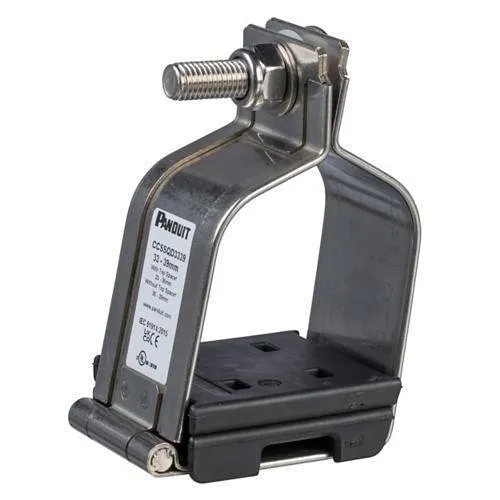

Panduit CCSSQD2226-X Cable Cleat, Stainless Steel, Quad Configuration

Protect mission-critical security, surveillance, and network cabling from short-circuit forces and harsh environments with the Panduit CCSSQD2226-X cable cleat. This stainless steel quad configuration cable cleat is IEC 61914 certified and tested up to 169 kA peak fault current, giving engineers and integrators confidence that cable routes will remain secure during fault conditions. Constructed from 316L stainless steel, the cleat resists corrosion for reliable indoor or outdoor use on cable trays, in substations, and within data centers. It accommodates 22–26 mm cable diameters and includes a removable spacer to simplify installation and ensure proper cable spacing for monitoring and power circuits. Mounting is fast and flexible—attach via a separately sold bracket or directly to tray rungs using a user-supplied M8 bolt. Ideal for electrical contractors, security integrators, and facility managers, the CCSSQD2226-X helps maintain system uptime and protects cabling for surveillance, access control, and critical network infrastructure. Specify or order the Panduit CCSSQD2226-X cable cleat for your next project and ensure durable short-circuit protection and mechanical retention.

• Secures and protects mission-critical cable runs from short-circuit forces and mechanical displacement
• IEC 61914-certified and tested to 169 kA peak fault current for reliable fault containment
• 316L stainless steel construction resists corrosion for long service life in indoor or outdoor installations

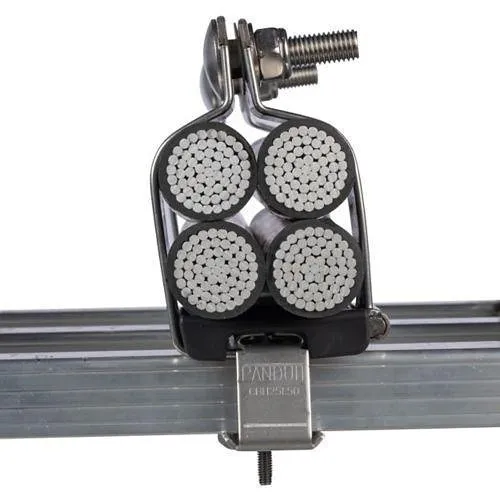

• Fits 22–26 mm cable diameters with removable spacer for flexible installation and cable consolidation

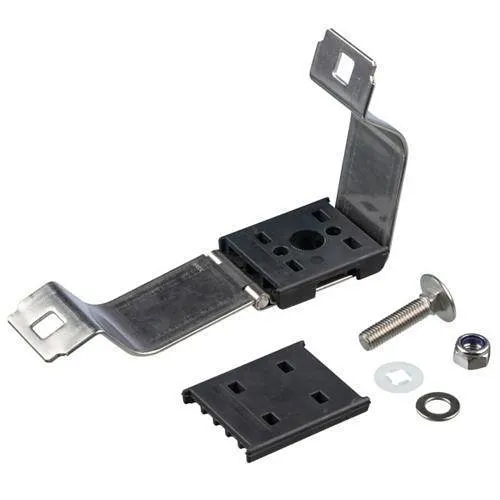

• Installs to cable tray rungs with user-supplied M8 bolt or optional mounting bracket for fast deployment
