C2G CG50226 10' (3m) Select VGA 3.5mm Stereo Audio A/V Cable M/M In-Wall CMG-Rated

SKU: CG50226 C2G by Legrand

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

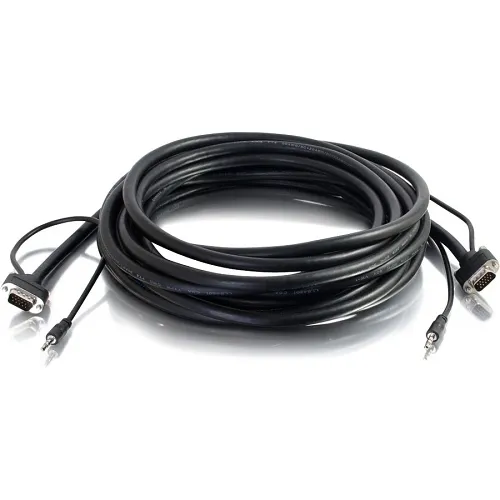

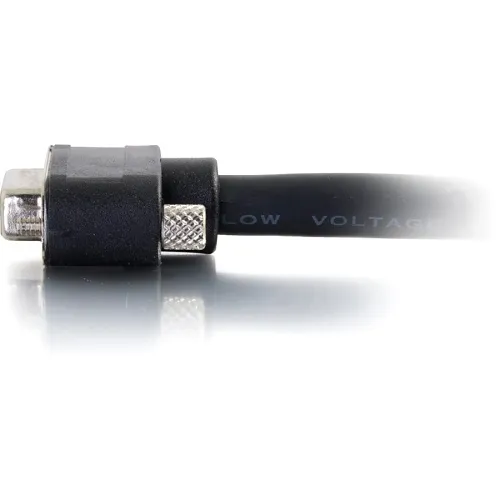

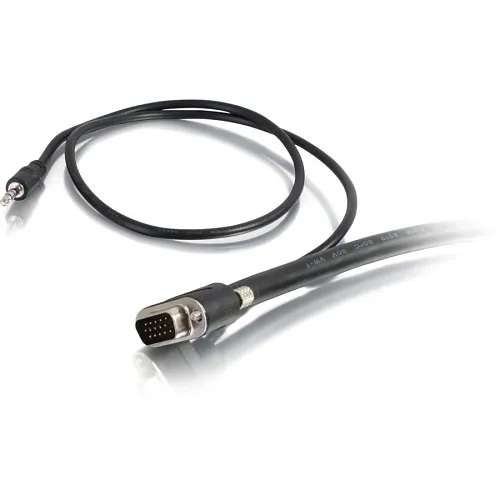

Image of 2D-CG50226
Product images for C2G CG50226 10' (3m) Select VGA 3.5mm Stereo Audio A/V Cable M/M In-Wall CMG-Rated. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable in-wall AV connectivity with CMG-rated jacket for safe, code-compliant installations
  • Delivers crisp video up to 2048x1536 and stereo audio for clear monitoring and surveillance feeds
  • Low-profile connectors and staggered 3.5mm pigtails simplify connections on laptops, projectors and racks
  • All 15 VGA pins wired with DDC2/EDID support to ensure optimal resolution negotiation with displays
  • Lifetime limited warranty and NDAA compliance for secure, long-term commercial deployments

Quick Specifications

Product Model
CG50226
Brand Name
C2G by Legrand
Product Name
10ft Select VGA + 3.5mm A/V Cable M/M
Product Type
A/V Cable
View Full Technical Specifications

Explore the details

Product information

CG50226

Overview

Built for professional AV, security and monitoring environments, the C2G by Legrand Select 10' VGA + 3.5mm A/V cable provides dependable in-wall video and stereo audio connectivity where reliability matters. This A/V cable supports up to 2048 x 1536 resolution and features a CMG-rated PVC jacket for code-compliant commercial and surveillance installations. Low-profile VGA connectors and staggered 3.5mm audio pigtails (24" source, 10" display) make routing into tight projector mounts, rack panels or workstation enclosures faster and neater. All 15 VGA pins are wired and DDC2/EDID compatible, so displays and sources negotiate the best resolution automatically — reducing setup time for monitoring stations and control rooms. With 30 AWG conductors and a design optimized for long-distance signal integrity, this cable is ideal for AV installations, security cameras, monitoring consoles and conference-room displays. Specify the C2G CG50226 for professional-grade in-wall A/V runs — order now for reliable performance in your next surveillance or AV project.

Features

  • Reliable in-wall AV connectivity with CMG-rated jacket for safe, code-compliant installations
  • Delivers crisp video up to 2048x1536 and stereo audio for clear monitoring and surveillance feeds
  • Low-profile connectors and staggered 3.5mm pigtails simplify connections on laptops, projectors and racks
  • All 15 VGA pins wired with DDC2/EDID support to ensure optimal resolution negotiation with displays
  • Lifetime limited warranty and NDAA compliance for secure, long-term commercial deployments
24 of 24 specifications
Technical specifications for C2G CG50226 10' (3m) Select VGA 3.5mm Stereo Audio A/V Cable M/M In-Wall CMG-Rated
General Information
Brand Name C2G by Legrand
Manufacturer Legrand Group
Product Name 10ft Select VGA + 3.5mm A/V Cable M/M
Product Type A/V Cable
Country of Origin CN
Manufacturer Part Number CG50226
Technical Information
Cable Type Mini-phone, VGA
Jacket Type CMG
Device Supported Audio/Video Device, Monitor, Notebook
American Wire Gauge 30AWG
Connector on First End Stereo Male, VGA Male
Connector on Second End Stereo Male, VGA Male
Certifications
TAA Compliant No
NDAA Compliant Yes
Media & Performance
Data Transfer Rate 5.40Gbps
Physical Characteristics
Color Black
Weight 0.83lb
Cable Length 10.00'
Jacket Material PVC
Video
Maximum Resolution 2048 x 1536
Warranty
Limited Warranty Lifetime
Miscellaneous
Features Bendable, Display Data Channel (DDC) Compatible, Extended Display Identification Data (EDID)
Environmentally Friendly Yes
Environmental Certification REACH, ROHS, Prop 65, TSCA, NDAA 889
